Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

Duvar Ayaklığı için Windows Ekran Braketinin parça numarası nedir?

Bu makale, Wallaby standı için Windows Ekran Braketi'nin parça numarasını sağlar

Wallaby Self-Service Stand ile birlikte gönderilen Windows Ekran Braketi'nin parça numarası ve açıklaması:
E244791: KIT-BRKT-SELF-SERVICE-15-22-WIN-2.0

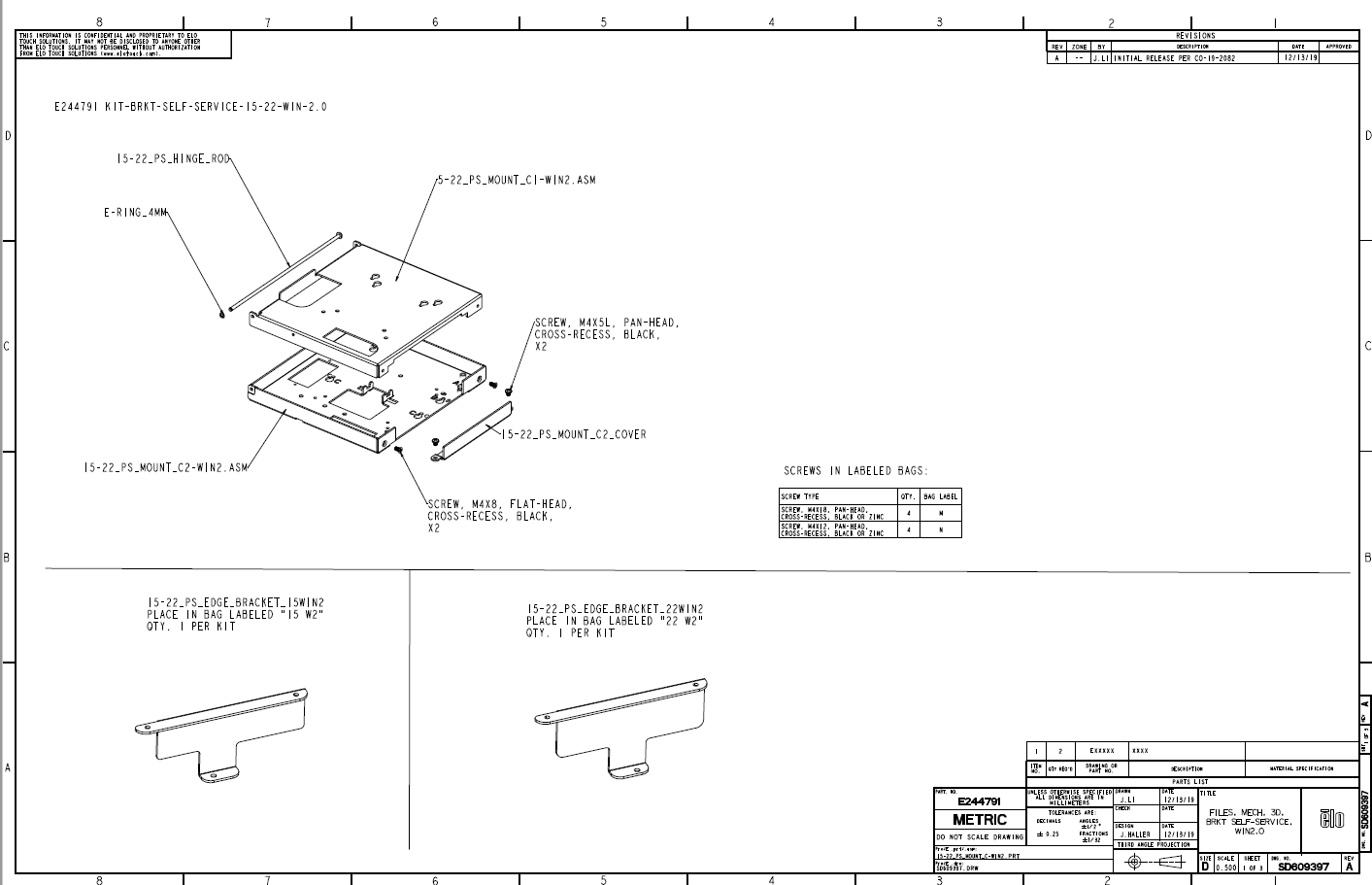

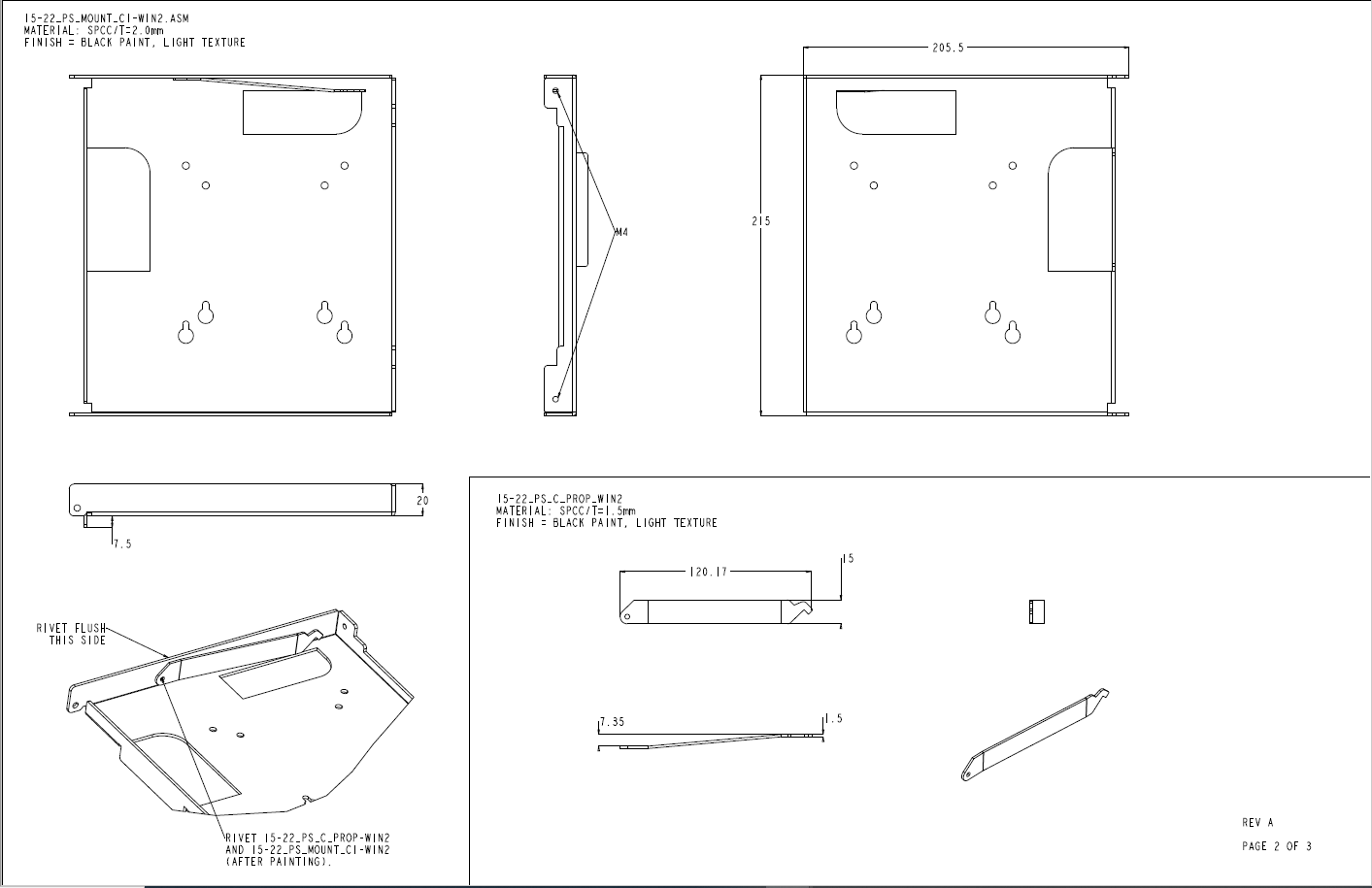

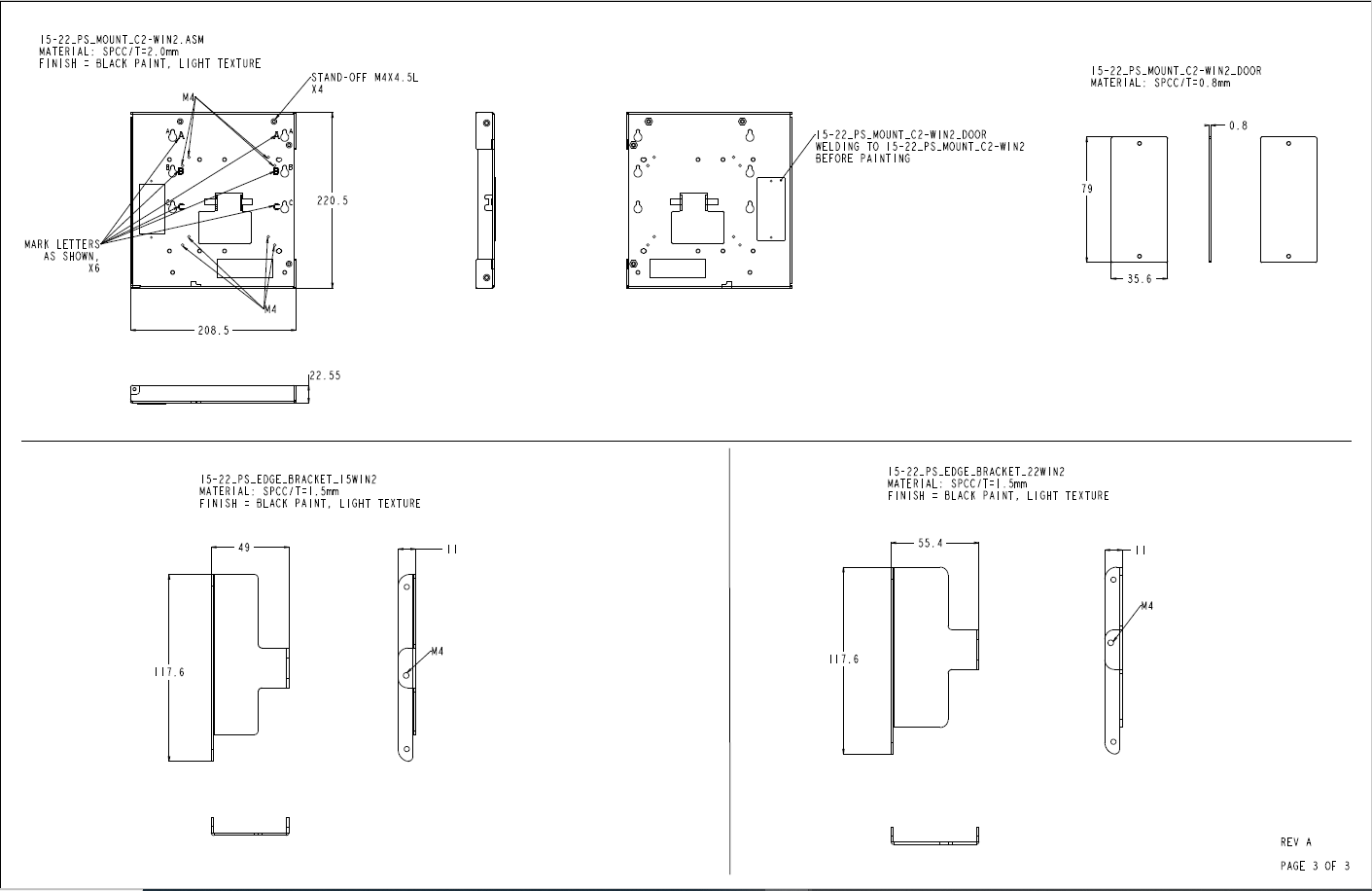

Aşağıdaki çizime bakınız:



Yukarıdaki çizimler bu KB'ye .pdf formatında eklenmiştir.
