Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

EloPOS birimleri için RJ45'ten DB9'a kablonun pin dizilimini nerede bulabilirim?

Bu makale, EloPOS üniteleri ile birlikte kutuda bulunan RJ45'ten DB9 kablosunun pin düzenini tarif etmektedir

Parça Tanımı: 5K.47T20.501: KABLO RJ45-RS232 900MM EA15PA0-1

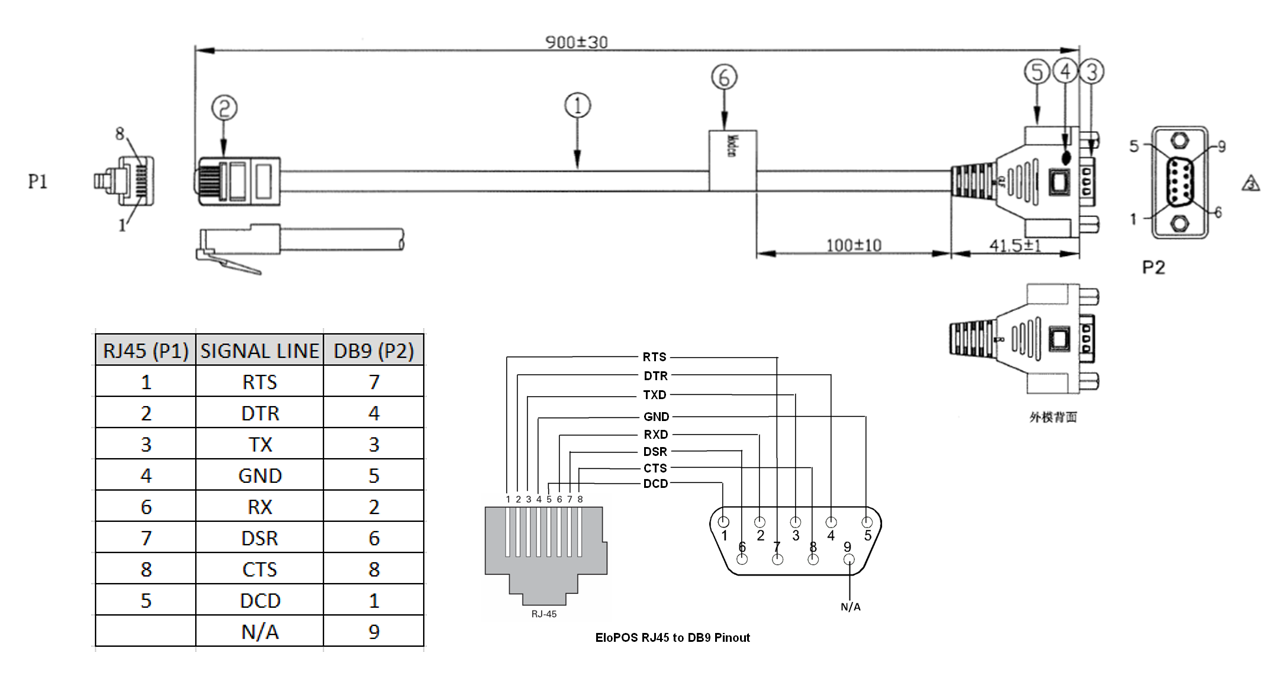

EloPOS RJ45'tan DB9'a Pin Düzeni

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
