E196292, X-Series RS232'dan DB9 Kablosunun pin konfigürasyonunu nerede bulabilirim?

Bu makalede E196292, X-Serisi RS232 ile DB9 Kablosunun pin çıkışları bulunmaktadır



Aşağıda P/N: E196292, X-Serisi RS232 ile DB9 Kablosu için şemalar ve pin çıkışları bulunmaktadır.

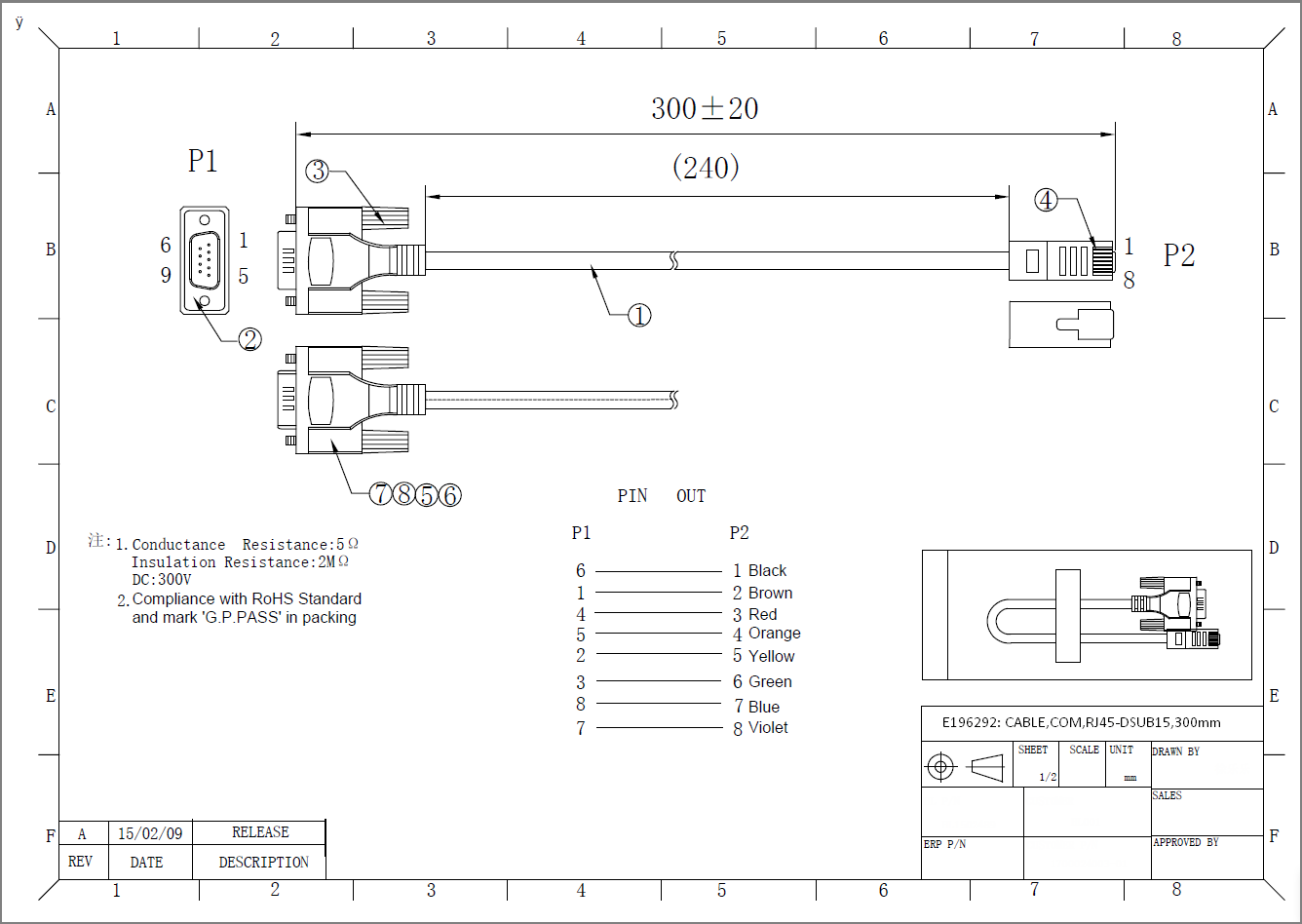

E196292 KABLO,COM,RJ45-DSUB15,300mm.png

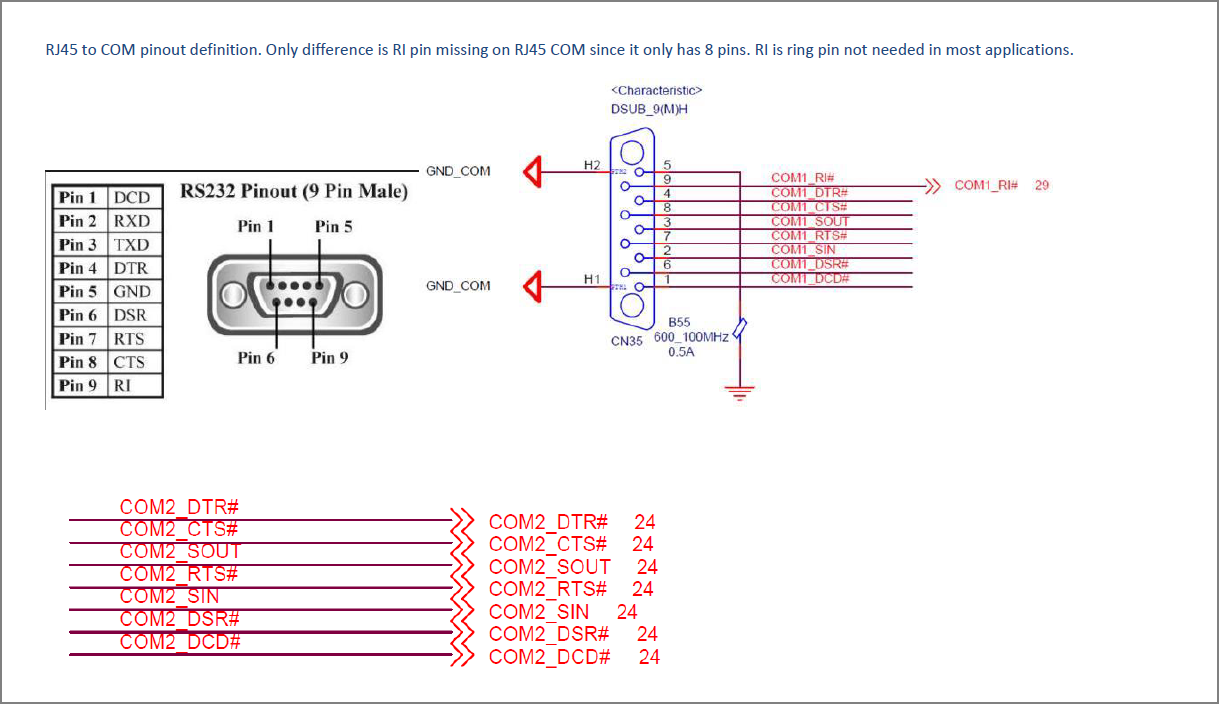

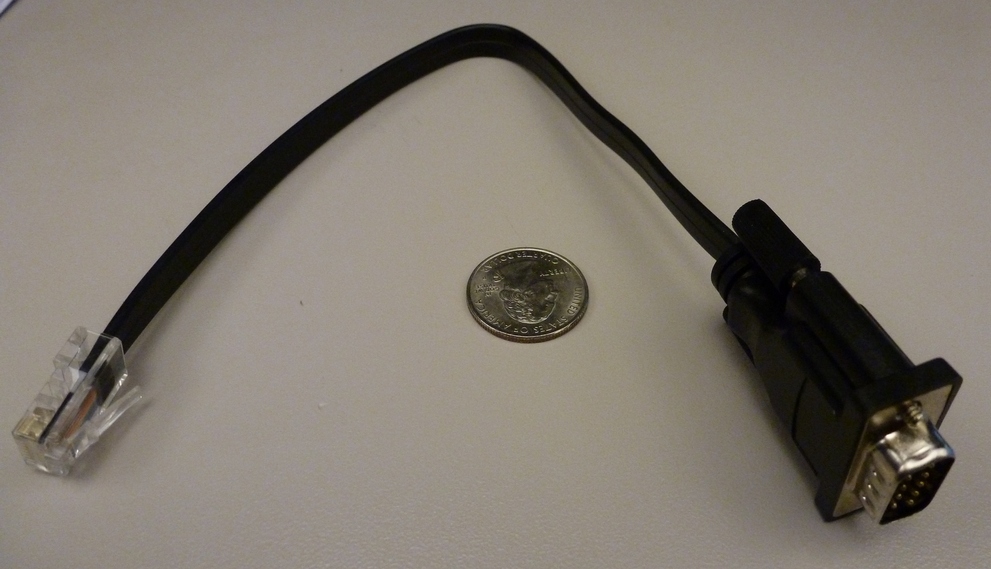

E196292 KABLO,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Kablo.jpg
