Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

E075614, 0700L için USB Y-Kablo (Geçersiz) hakkında bilgiyi nerede bulabilirim?

Bu makale, Elo P/N: E075614, 0700L monitör için USB Y-Kablo hakkında daha fazla bilgi sağlar

Aşağıda, Elo P/N: E075614, 0700L monitör için 8 fit USB Y-Kablo (artık geçersiz) hakkında bilgiler bulunmaktadır.

Parça Numarası & Açıklama

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5 Meter Y-Kablo 0700L için
  • Not: 0700L'ye takılan uç konektör Mini-USB'dir

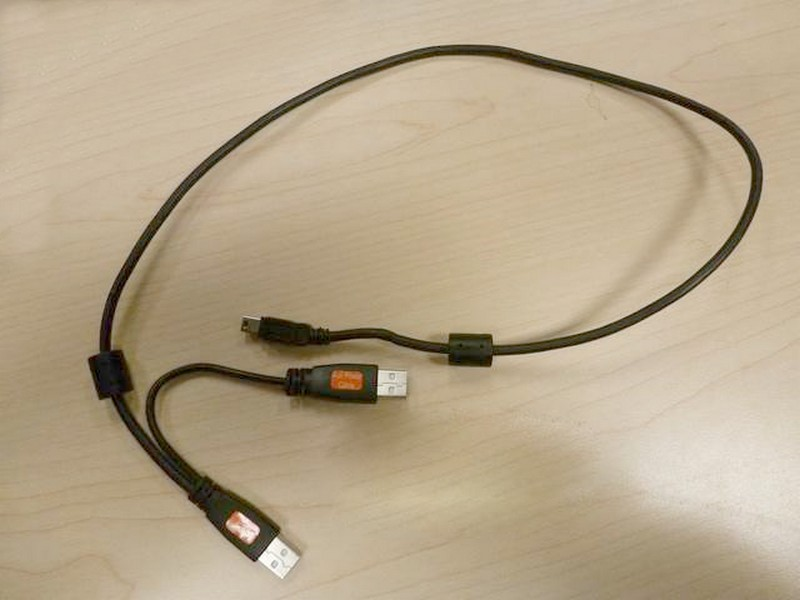

Fotoğraf

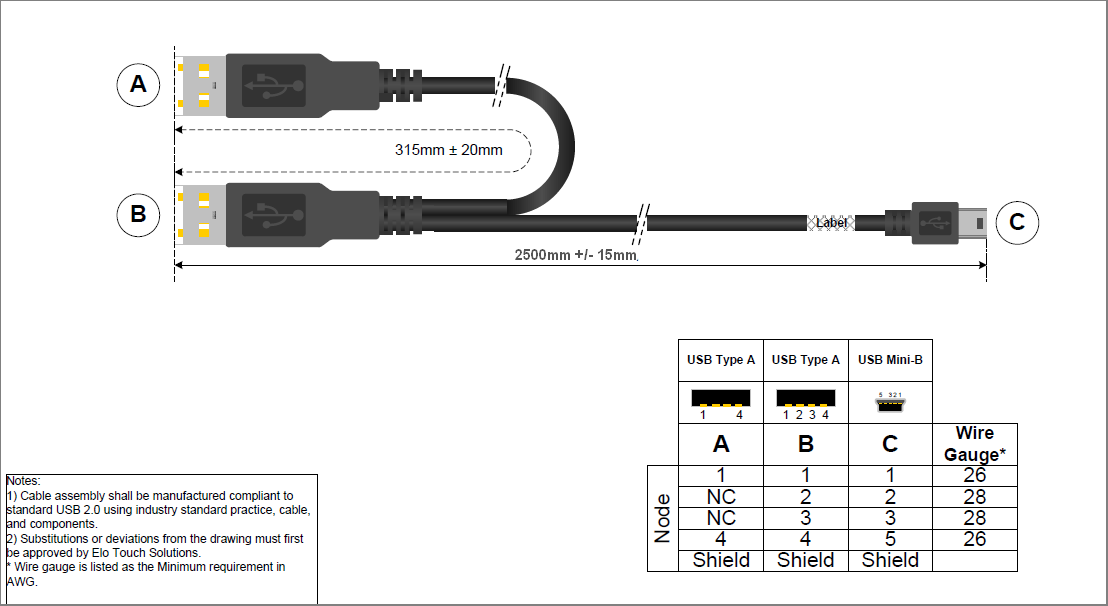

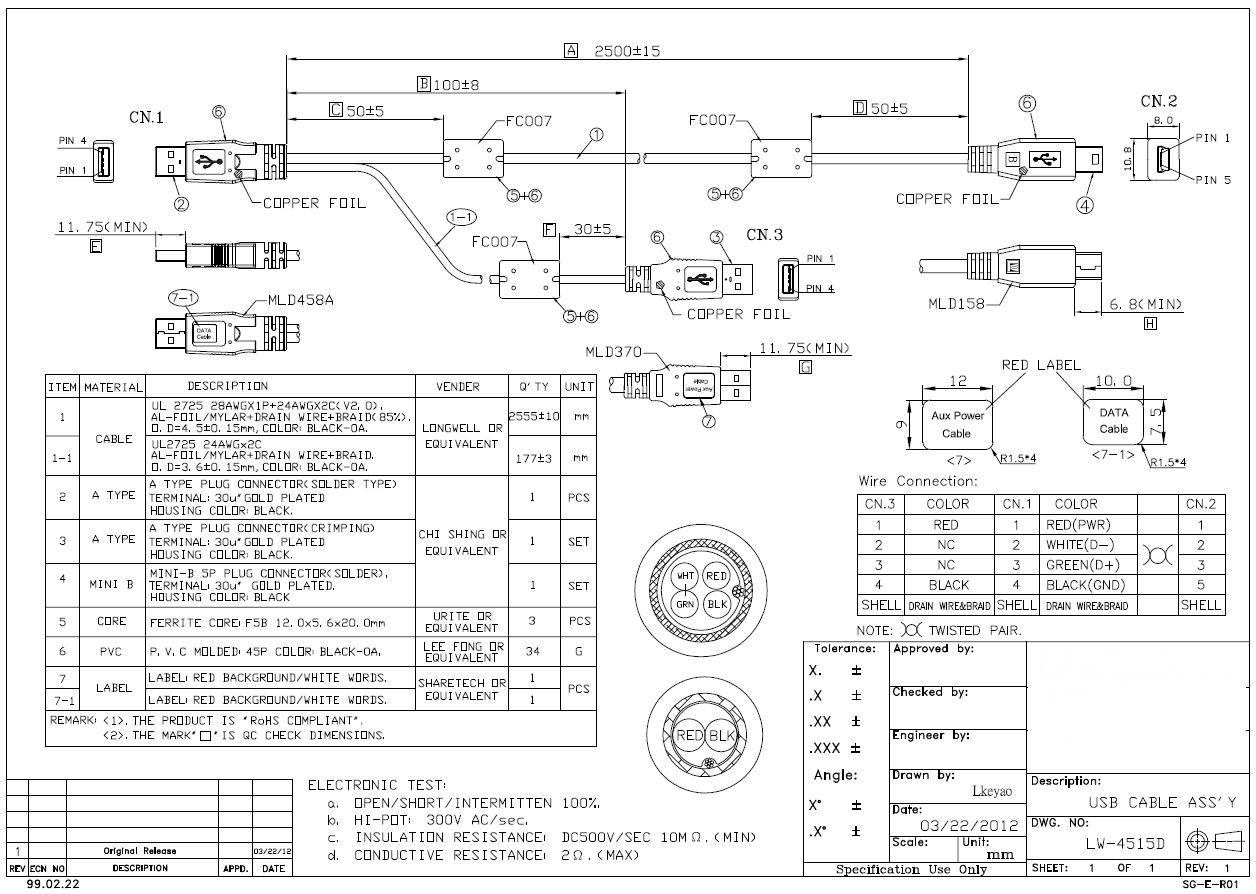

Çizim
