Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

E143088 Duvar Montaj Kiti için Boyutsal Çizimleri nereden bulabilirim?

Bu makale E143088 Duvar Montaj Kiti için boyutsal çizimleri sağlar

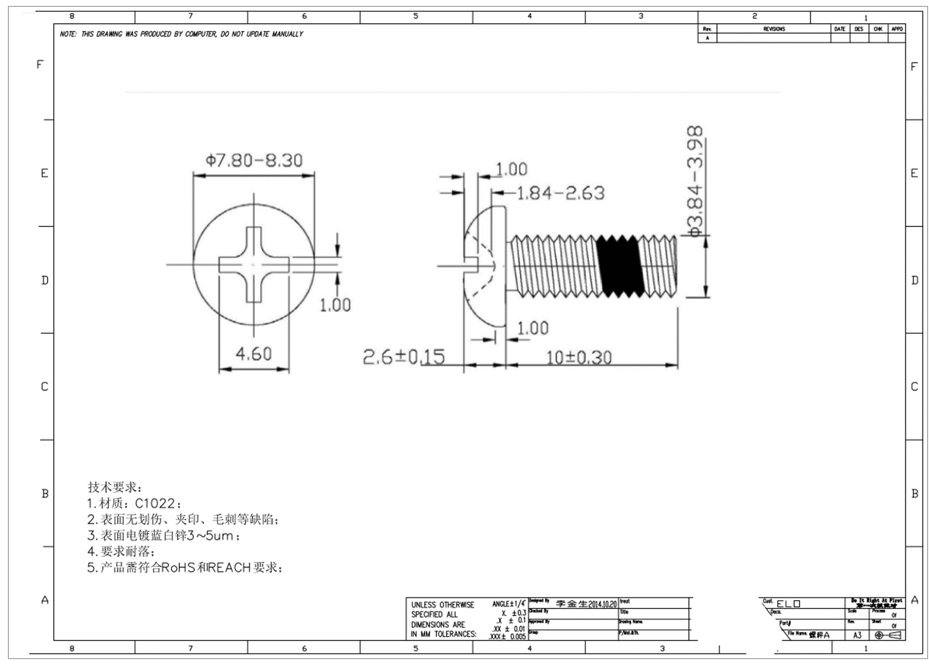

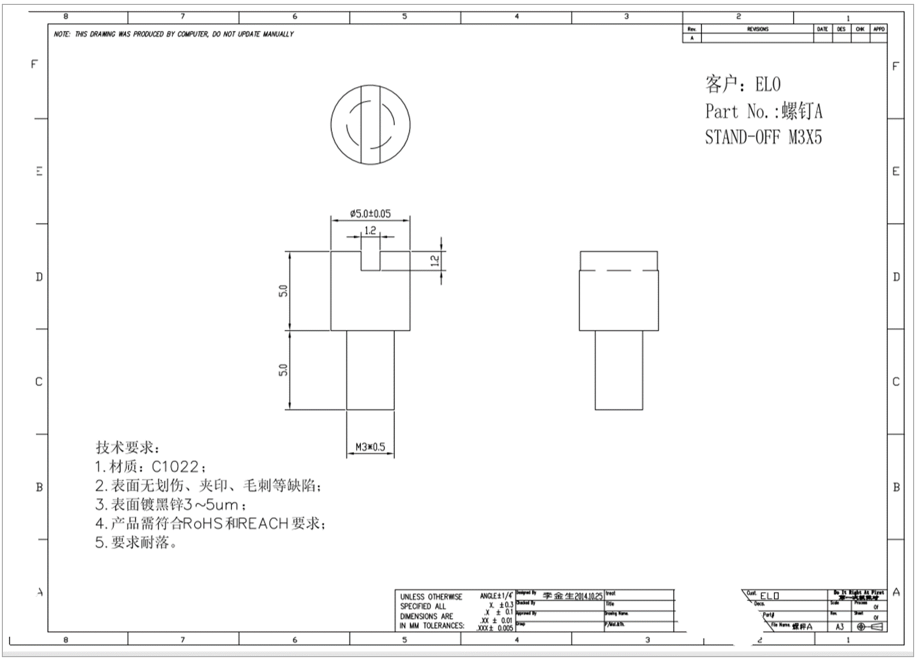

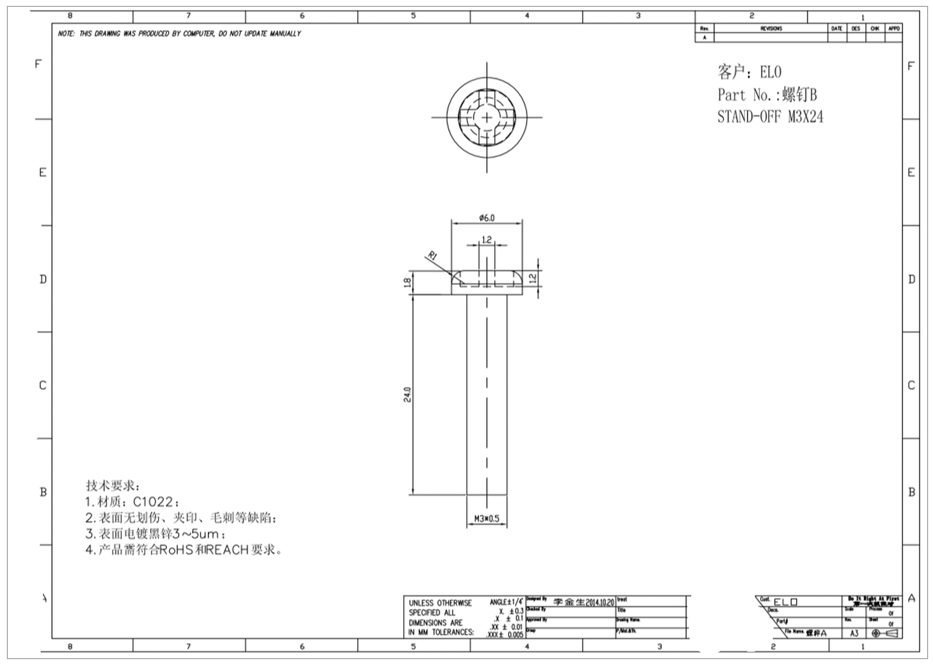

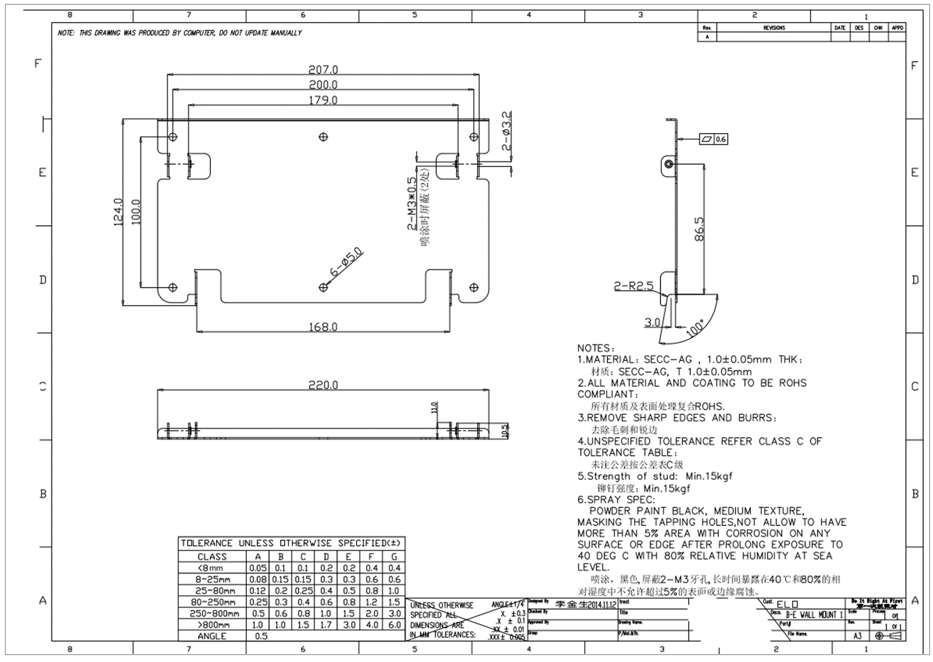

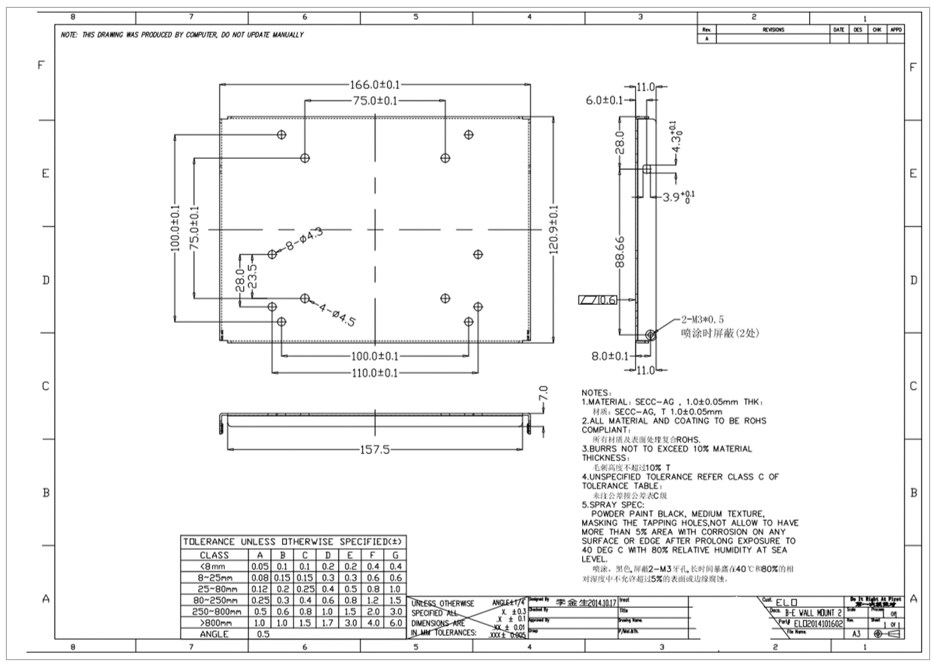

Aşağıda, E-I-X-Serisi Intel-Windows tabanlı hepsi bir arada dokunmatik bilgisayarlar için E143088 Duvar Montaj Kiti'nin boyutsal çizimlerini görebilirsiniz.




Yukarıdaki çizimlerin .pdf paketini buradan indirebilirsiniz.
