E579652: Elo 19 İnç Rack Mount Braket hakkında bilgileri nerede bulabilirim?

Bu makale E579652: Elo 19 İnç Rack Mount Braketi hakkında bilgi sağlamaktadır.

Aşağıda Elo P/N:E579652: Elo 19 İnç Rack Mount Braketi hakkında bilgi bulunmaktadır
Parça Açıklaması: ELO-19INCHRACKMOUNT-BKT-R

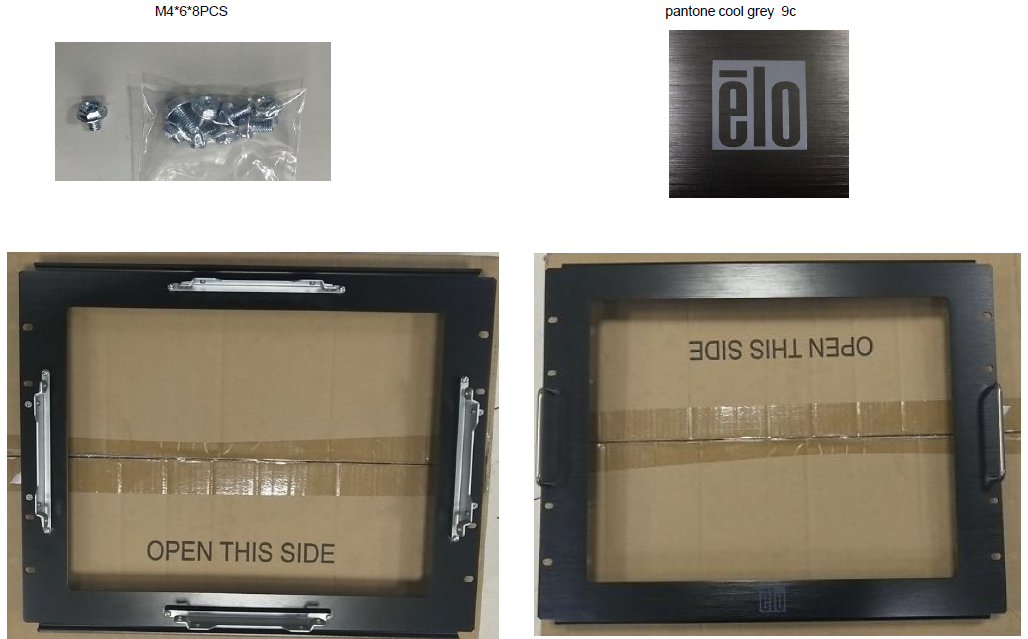

Kit İçeriği:

  • 1 x Montaj braketleri ve önceden takılmış kulplarla birlikte 19 inç Rack Mount Braketi
  • 8 x M4x6 montaj vidaları

Uyumluluk:
Bu rack mount braket yalnızca Elo 1937L (üretimi durdurulmuş), 1939L (üretimi durdurulmuş), 1990L, 1991L Açık Çerçeve Monitörleri ile IntelliTouch, AccuTouch, SecureTouch ve Bezeled PCAP teknolojileriyle uyumludur. Bu braketi Zero-Bezel PCAP modelleri ile uyumlu DEĞİLDİR.

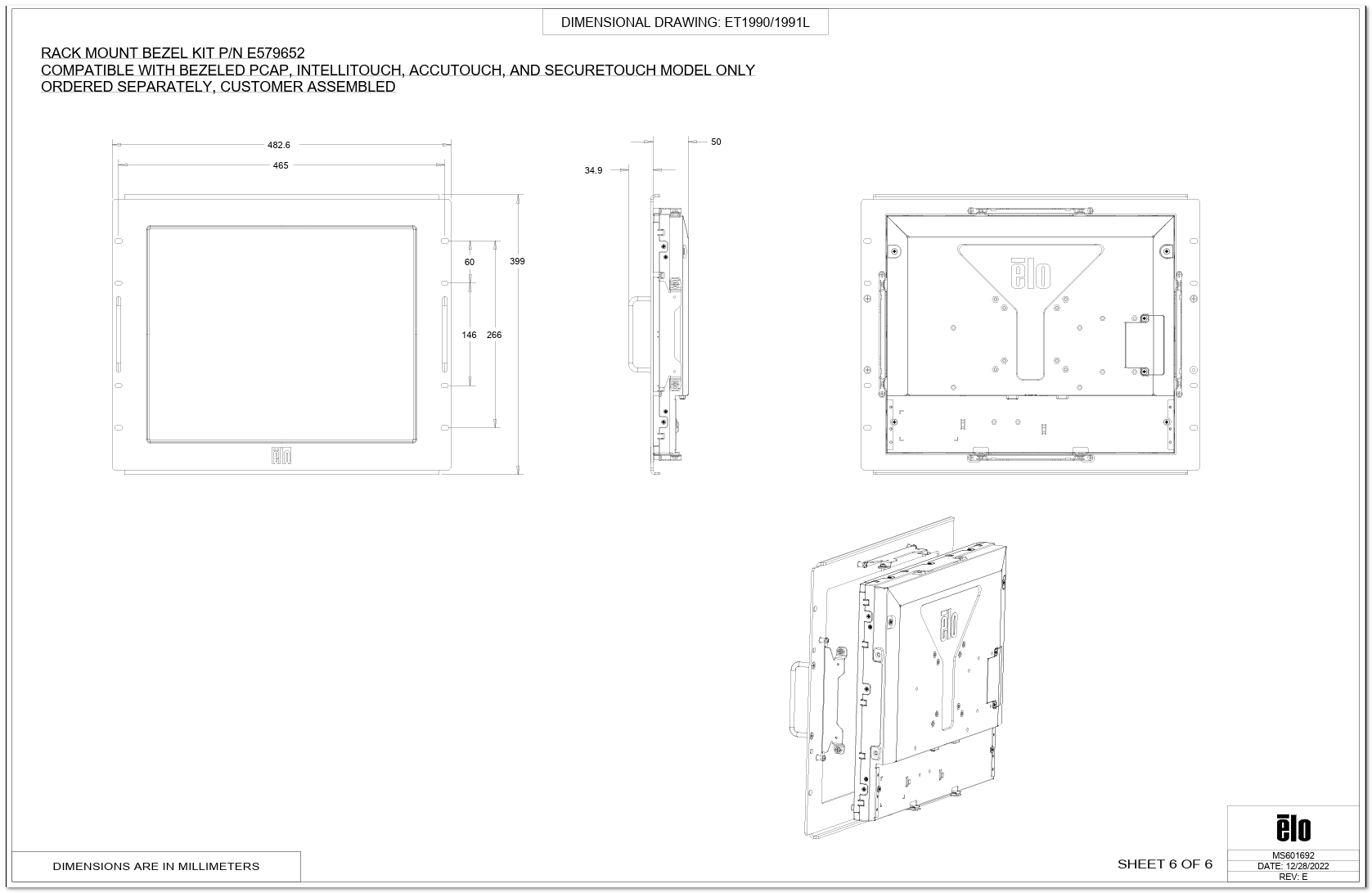

Çizim
