E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M hakkında bilgileri nerede bulabilirim?

Bu makale E214282 hakkında bilgi sunmaktadır: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Aşağıdaki bilgiler Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M için geçerlidir.

Teknik Özellikler:

  • TypeC kablosu için USB üzerinden güç, kablo üzerinde üç tip fiş içerecektir.
    • Bir (P1) taraf standart Powered USB erkek fişi olmalıdır.
    • Diğer taraf USB TypeC (P2) ve DC soketi 12V(P3) olmalıdır.
    • Kablo 3.0 m uzunluğunda, siyah olmalıdır.

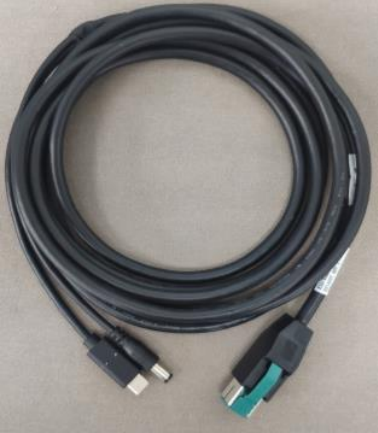

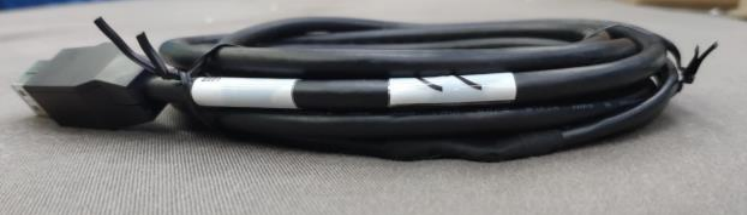

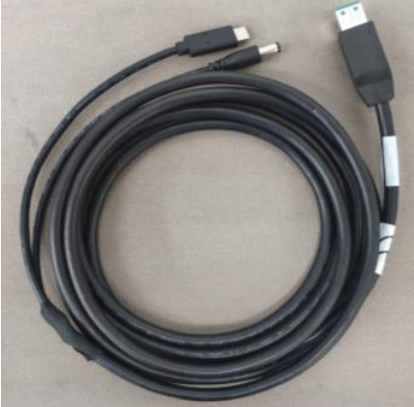

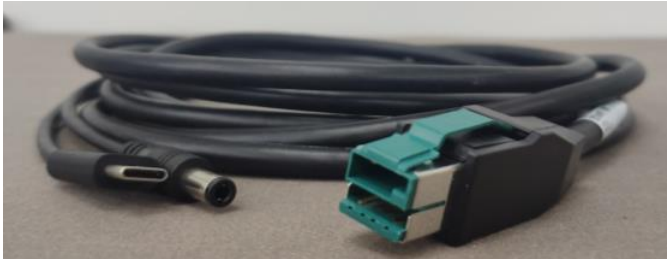

Fotoğraflar
