E462672 Elo 2293L-2294L Rack montaj Bezel kiti hakkında bilgileri nerede bulabilirim?

Bu makale E462672 Elo 2293L-2294L Rack montaj Çerçevesi hakkında bilgi sağlamaktadır

E462672 Elo 2293L-2294L Rack montaj Çerçevesi, yalnızca intelliTouch, SecureTouch, AccuTouch versiyonları için uygundur. Bu braket, 12U Rack Alanı gerektirir.

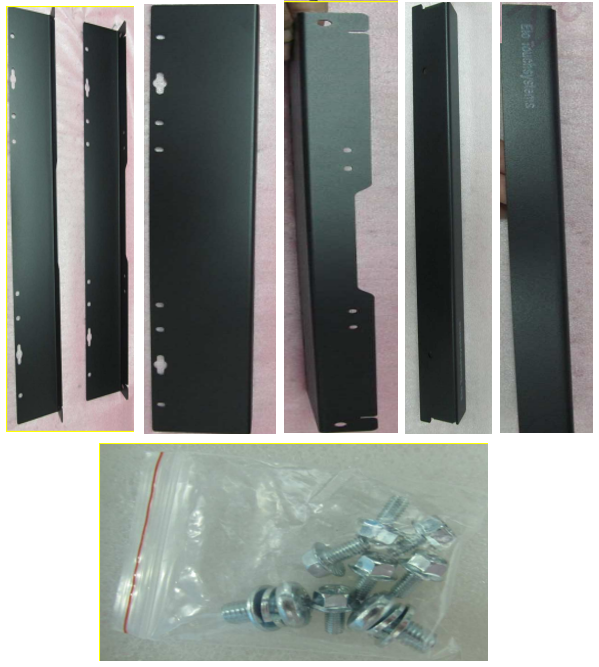

Kit İçeriği:

  • 1x BRACKET, ALT RACK MONTAJ
  • 2x BRACKET, YAN, RACK MONTAJ
  • 4x SCR, PHIL, PNHD W/CAPT WHRS, M6X12L-R
  • 4x SCR, HXHD, PHIL, DIŞKENARLI, M4X

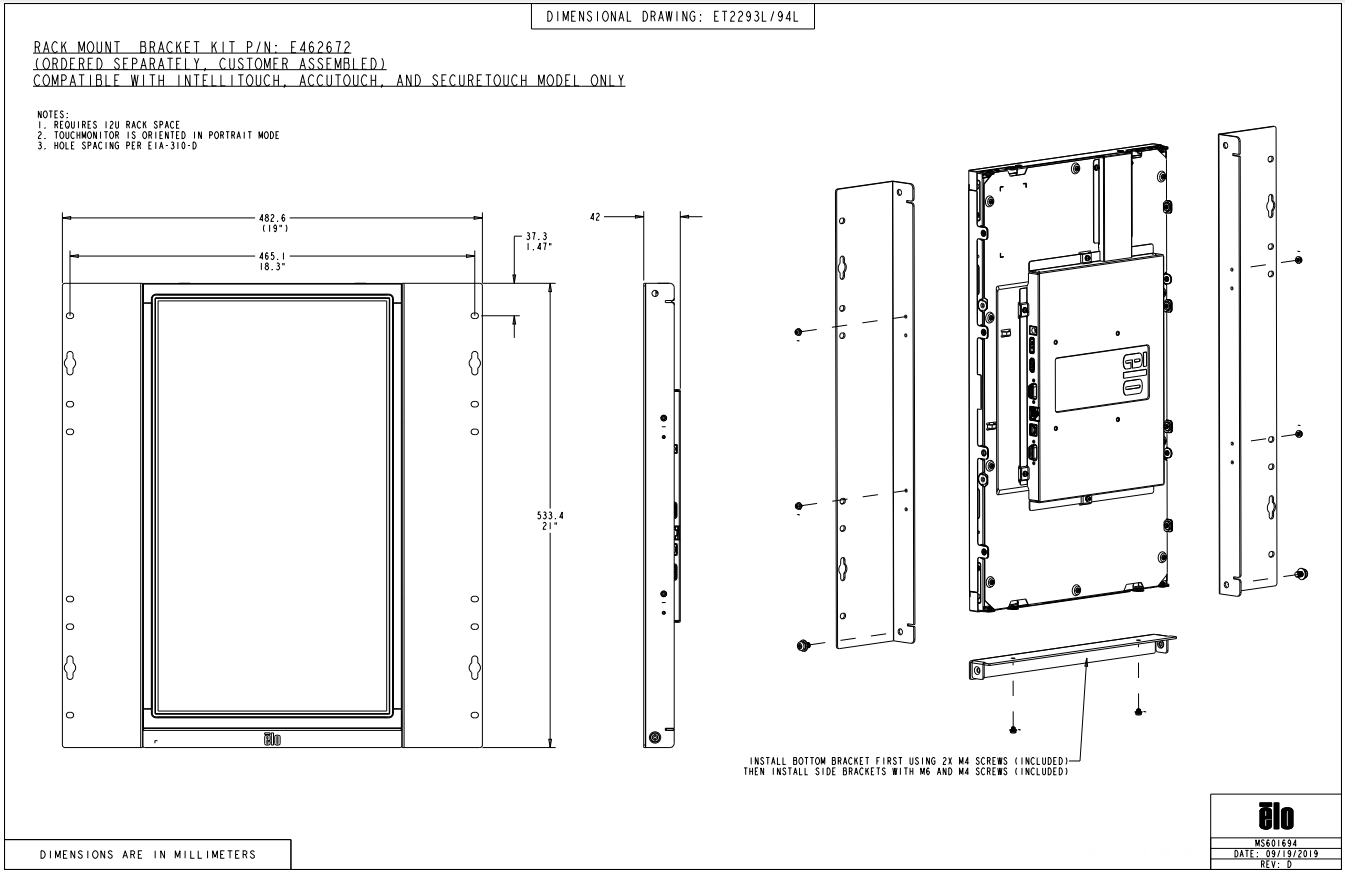

Çizim ve Montaj
