Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

E763022 ve E752302, 12V Güçlü USB Y-Kabloları hakkında bilgileri nereden bulabilirim?

Bu makale, Elo 1002L ve 1502L dokunmatik monitörler için şu anda satılan 12V Güçlü USB Kabloları hakkında bilgi vermektedir.

Parça Numaraları ve Açıklamalar:

  • E763022: Kablo, USB 12V Pwd, 3M, 12V güçlü USB Y-kablo 3m
  • E752302: Kablo, pUSB 12V 2.5mm 1.8m, Elo 12V güçlü USB Y-kablo 1.8m

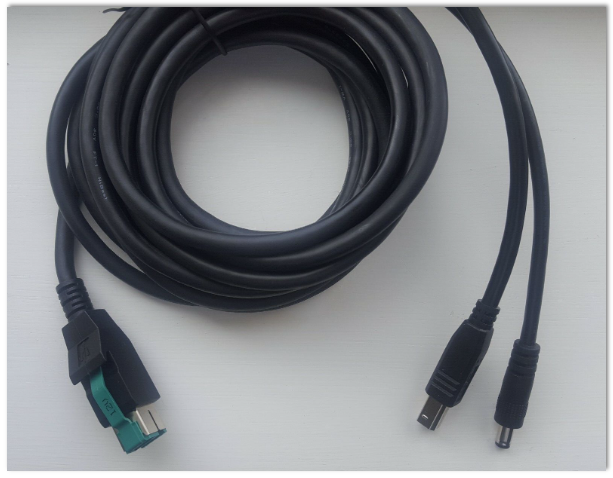

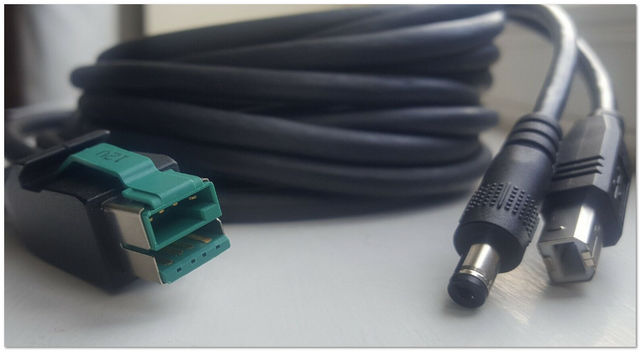

Fotoğraflar (3m kablo gösterilmektedir. 1.8m, kablo uzunluğu dışında aynıdır).

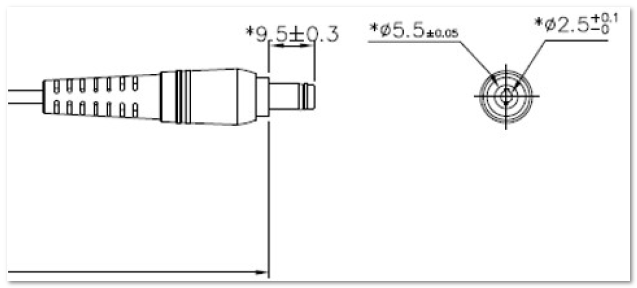

12V DC çıkışı için 5.5mm x 2.5mm Silindirik konektörün pin dizilimi
