Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

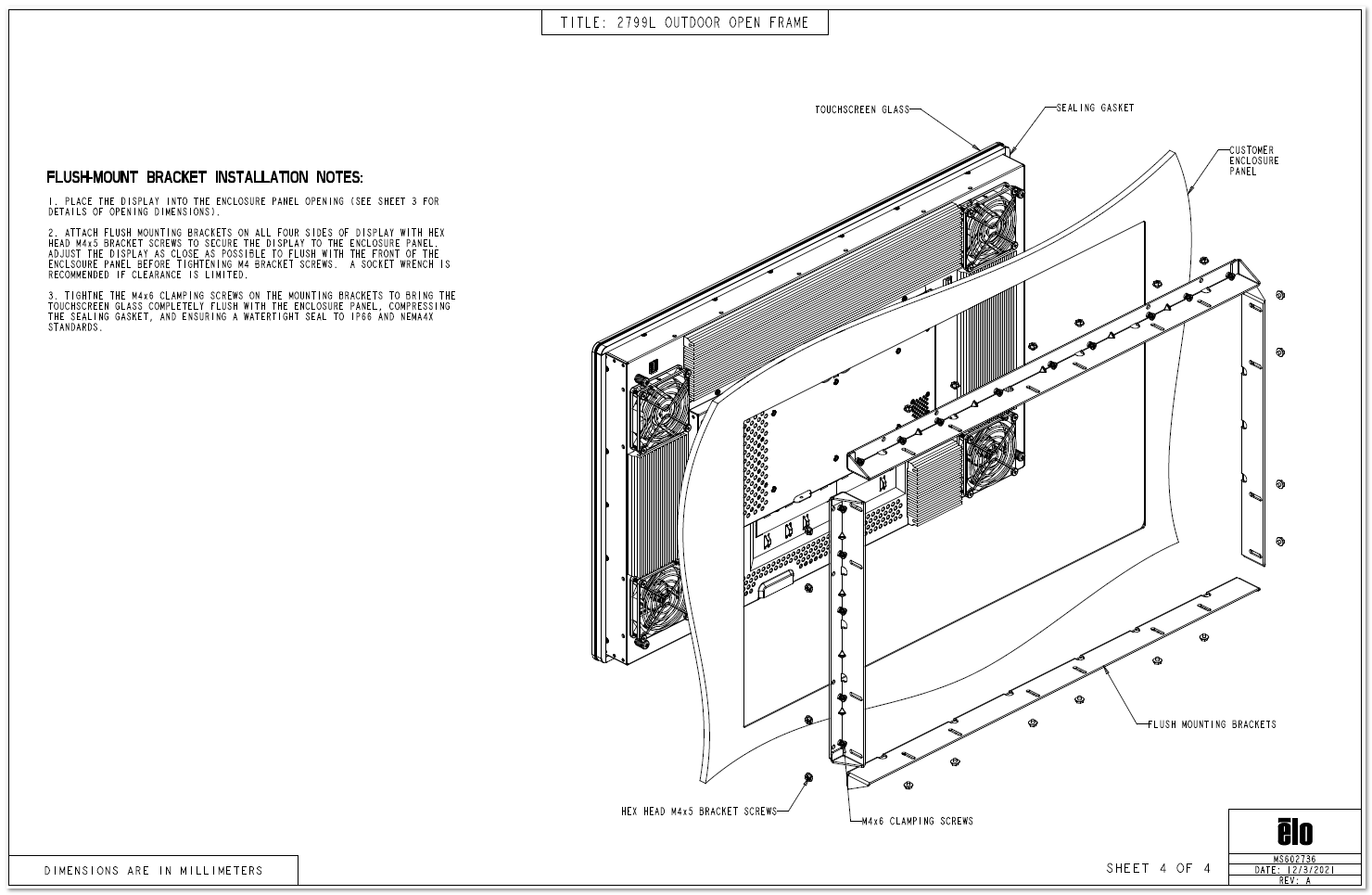

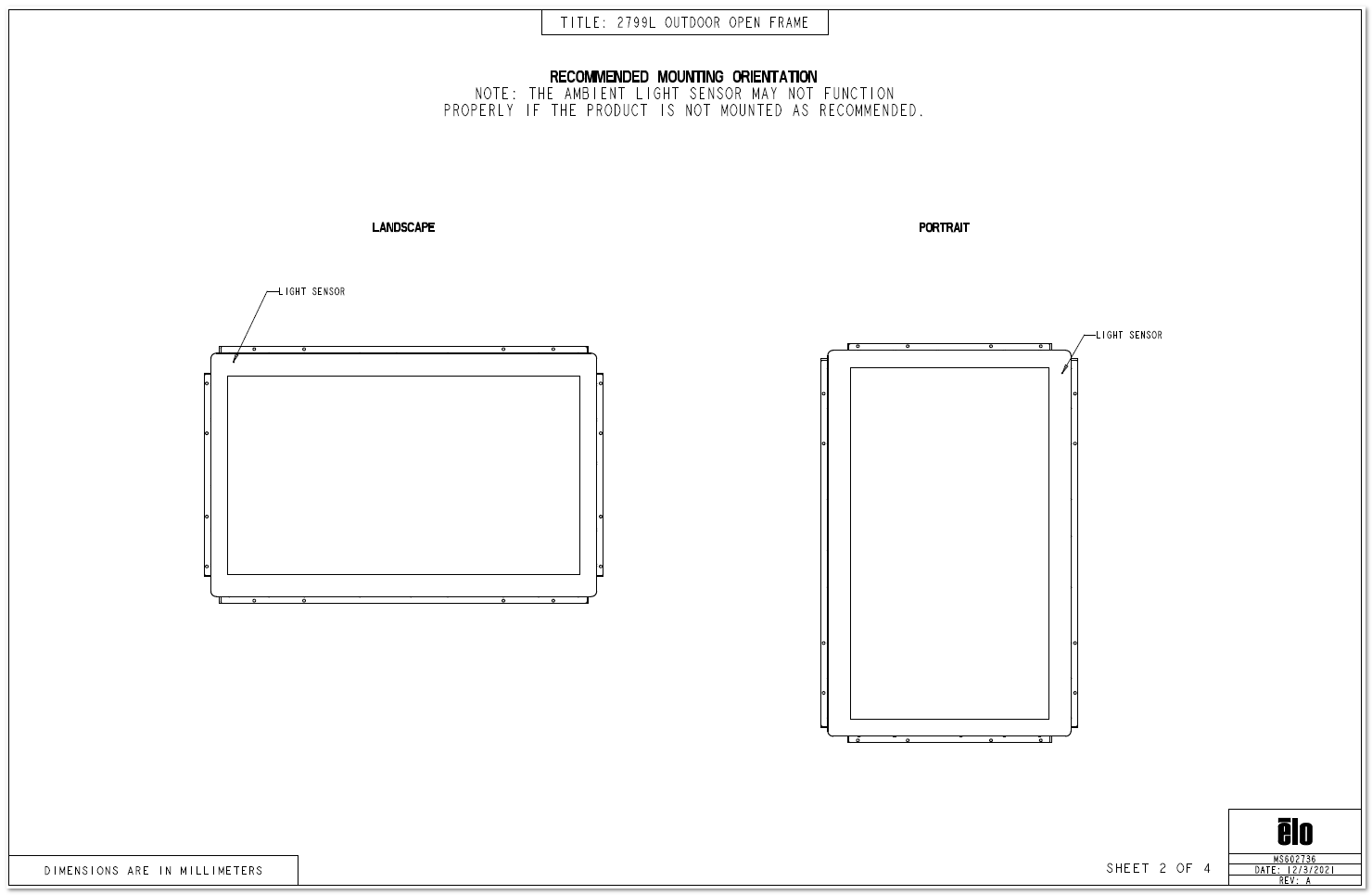

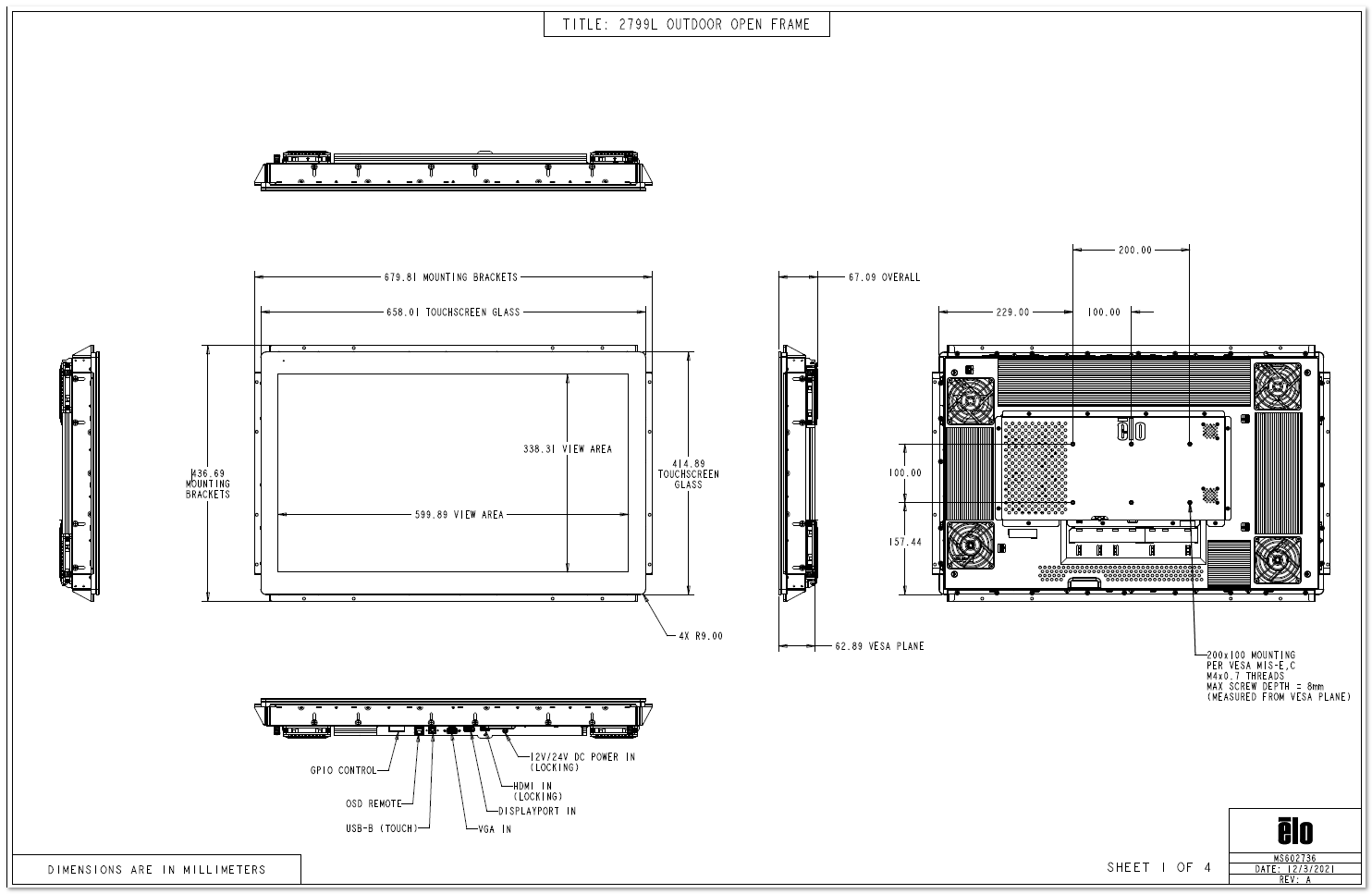

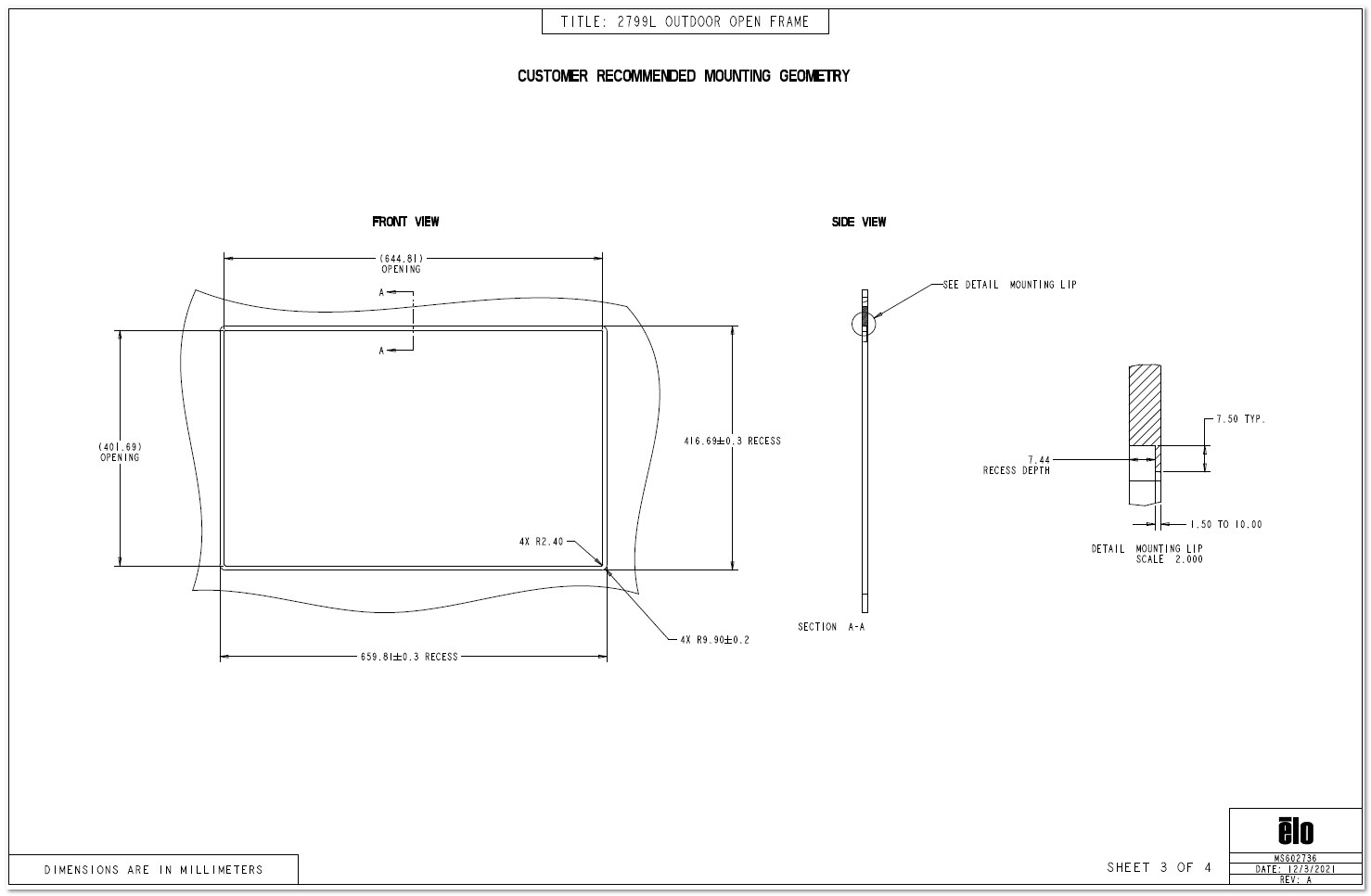

2799L Dış Mekan Açık Kasa monitörü için boyut çizimlerini nerede bulabilirim?

Bu makale 2799L Dış Mekan Açık Çerçeve monitörünün boyut çizimlerini sağlamaktadır

Çizimler:
