Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

E553352, Elo 20 inç Geniş Ön Montaj Çerçeve Kiti hakkında bilgileri nerede bulabilirim?

Bu makale, P/N: E553352, Elo 20 inç Geniş Ön Montaj Çerçeve Kiti hakkında bilgi sağlamaktadır

Bu çerçeve kiti, IntelliTouch, AccuTouch ve SecureTouch teknolojileriyle donatılmış Elo ET2094 monitörleriyle uyumludur. Bu, PCAP ile donatılmış monitörle uyumlu DEĞİLDİR.

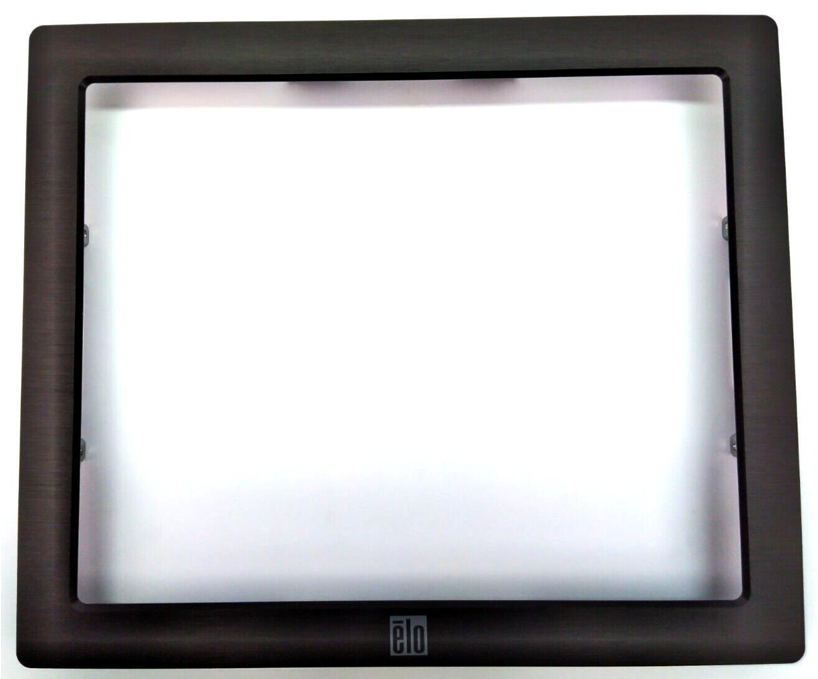

Fotoğraf:
(görüntülenen fotoğraf 19" standart en-boy oranına sahip monitör içindir. 2094L için çerçeve kiti daha geniş olacak, ancak aşağıdaki gibi görünecektir)

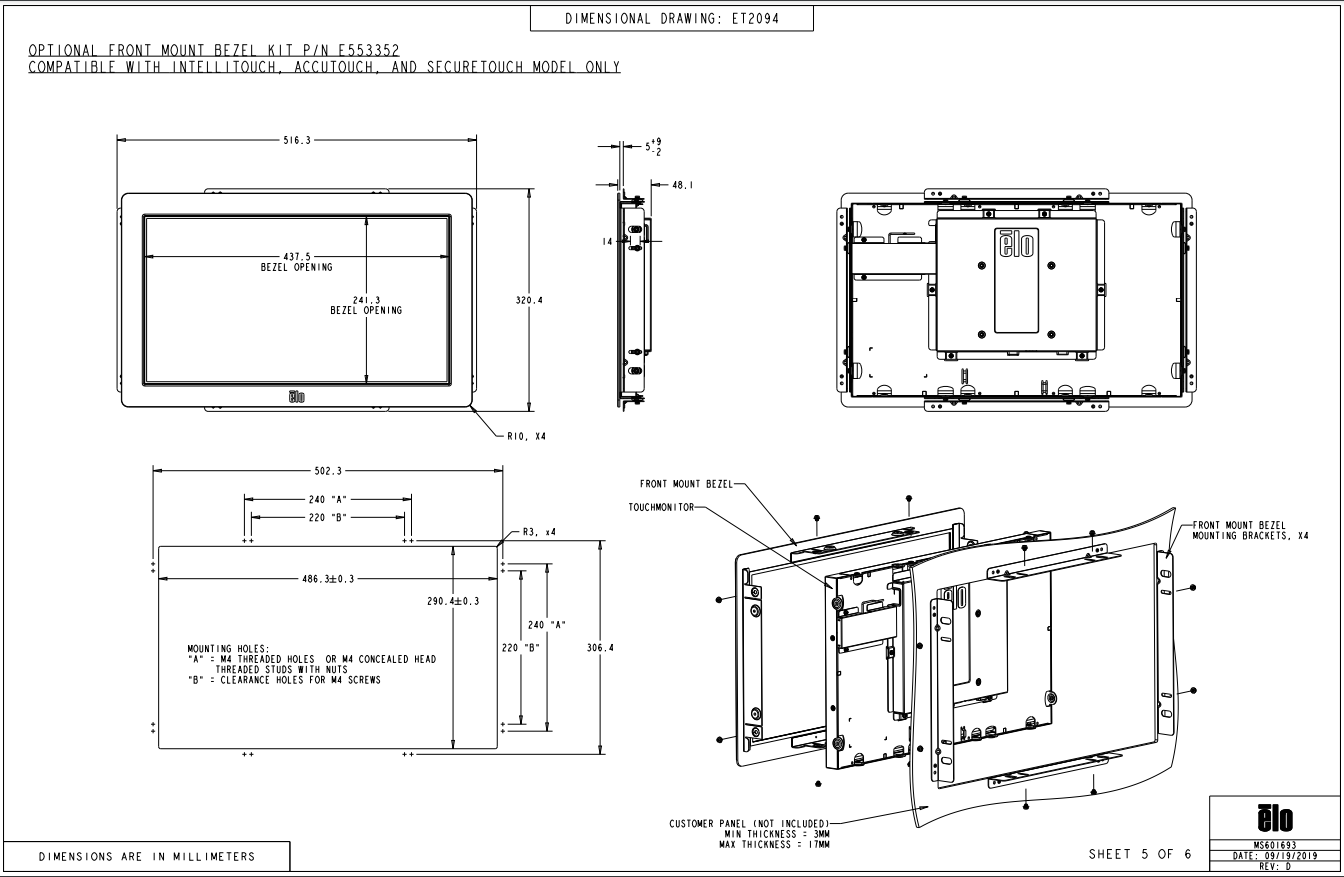

Çizim
