E548786, 1593L PCAP Duvardan Monte Braket Kiti hakkında nereden bilgi alabilirim?

Bu makale Elo P/N: E548786, 1593L PCAP Yüzeye Montaj Braketi Kiti hakkında bilgi vermektedir

Bu braketler, Elo 1593L Açık Çerçeveli Monitör ile birlikte gelir ve ayrıca ayrı bir kit olarak satılmaktadır.

Kit İçeriği:

  • 4 Yüzeye Montaj Braketi
  • 16 Vida

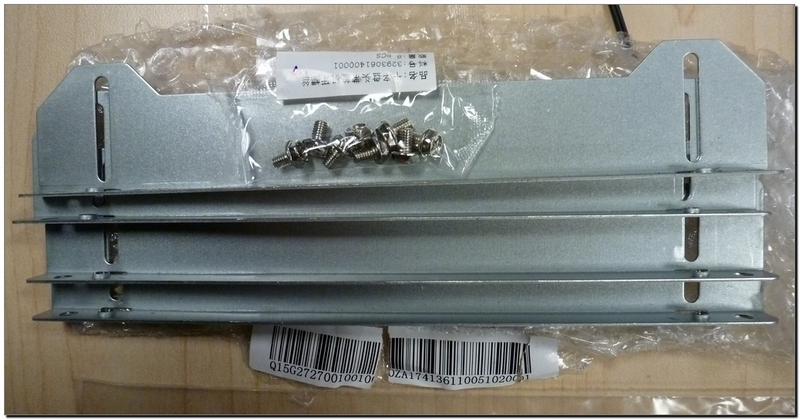

Fotoğraf

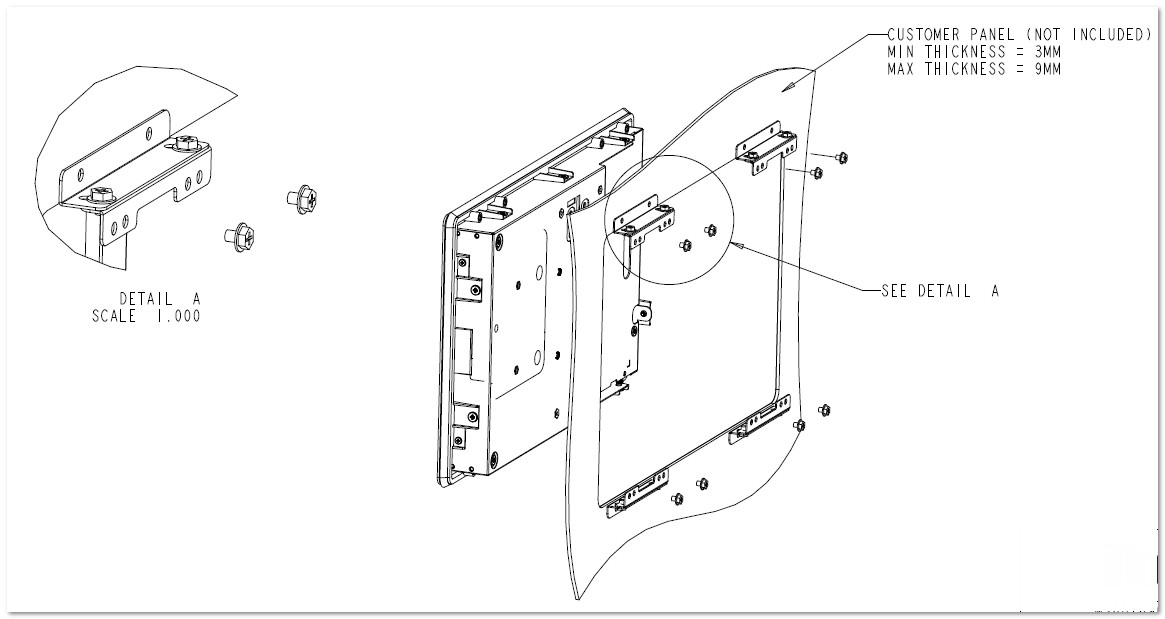

Monitöre Montaj

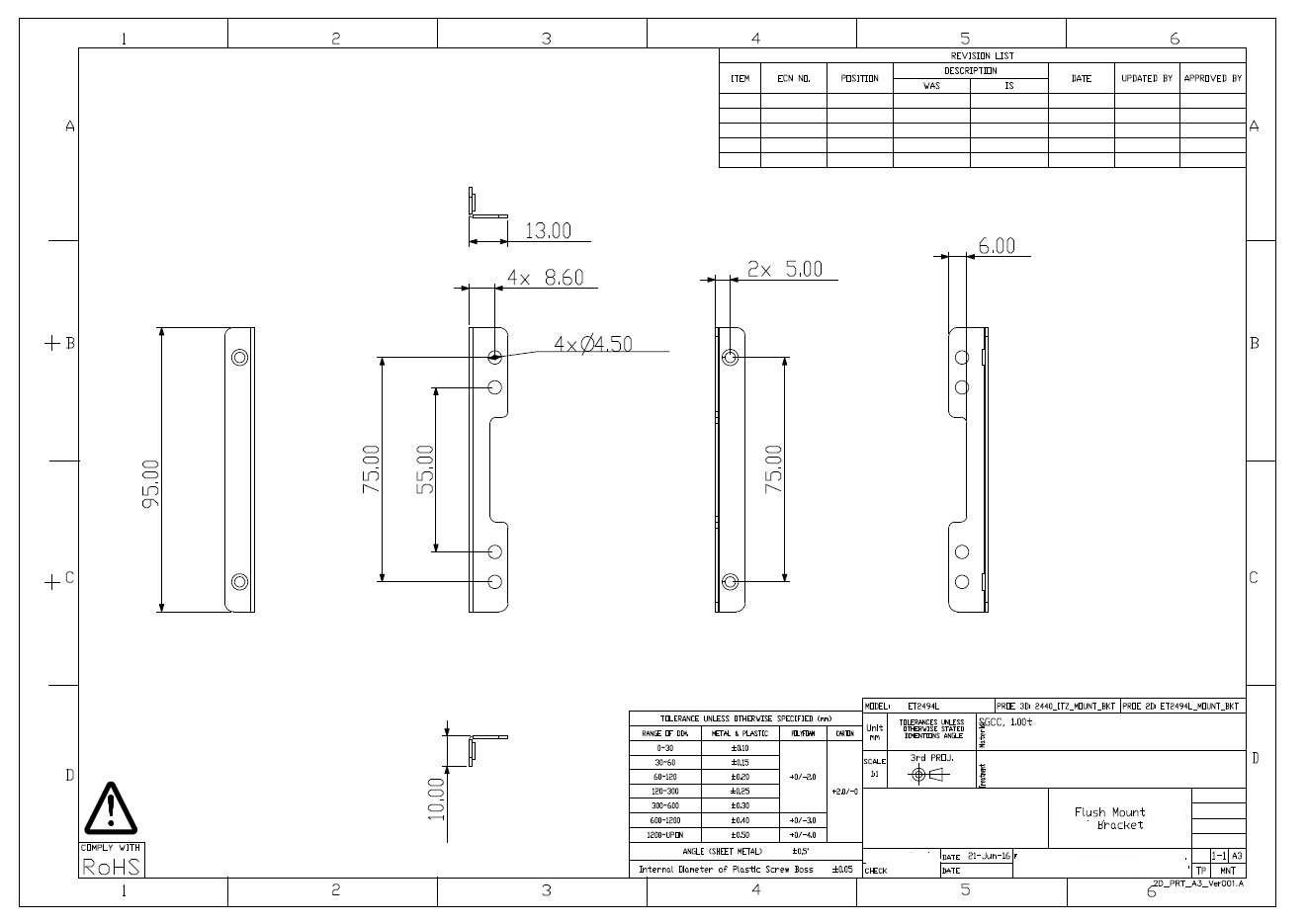

Boyutlandırma Çizimi
