1099L Dış Mekan Açık Çerçeve Monitörü için boyutsal çizimleri nereden bulabilirim?

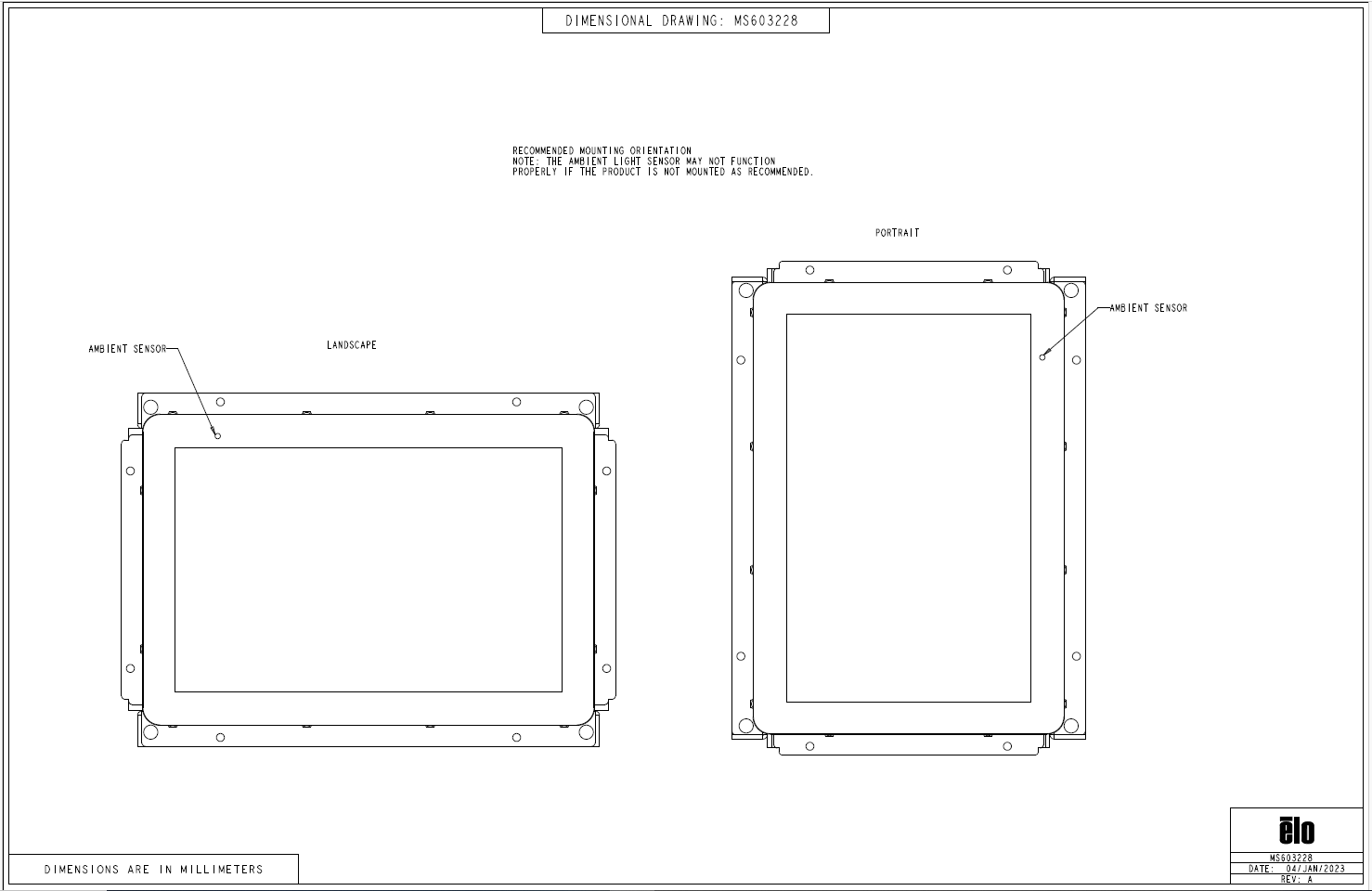

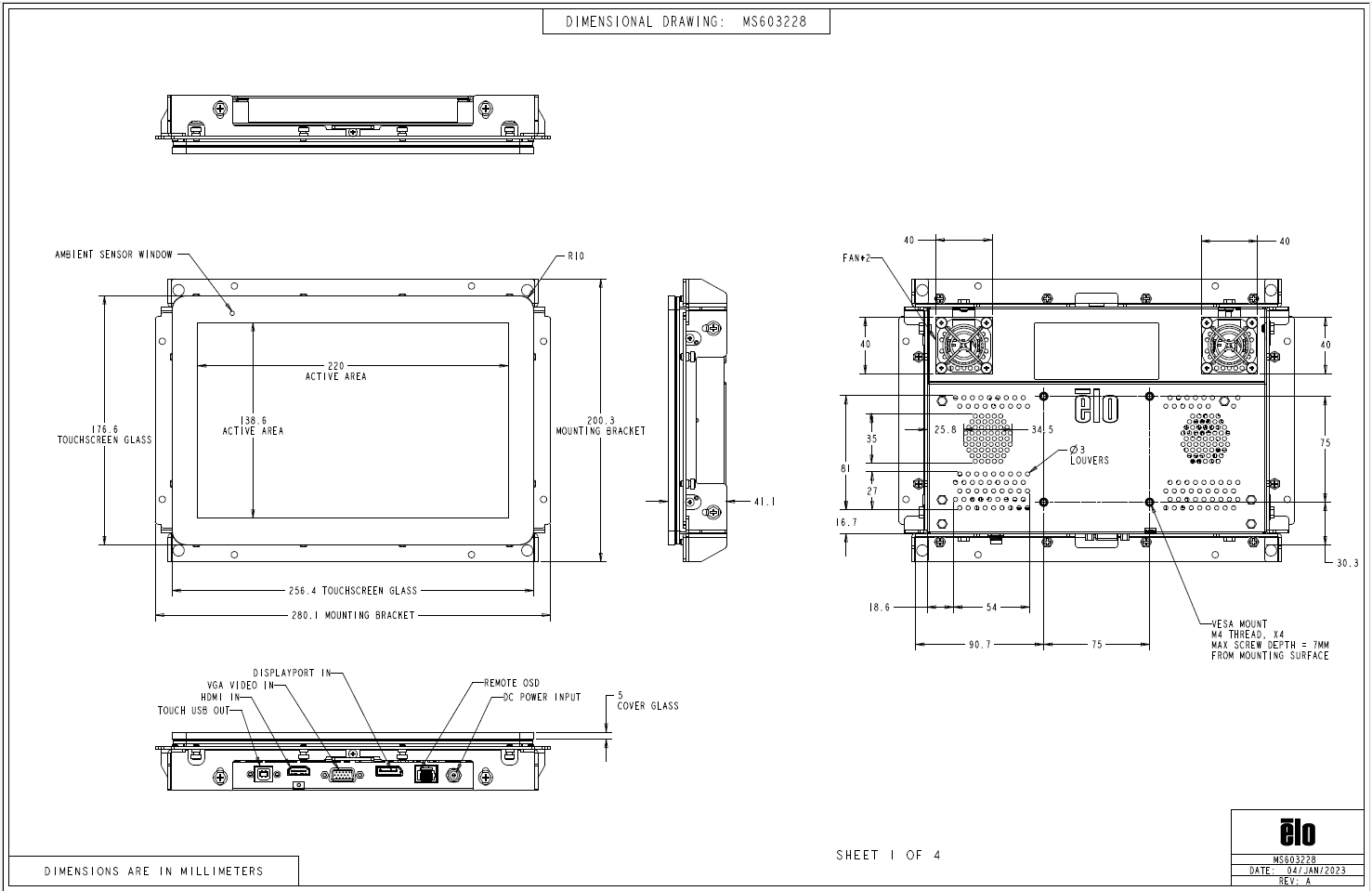

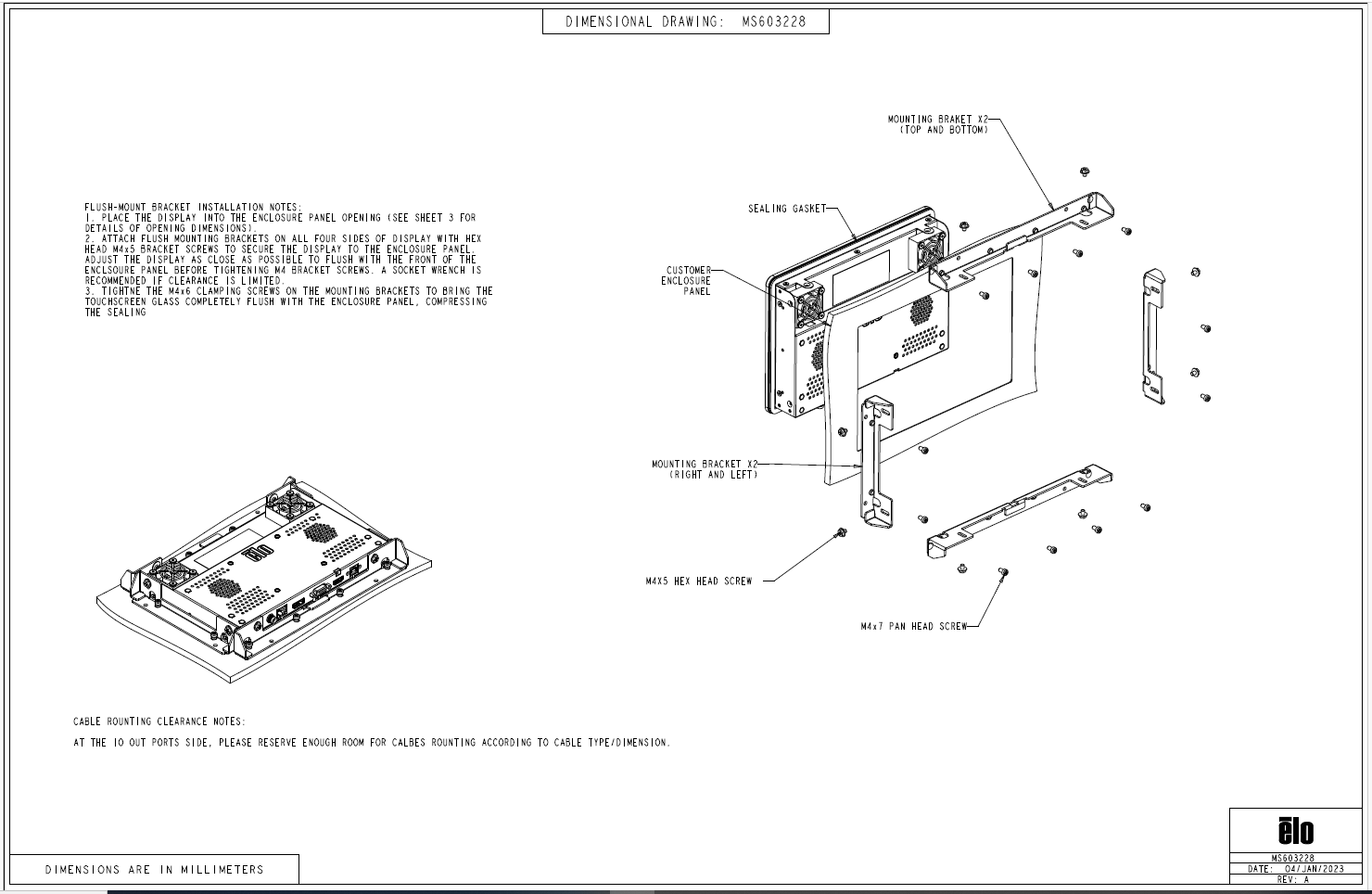

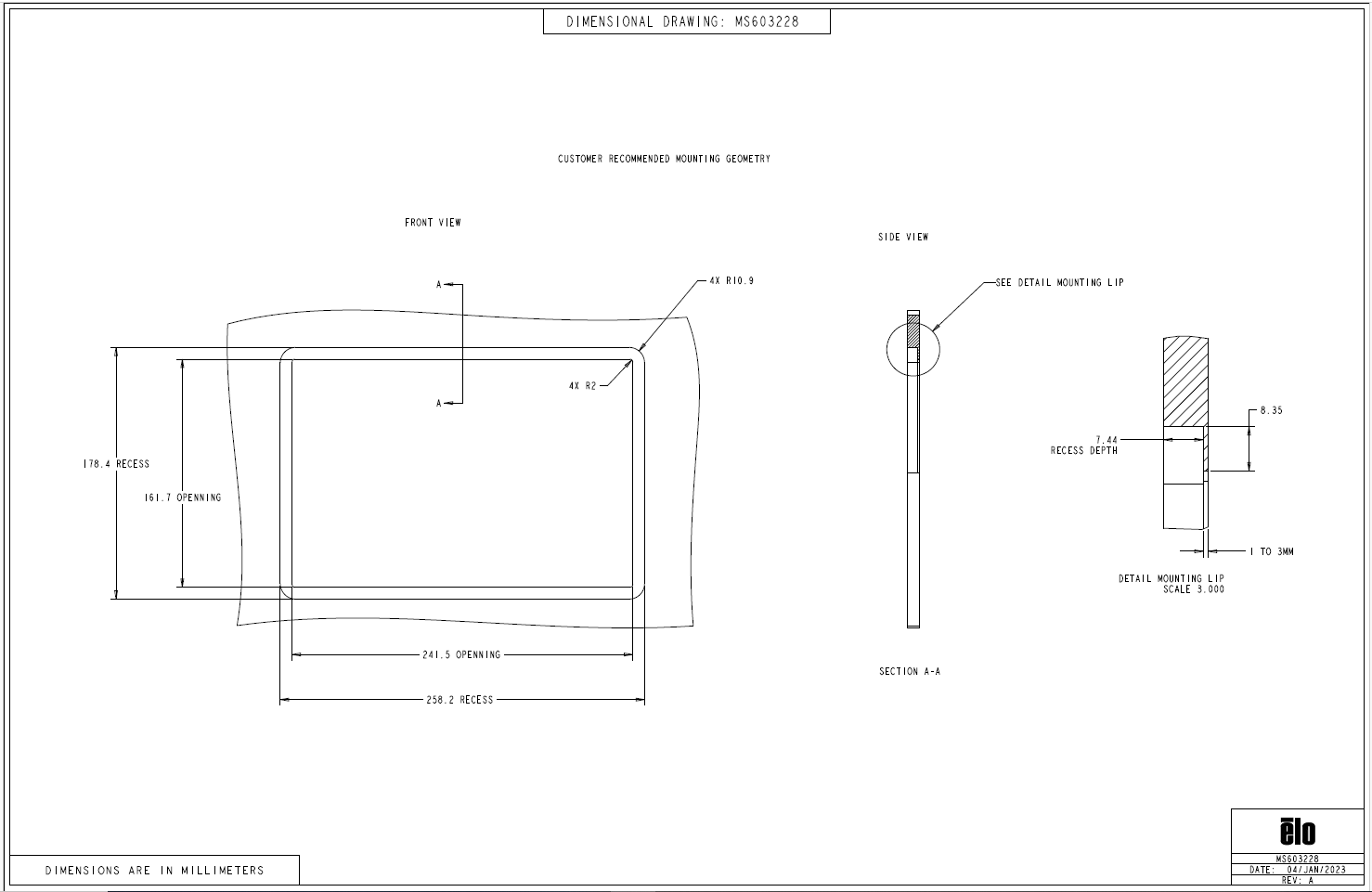

Bu makale ET1099L Dış Mekan Açık Çerçeve dokunmatik monitörünün boyutsal çizimlerini sağlamaktadır

Ayrıca, bu makaleye ekli çizimleri bulabilirsiniz.
