Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

1099L Dış Mekan Açık Çerçeve Dokunmatik Monitörü nasıl monte ederim?

Bu makale 1099L Dış Mekan Açık Çerçeve dokunmatik monitörün çeşitli montaj yöntemlerini açıklamaktadır

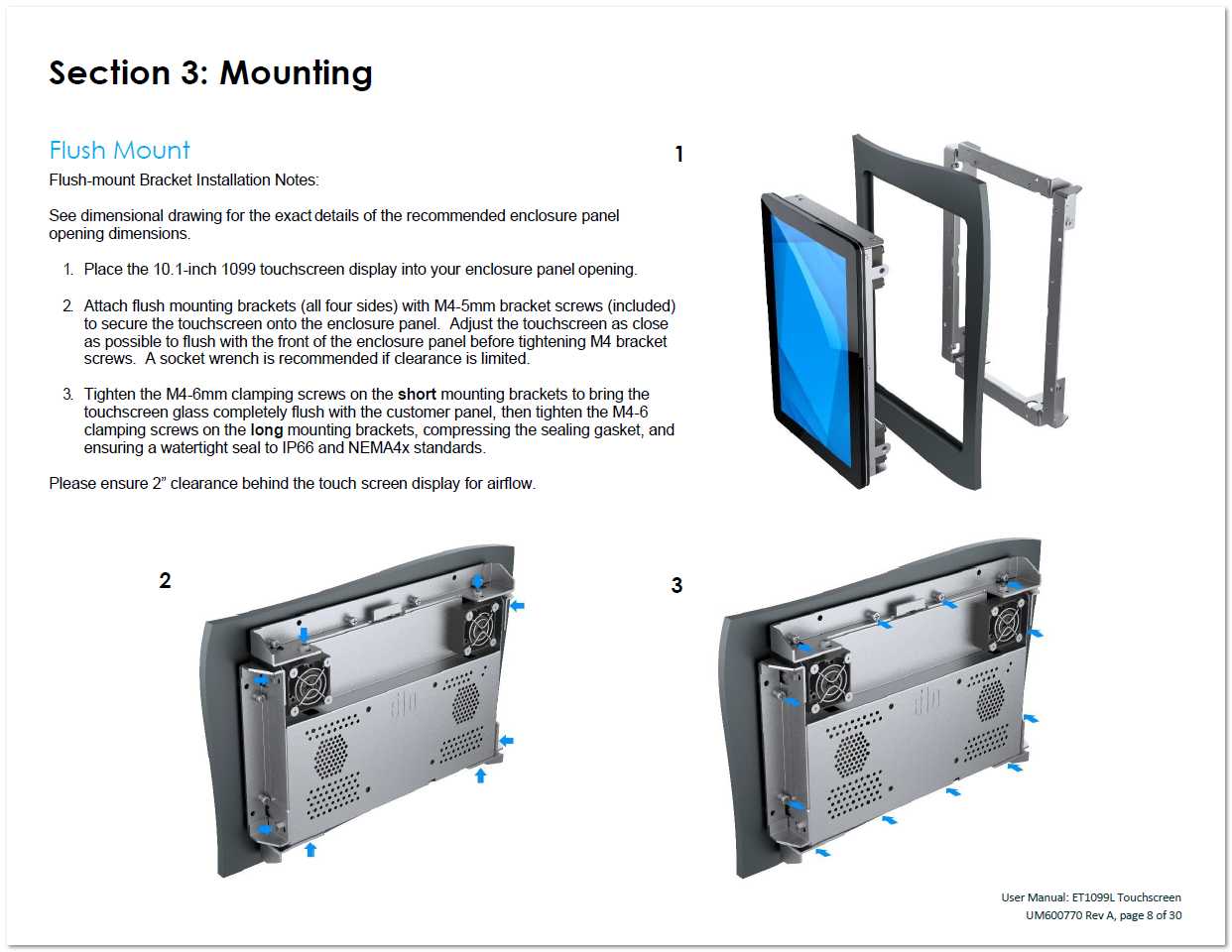

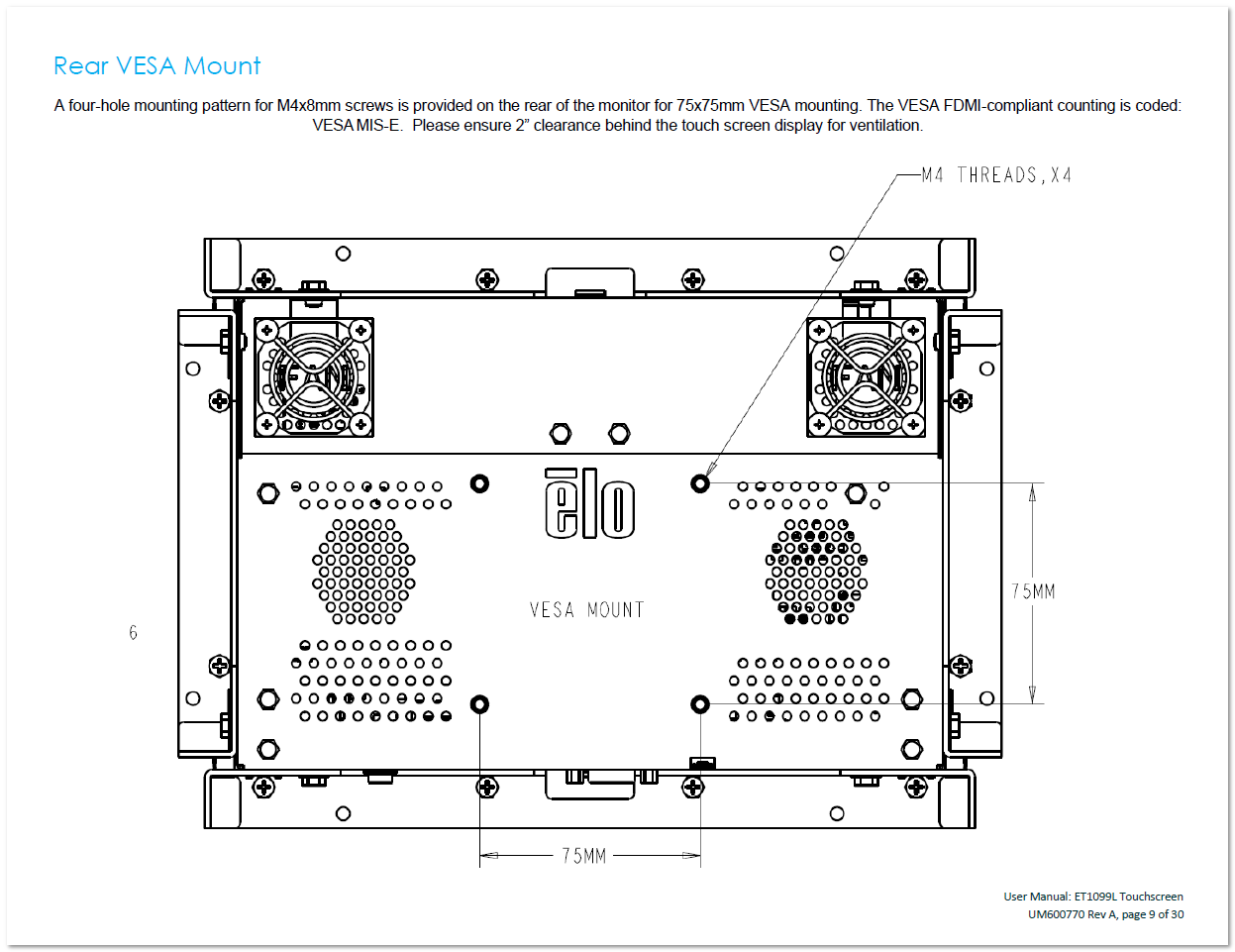

Kullanıcı Kılavuzu'nun 8-9. sayfasından:

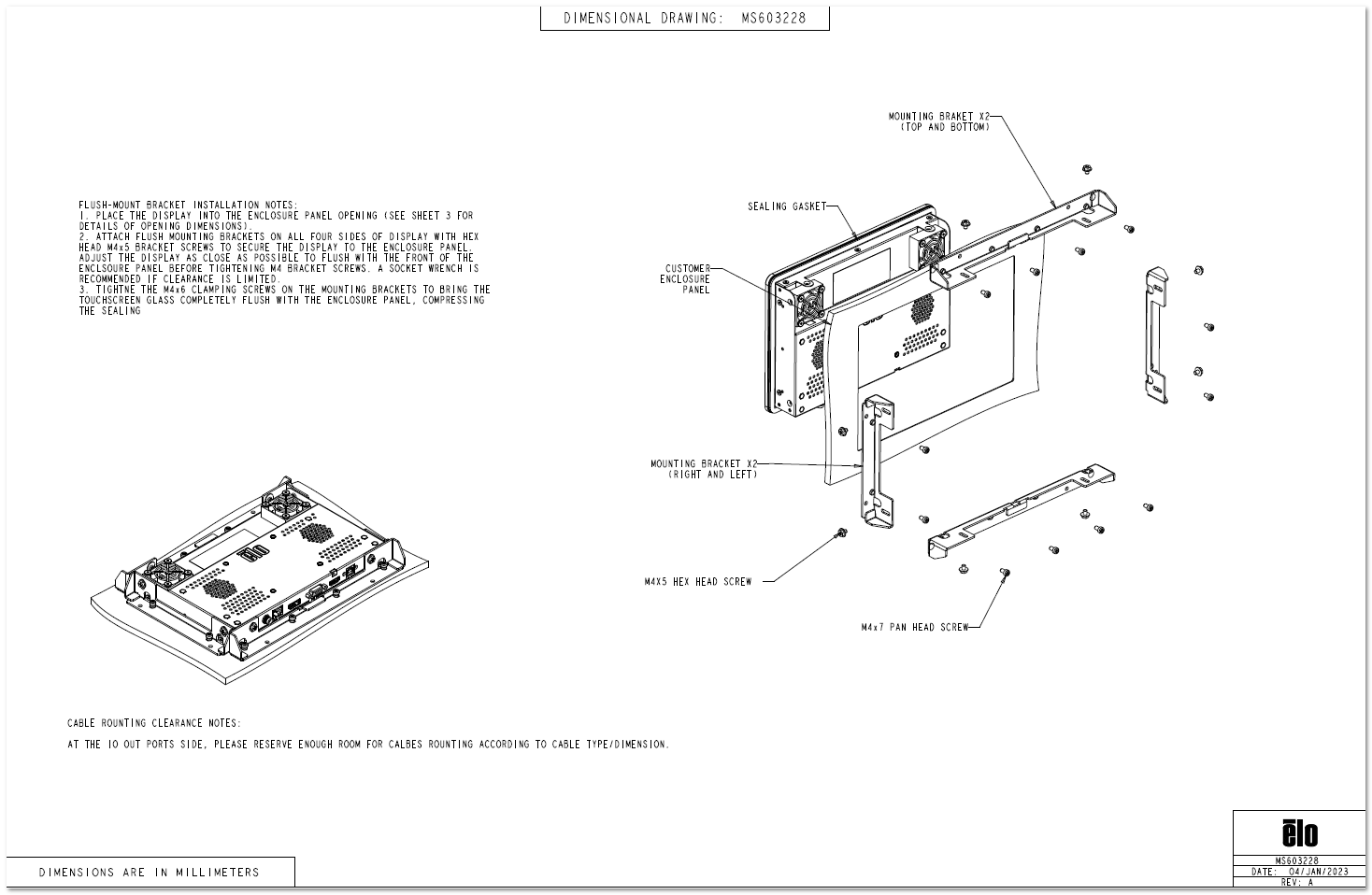

Boyut Çizimi'nin 4. sayfasından:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
