Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

E641484: Kit, RJ45 to DB9 kablosu, EloPOS hakkında bilgileri nereden bulabilirim?

Bu makale, EloPOS sistemleriyle birlikte verilen E641484: Kit, RJ45 to DB9 kabloları hakkında bilgi listesini sunmaktadır.

Açıklama

  • Uzunluk: 900mm
  • RJ45 dik erkek - DB9 dik erkek (Dümdüz Kablo Tipi)

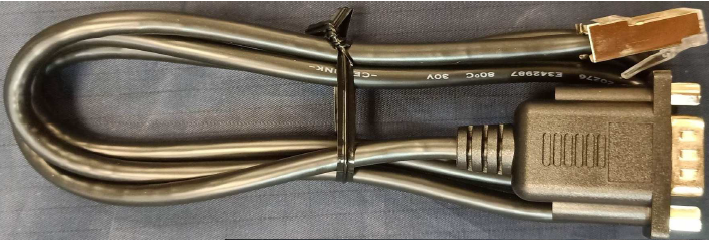

Fotoğraf

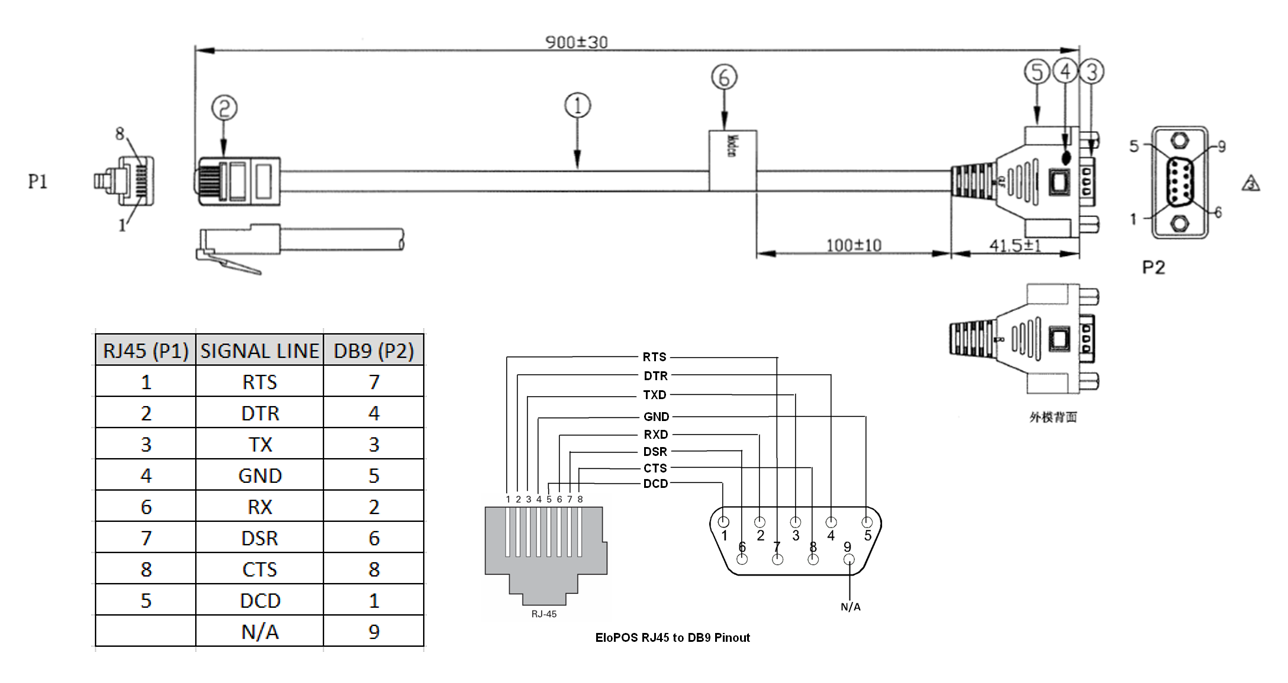

Çizim ve Pinout
