Elo 1502L 显示器上的 VESA 安装是什么？

本文提供了Elo 1502L显示器的支架类型

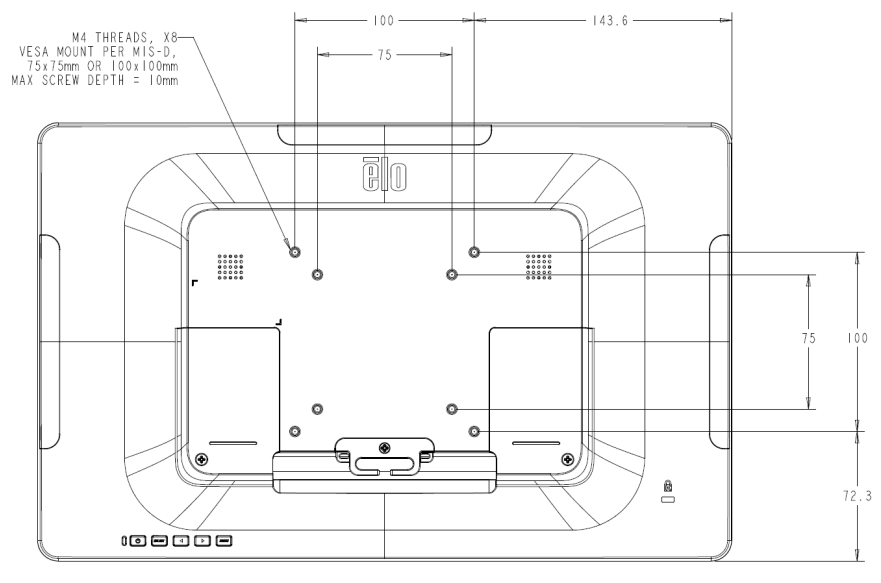

Elo ET1502L上的后背VESA支架：

显示器后部提供了一个四孔75x75mm和100x100mm的M4螺钉安装图案。使用十字螺丝刀拆卸支架以访问此安装接口。VESA FDMI兼容的支架编码为： VESA MIS-D, 75, C 和 VESA MIS-D, 100, C.
