我在哪里可以找到 E534869: ET1509L-8UWA-0-G（已停产）的图纸？

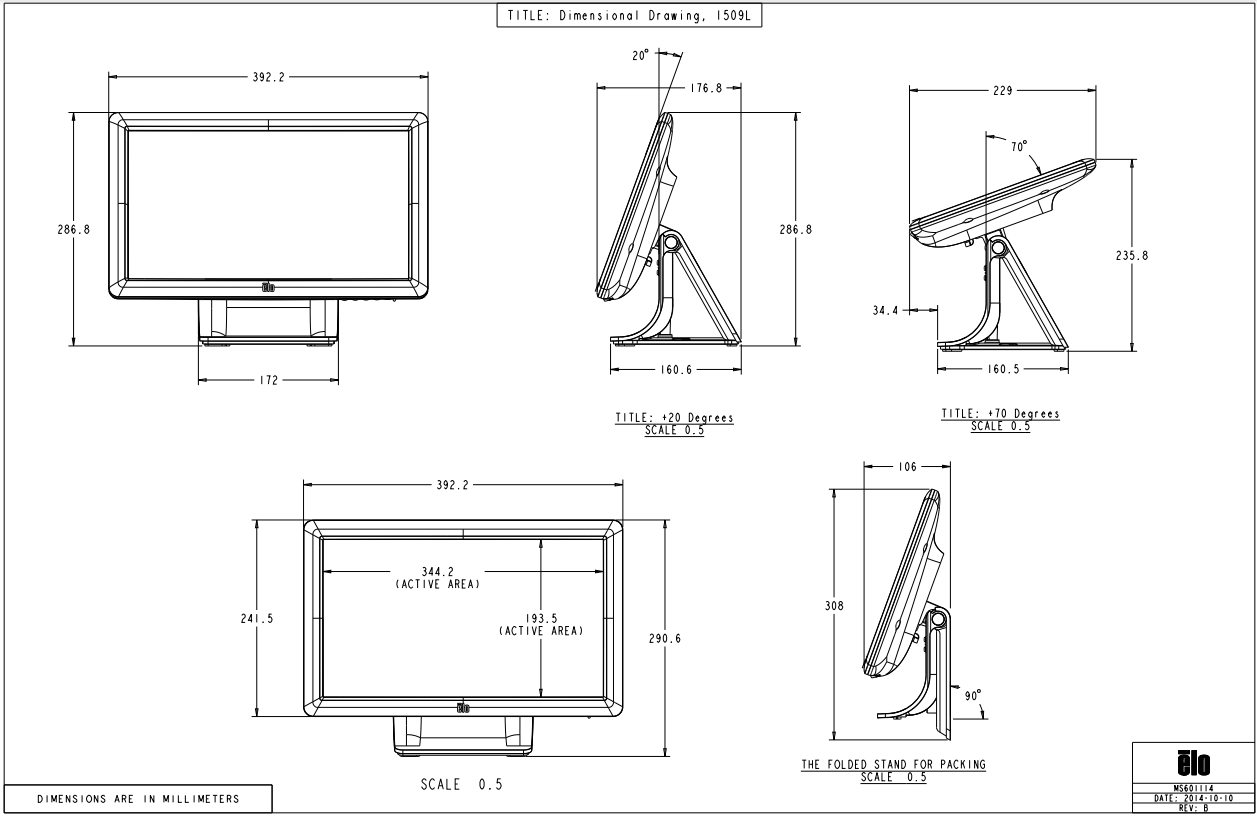

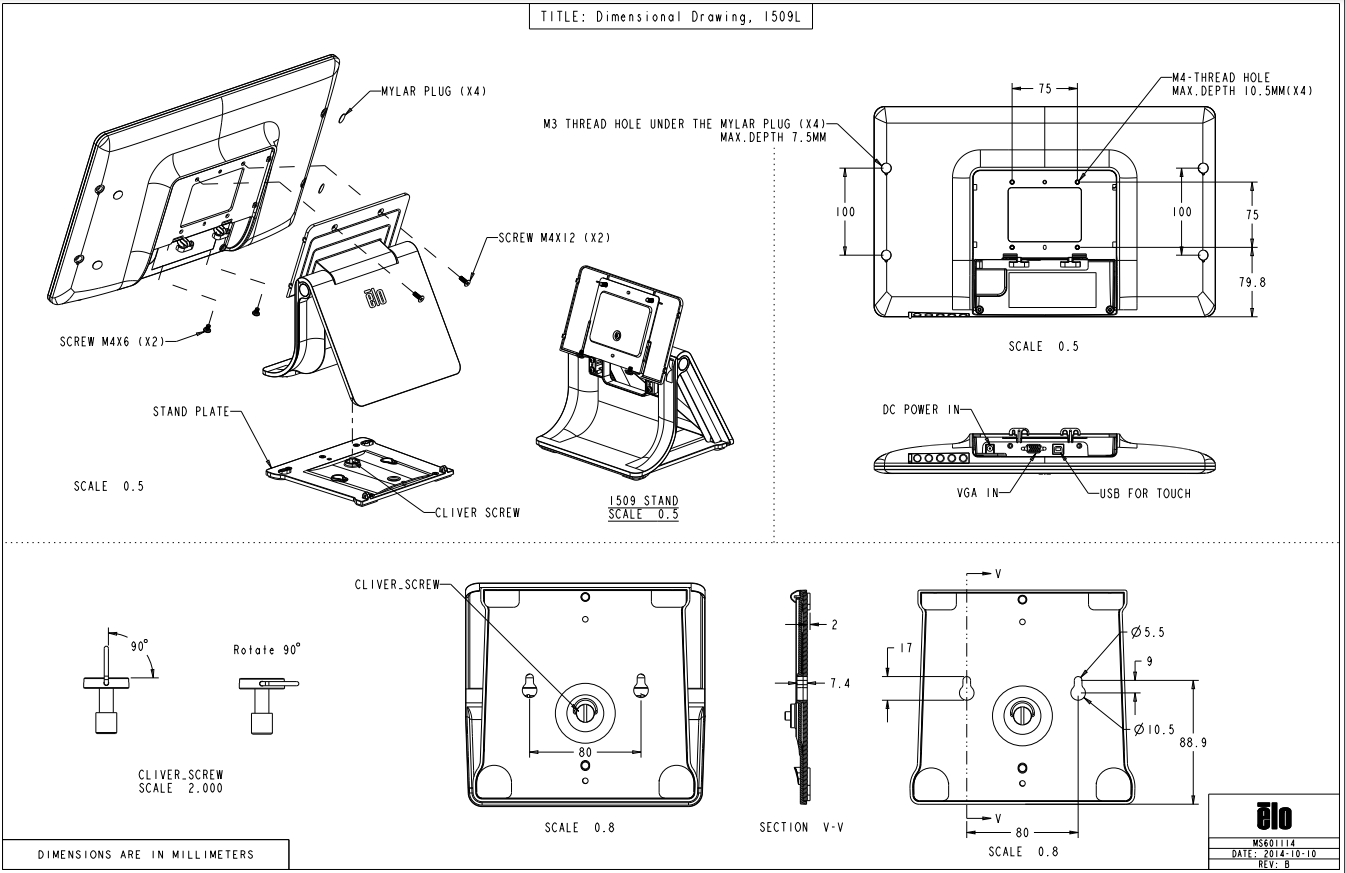

本文章提供E534869: ET1509L-8UWA-0-G的图纸（产品于2023年3月28日停产）。


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
