欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

Elo 1717L 显示器上的 VESA 安装是什么？

本文提供了Elo 1717L显示器的安装选项

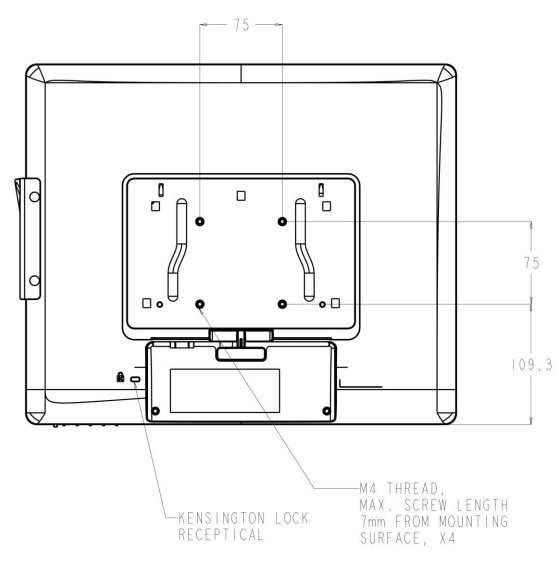

Elo 1717L显示器上的后部VESA安装：

对于1717L触摸显示器，后面提供了一个四孔75x75mm的M4螺丝安装模式。使用十字螺丝刀拆卸支架以访问此安装接口。VESA FDMI兼容的计数编码为： VESA MIS-B, 75, C.
