Elo 1517L 显示器上的 VESA 支架是什么？

本文提供了Elo 1517L监视器的安装选项

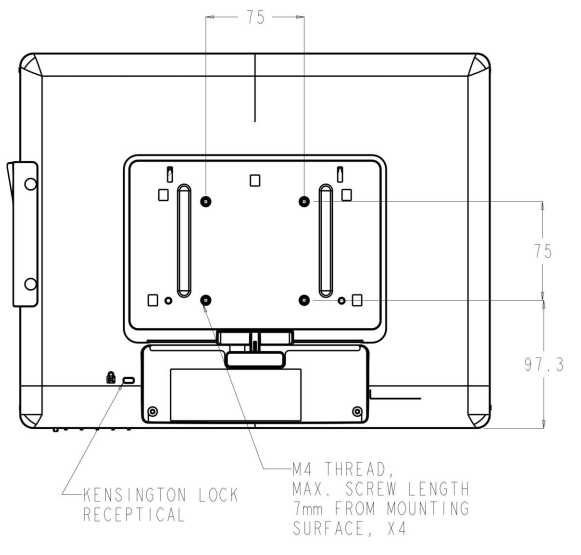

Elo 1517L监视器的后部VESA安装：

对于1517L触摸监视器，监视器后部提供了一个用于M4螺钉的四孔75x75mm安装模式。使用十字螺丝刀拆下支架以访问此安装接口。VESA FDMI兼容的计数编码为： VESA MIS-B, 75, C.
