我可以在哪里找到EloPOS设备的RJ45到DB9电缆的引脚图？

本文描述了与EloPOS单元一起包装的RJ45到DB9电缆的引脚定义

部件描述：5K.47T20.501：电缆 RJ45-RS232 900MM EA15PA0-1

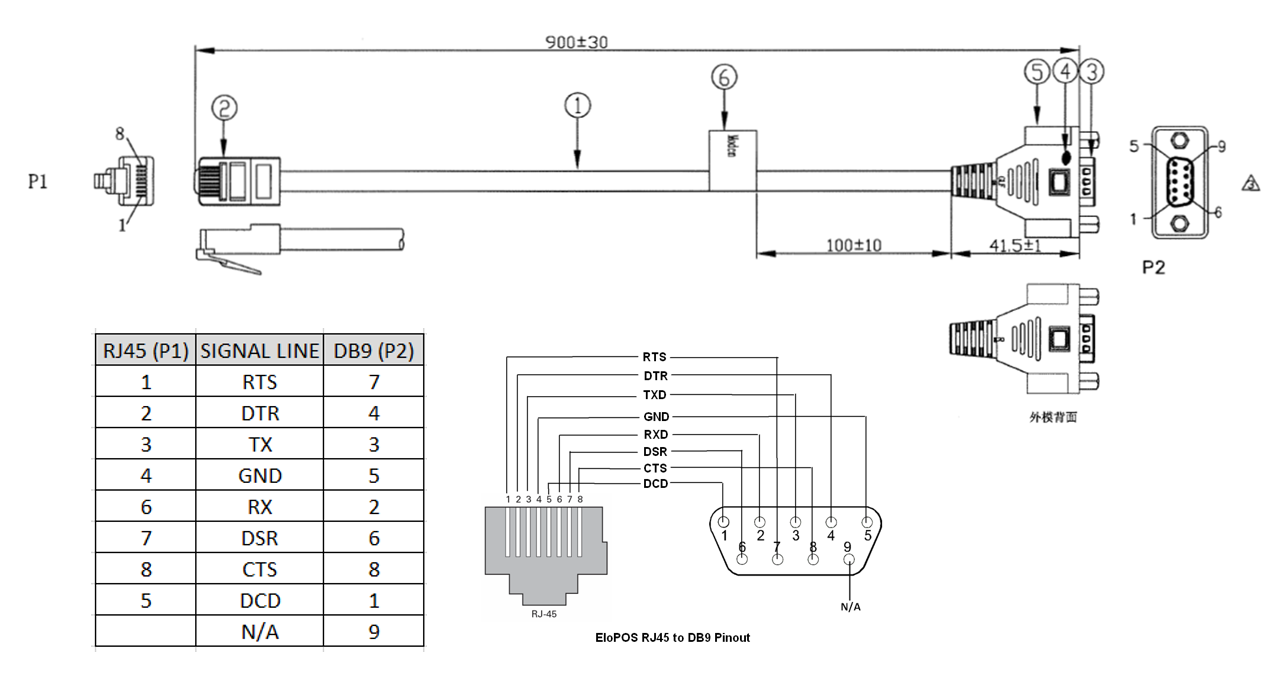

EloPOS RJ45到DB9引脚定义

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
