欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到EloPOS Pack的尺寸图纸？

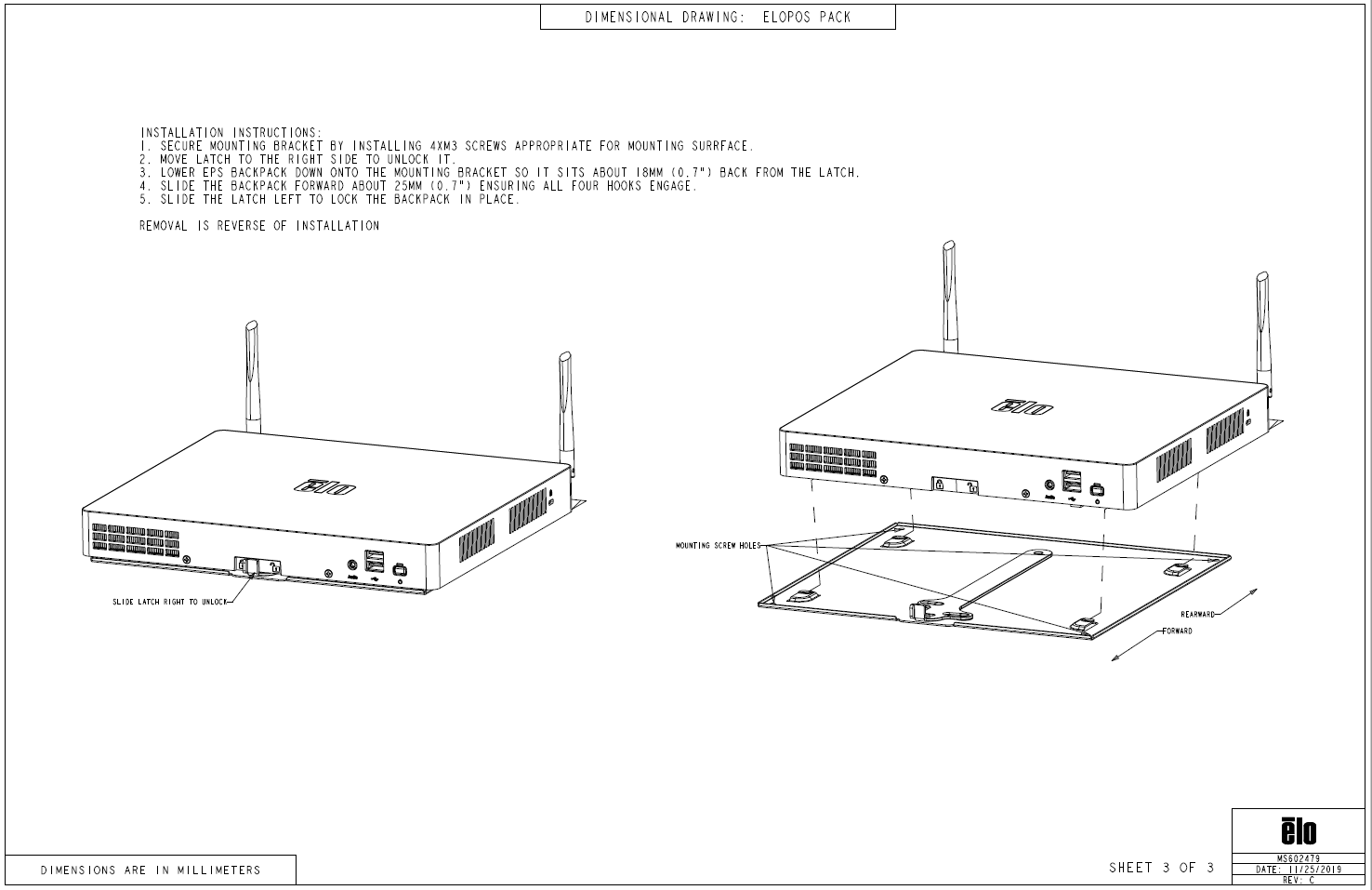

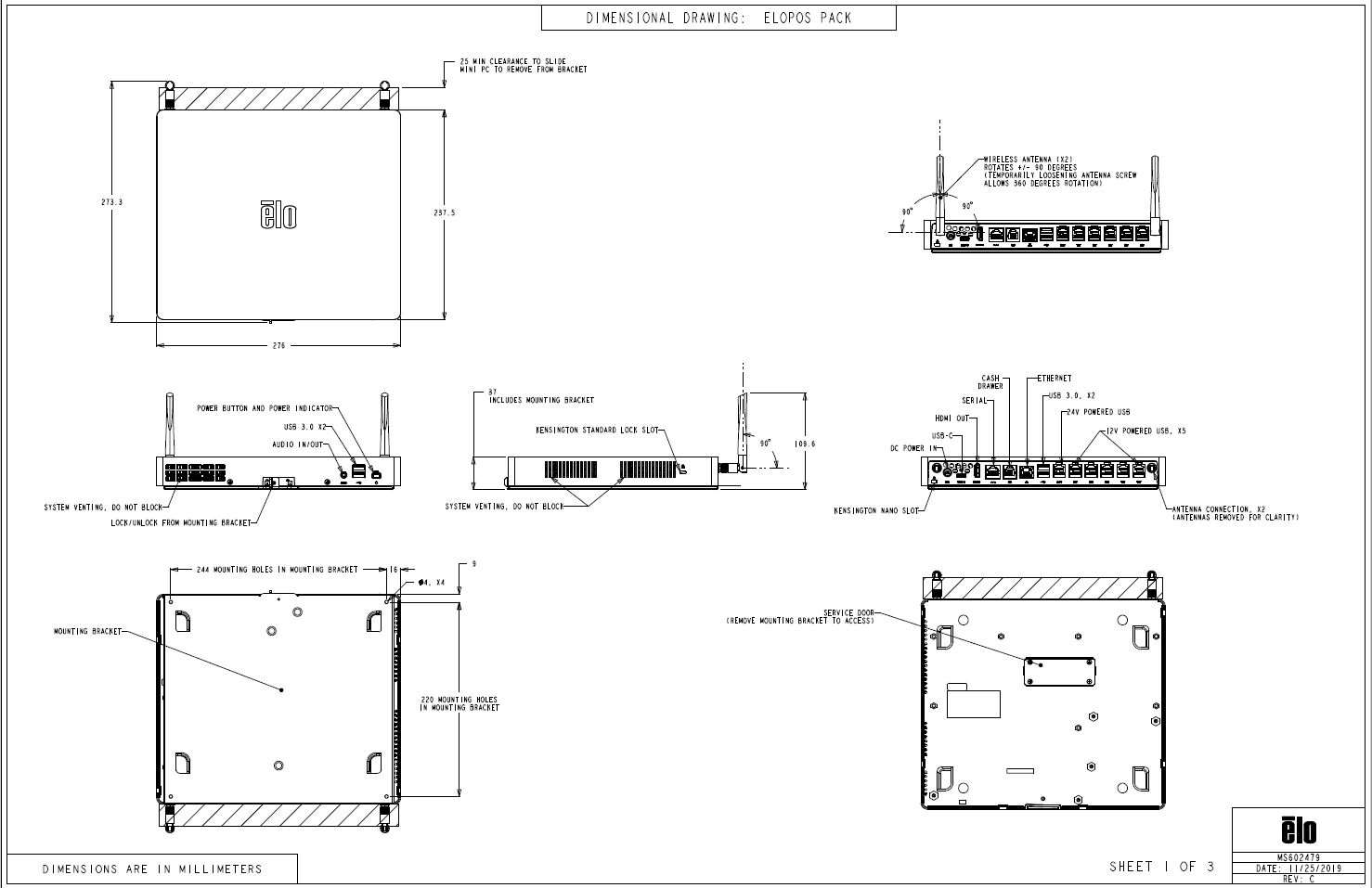

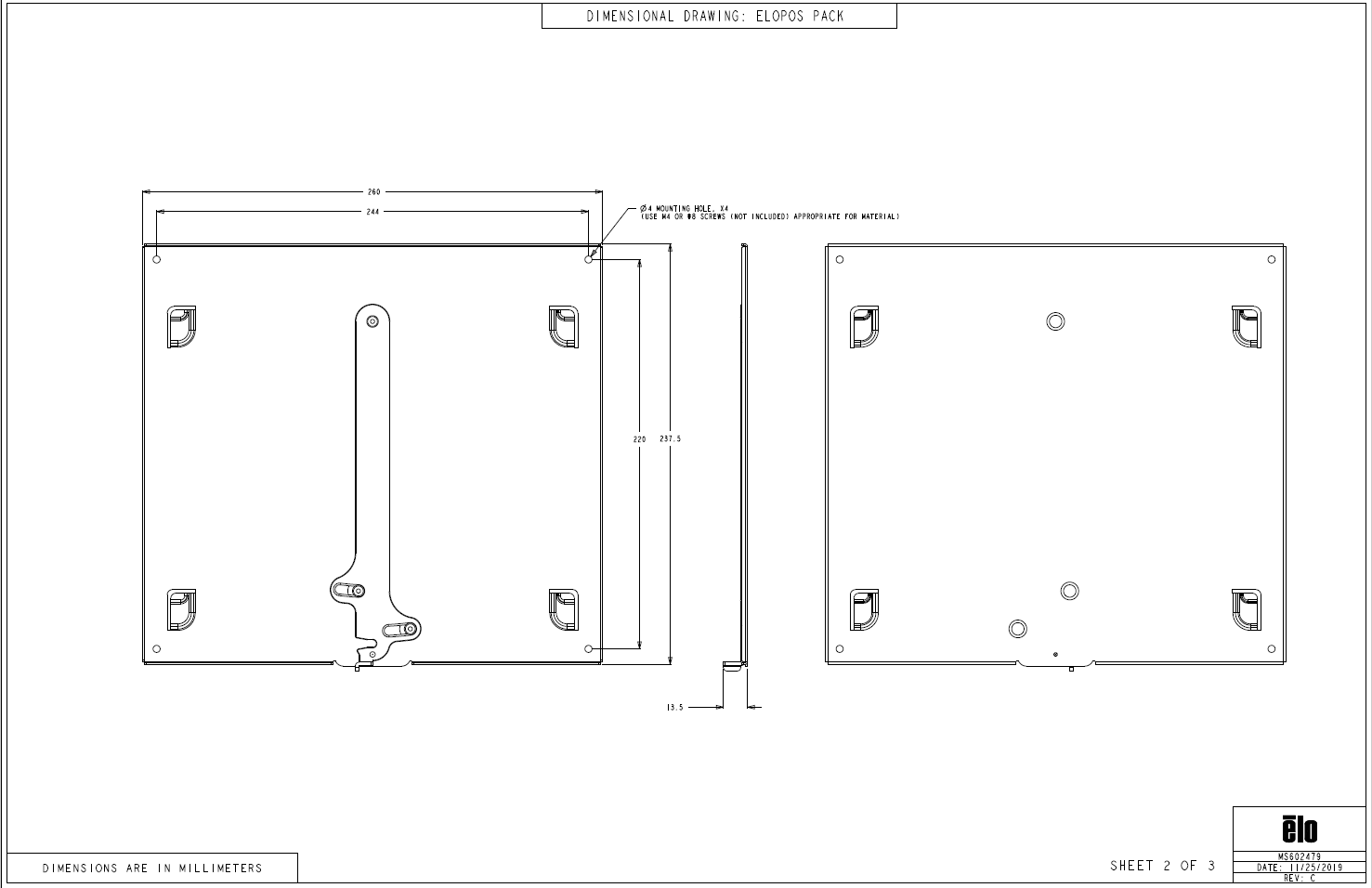

本文提供了EloPOS Pack的尺寸图纸

.pdf版本可以在此处下载。



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
