如何对Elo Android I-Series 4.0和Backpack 4.0设备执行出厂数据重置？

本文介绍如何对Elo Android I-Series 4、I-Series 4 Slate和BackPack 4设备执行出厂数据重置（完全清除并重新安装）

1. 拔掉 设备的 电源


2. 按住 HOME 键并 重新连接 电源

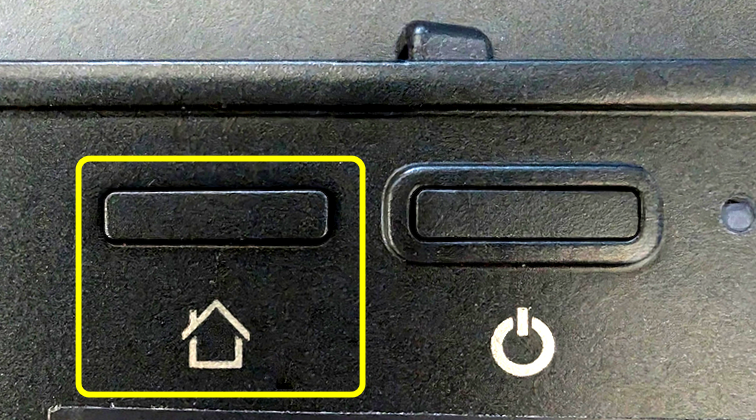

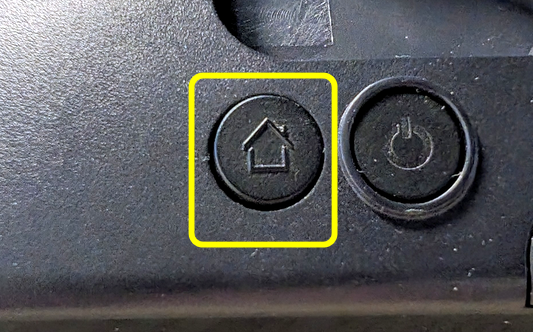

I-Series 4上的Home键

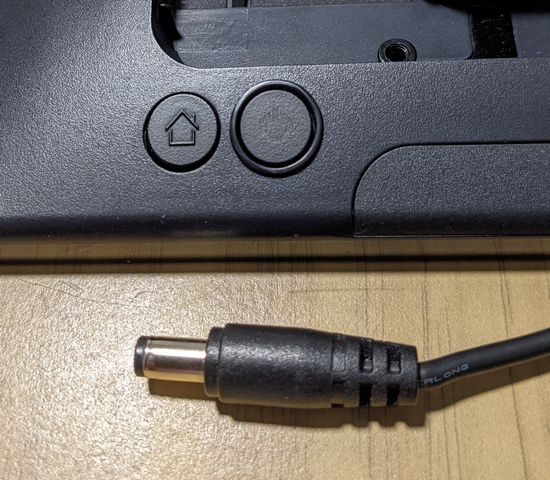

I-Series 4 Slate上的Home键

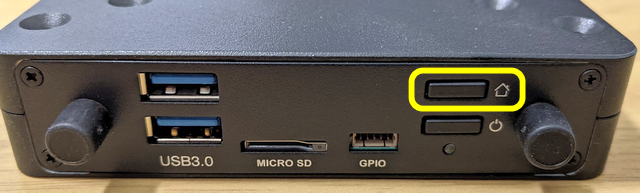

BackPack 4上的Home键

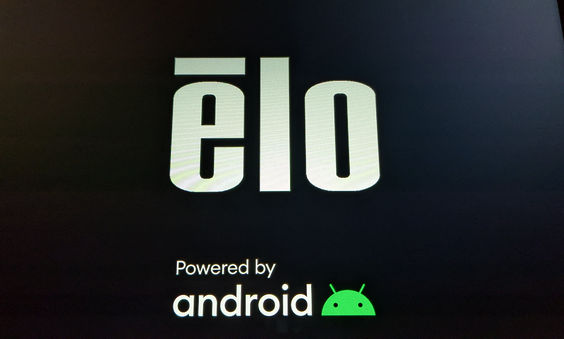

3. 继续按住 HOME 键，直到设备启动 Android Recovery

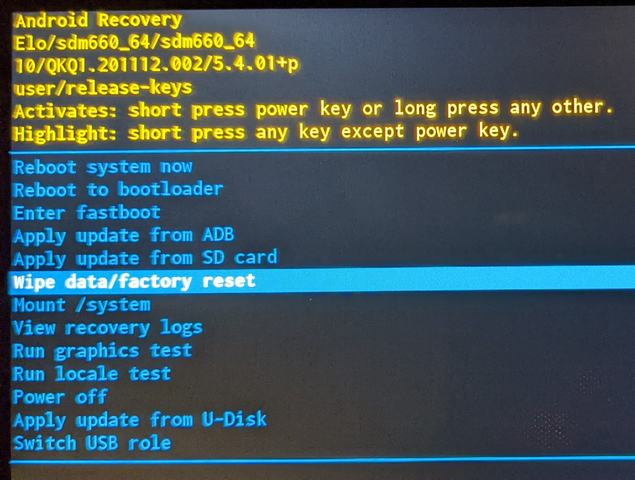

4. 按 HOME 键 选择 清除数据/出厂重置


5. 按 POWER 键 选择

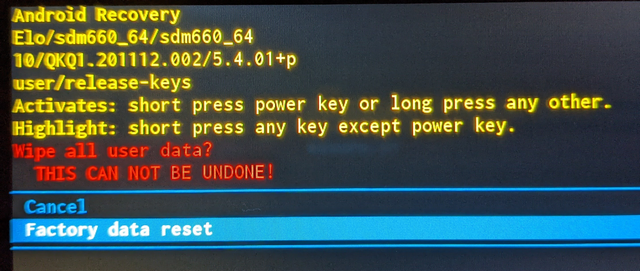

6. 按 HOME 键，直到 出厂数据重置 被选中

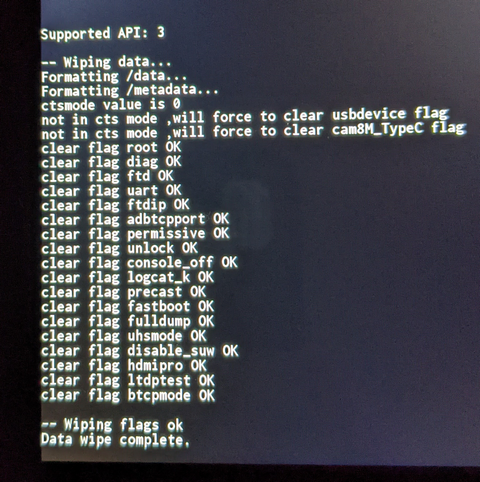

7. 按 POWER 键 选择。 该过程是自动化的，完成时您将看到数据清除完成。

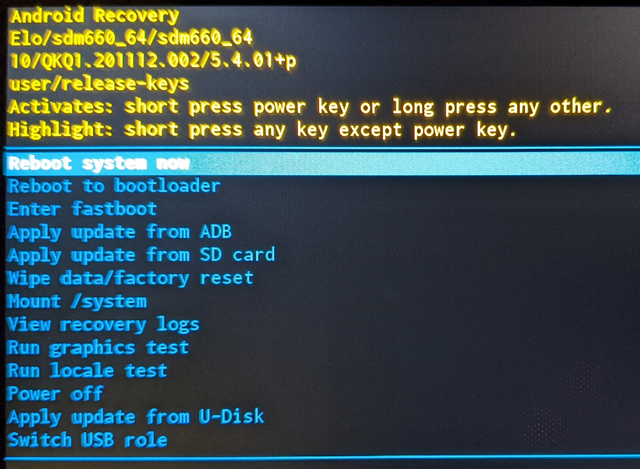

8. 数据清除完成后，按 电源键 以立即重启系统

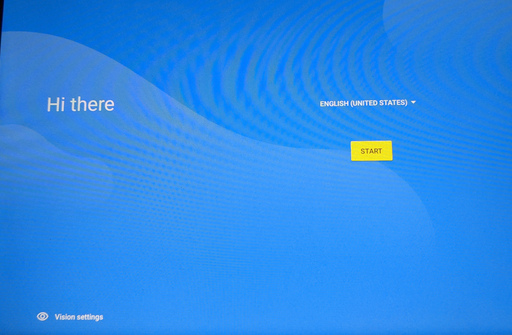

9. 系统将重启进入全新出厂设置屏幕
