欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

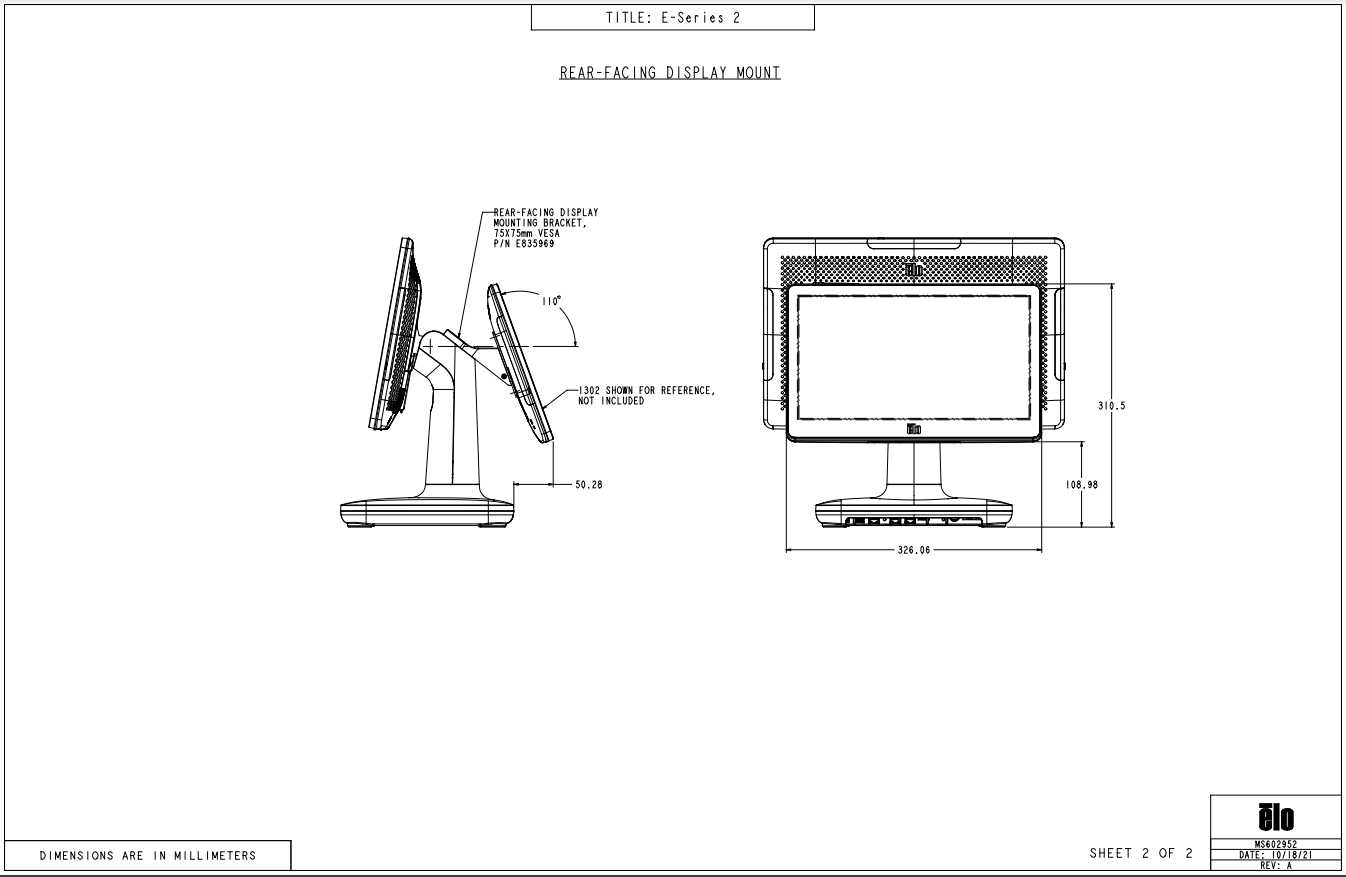

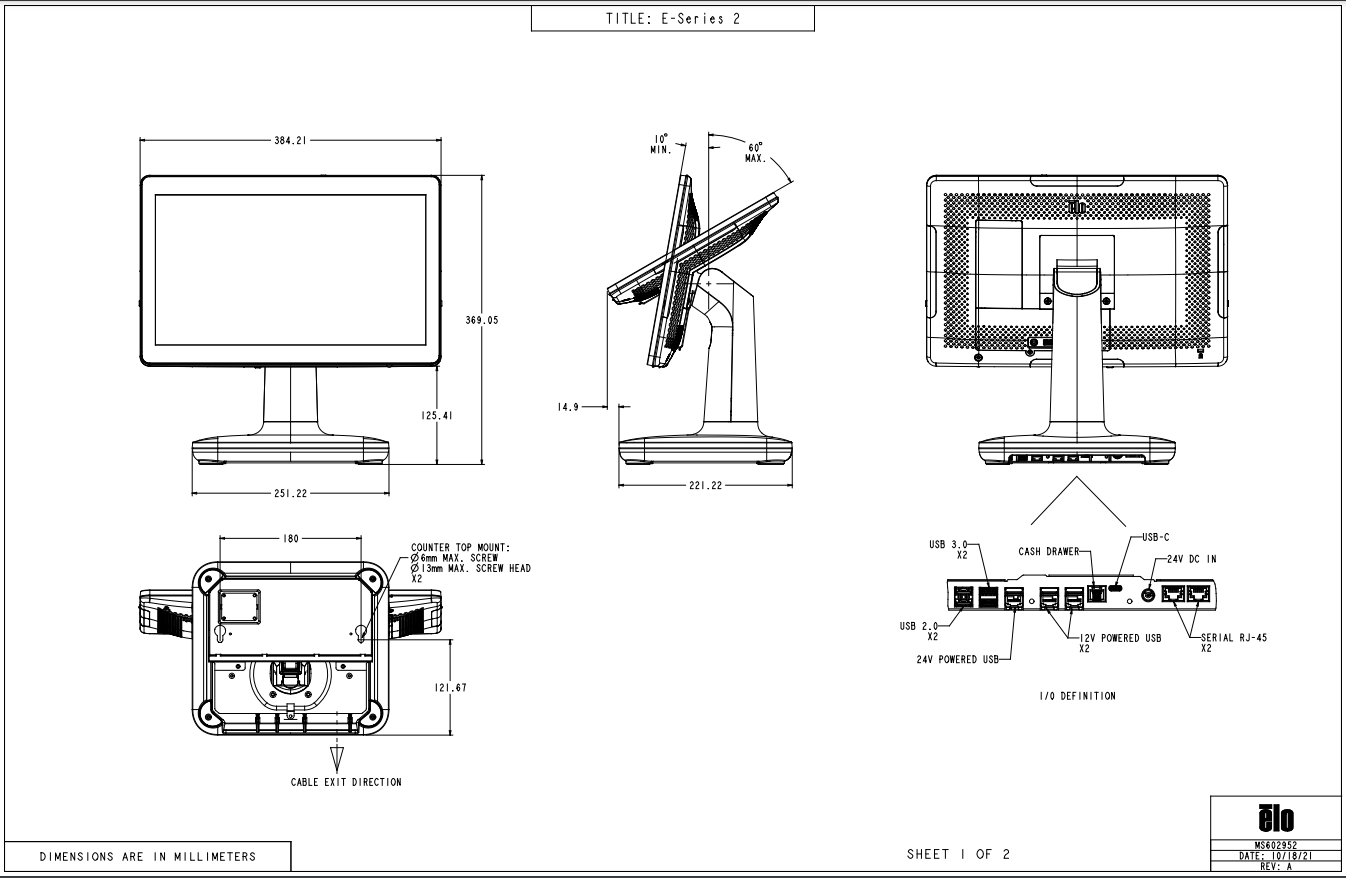

在哪里可以找到 E-Series 2 设备的尺寸图？

本文提供了E系列2 AIO触控电脑的尺寸图。

该图纸也可以从Elo网站下载


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
