我在哪里可以找到 E-Series 3D 图纸？

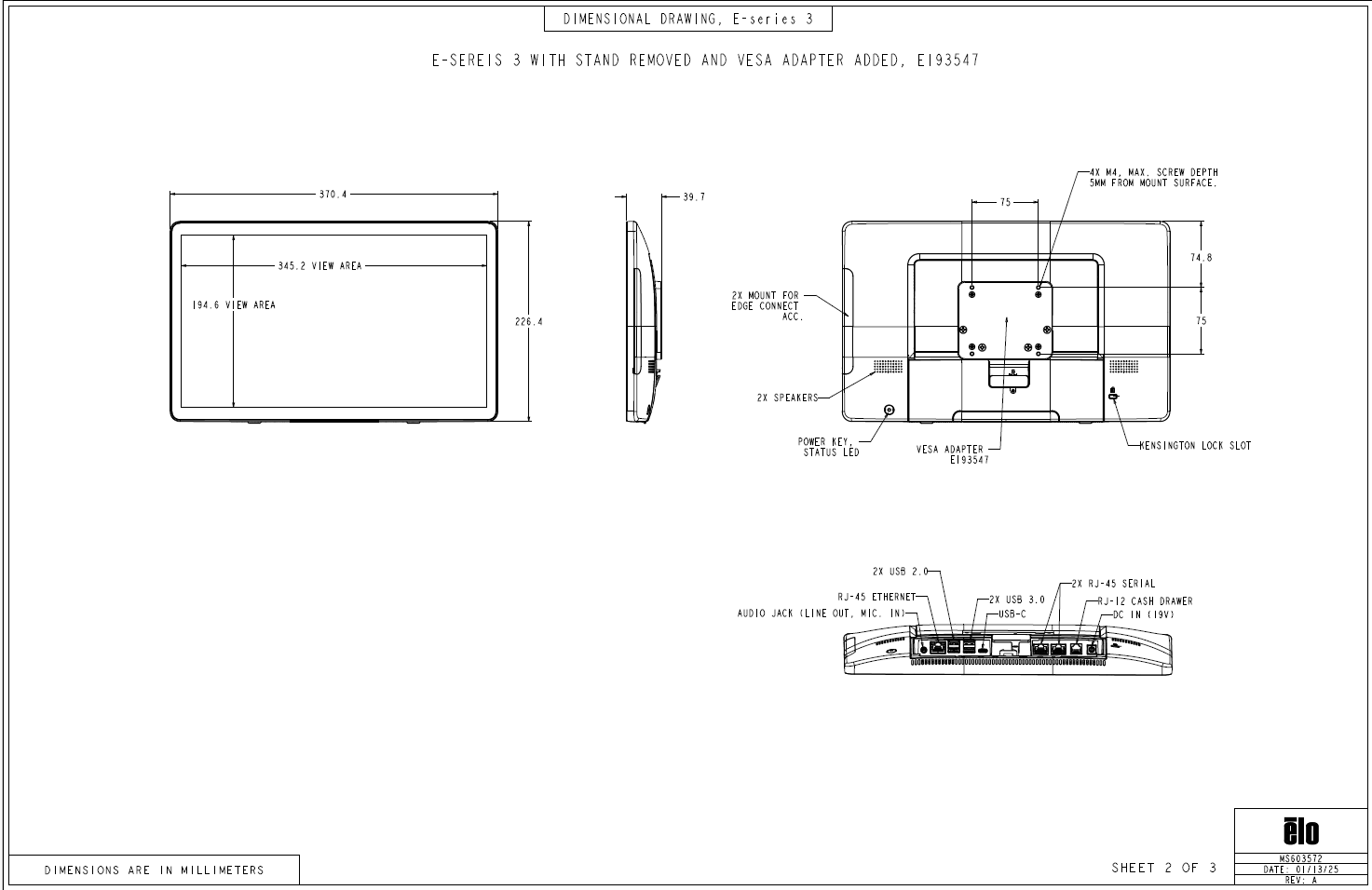

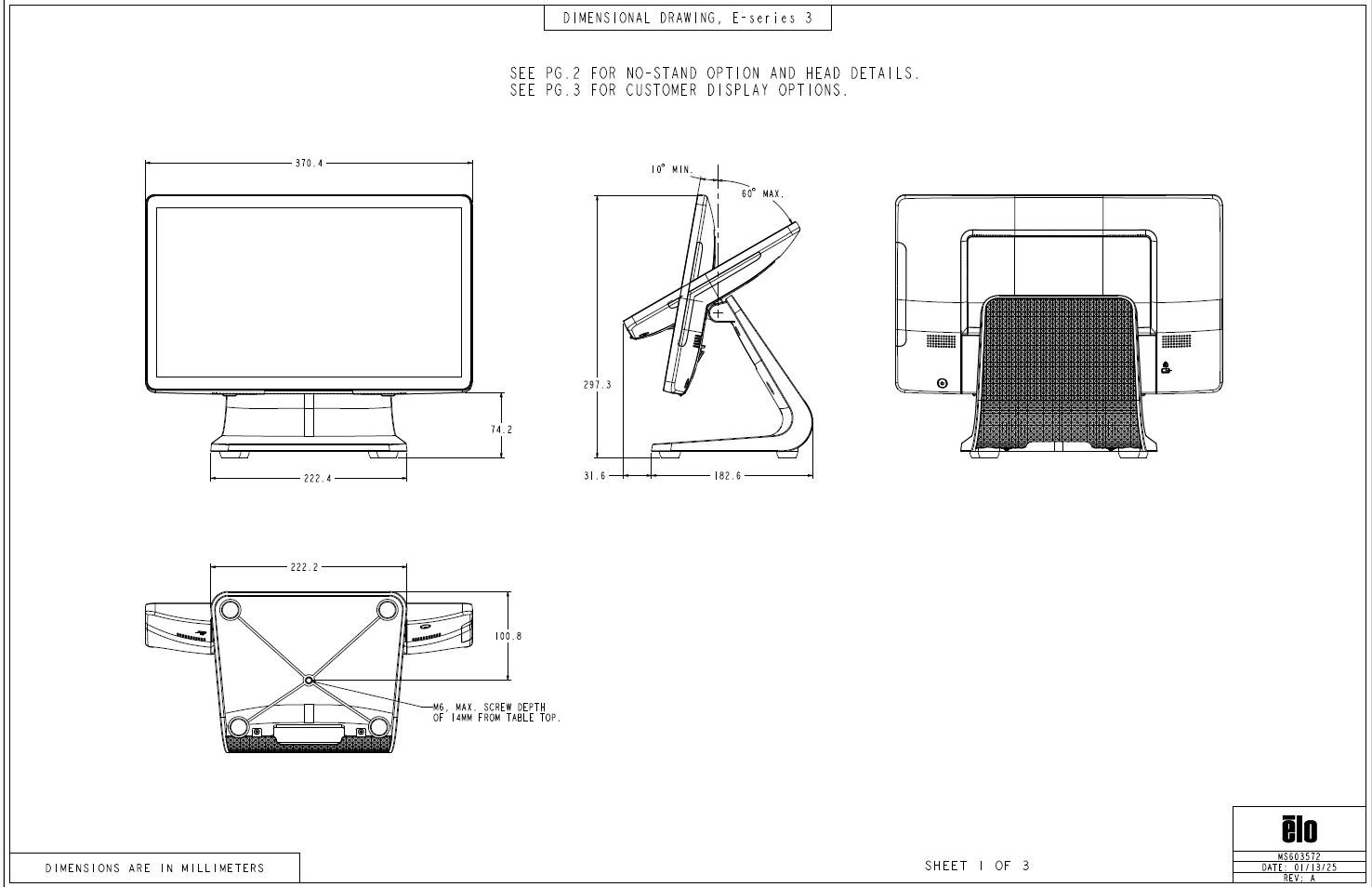

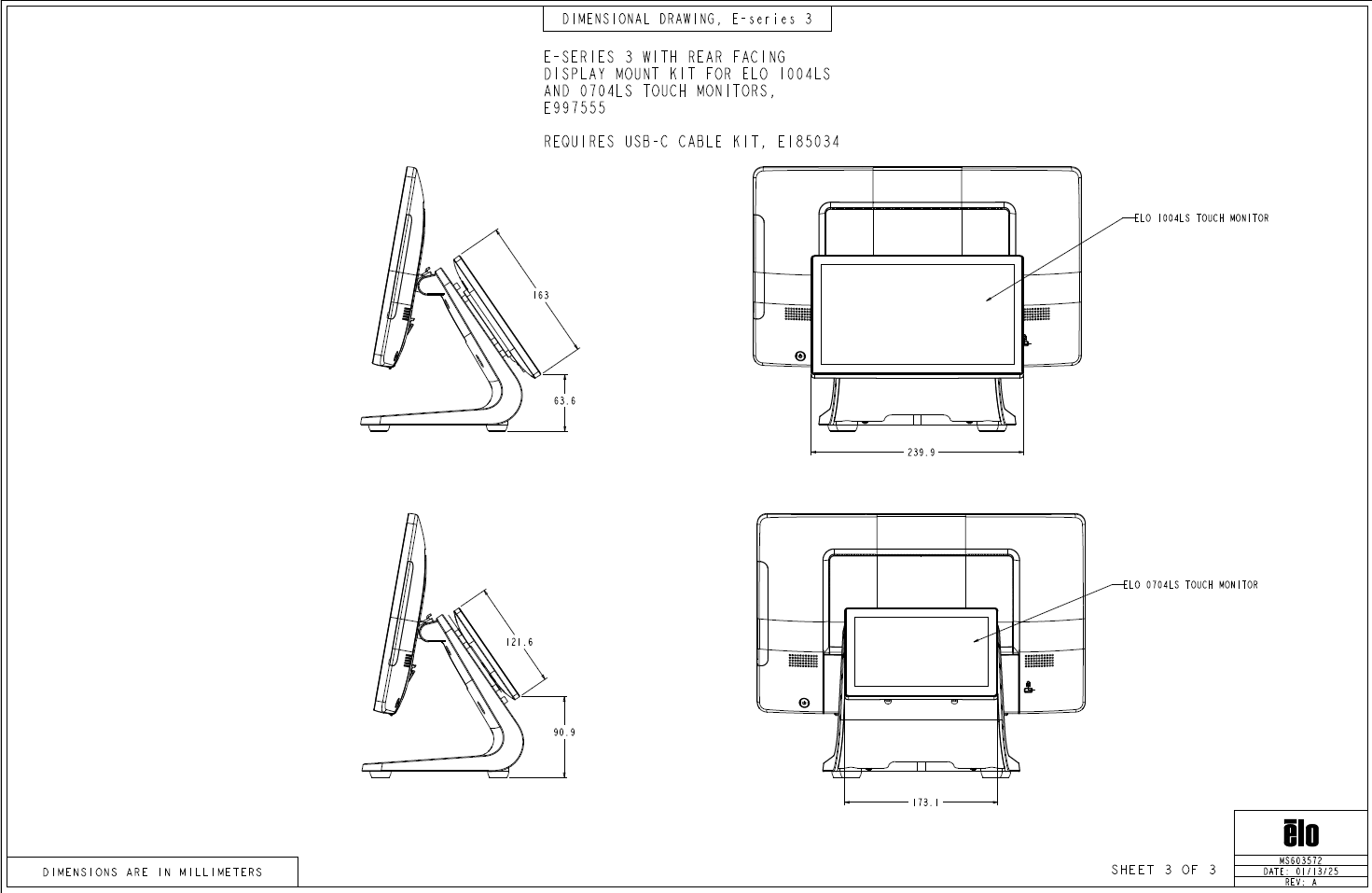

本文提供E系列3 AIO的尺寸图纸

适用零件编号：

  • 无操作系统，8GB RAM，128GB SSD，无线 - E850098
  • Windows 11，8GB RAM，128GB SSD，无线 - E849902
  • 无操作系统，8GB RAM，128GB SSD - E850312
  • Windows 11，8GB RAM，128GB SSD - E849711
  • 无操作系统，16GB RAM，256GB SSD，无线 - E153661
  • Windows 11，16GB RAM，256GB SSD，无线 - E153259

下载上述图纸
