如何访问1502L显示器上的工厂OSD菜单？

本文介绍如何在1502L桌面显示器上访问工厂OSD菜单

以下是访问1502L桌面显示器工厂OSD菜单的步骤。

1. 将 视频源 连接到显示器并 打开AC

2. 在关闭DC电源的情况下，按下 “选择”键和DC电源按钮以 打开


3. 当屏幕亮起时，松开并按下 “菜单”键

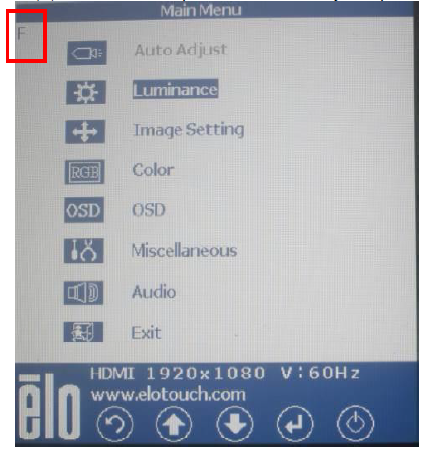

4. 选择 “F”并按下 “选择”键以打开工厂菜单。

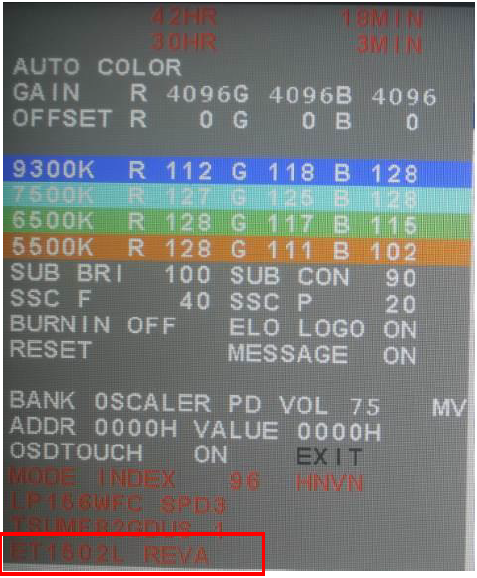

5. 你现在在工厂OSD菜单中
