1902L 显示器背面的 VESA 支架是什么？

本文提供了1902L触摸显示器背面VESA安装类型的信息

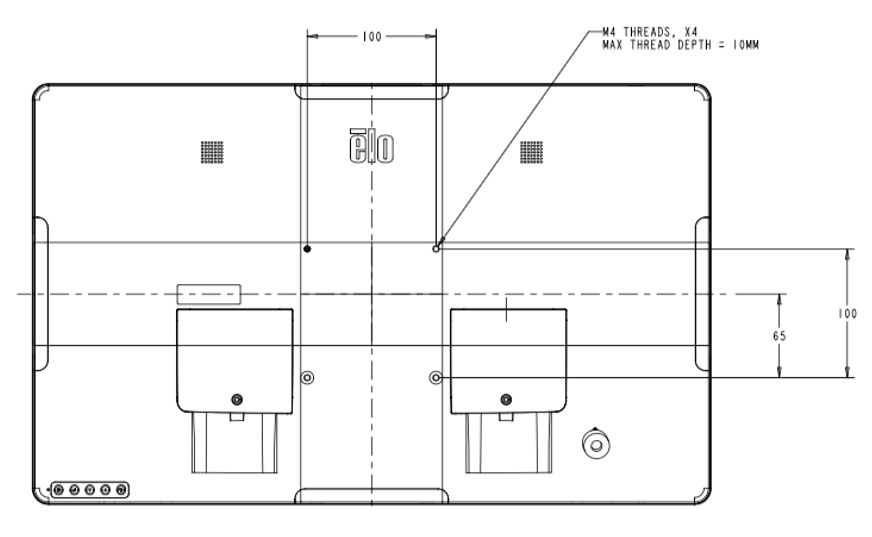

1902L触摸显示器背面提供了一个四孔100 x 100 mm的安装接口，可用于M4螺钉。请使用十字螺丝刀拆卸支架以访问安装接口。VESA FDMI兼容的数量编码为VESA MIS-B, 75, C 和 VESA MIS-D, 100, C.
