我可以在哪里找到有关 E462672 Elo 2293L-2294L 机架安装面板套件的信息？

本文提供关于E462672 Elo 2293L-2294L机架安装边框的信息

E462672 Elo 2293L-2294L机架安装边框，仅适用于intelliTouch、SecureTouch、AccuTouch版本的产品。该支架需要12U的机架空间。

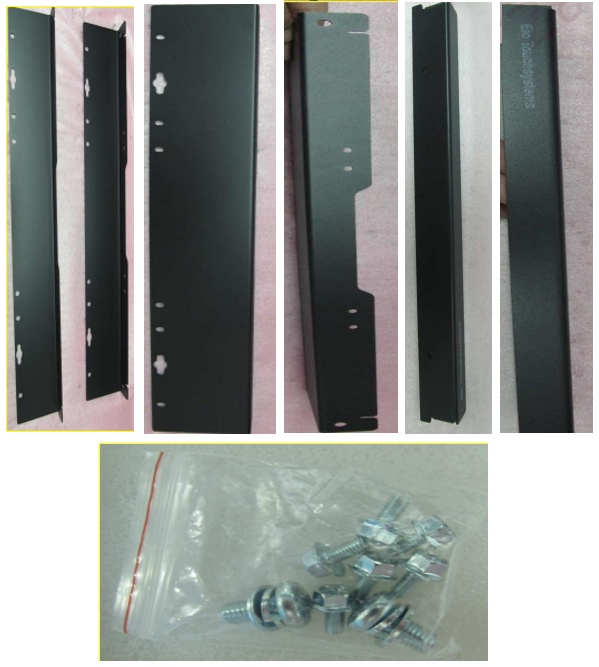

套件内容：

  • 1个 底部机架支架
  • 2个 侧面机架支架
  • 4个 螺钉，十字头，带锁垫，M6X12L-R
  • 4个 螺钉，六角头，十字头，锯齿形，M4X

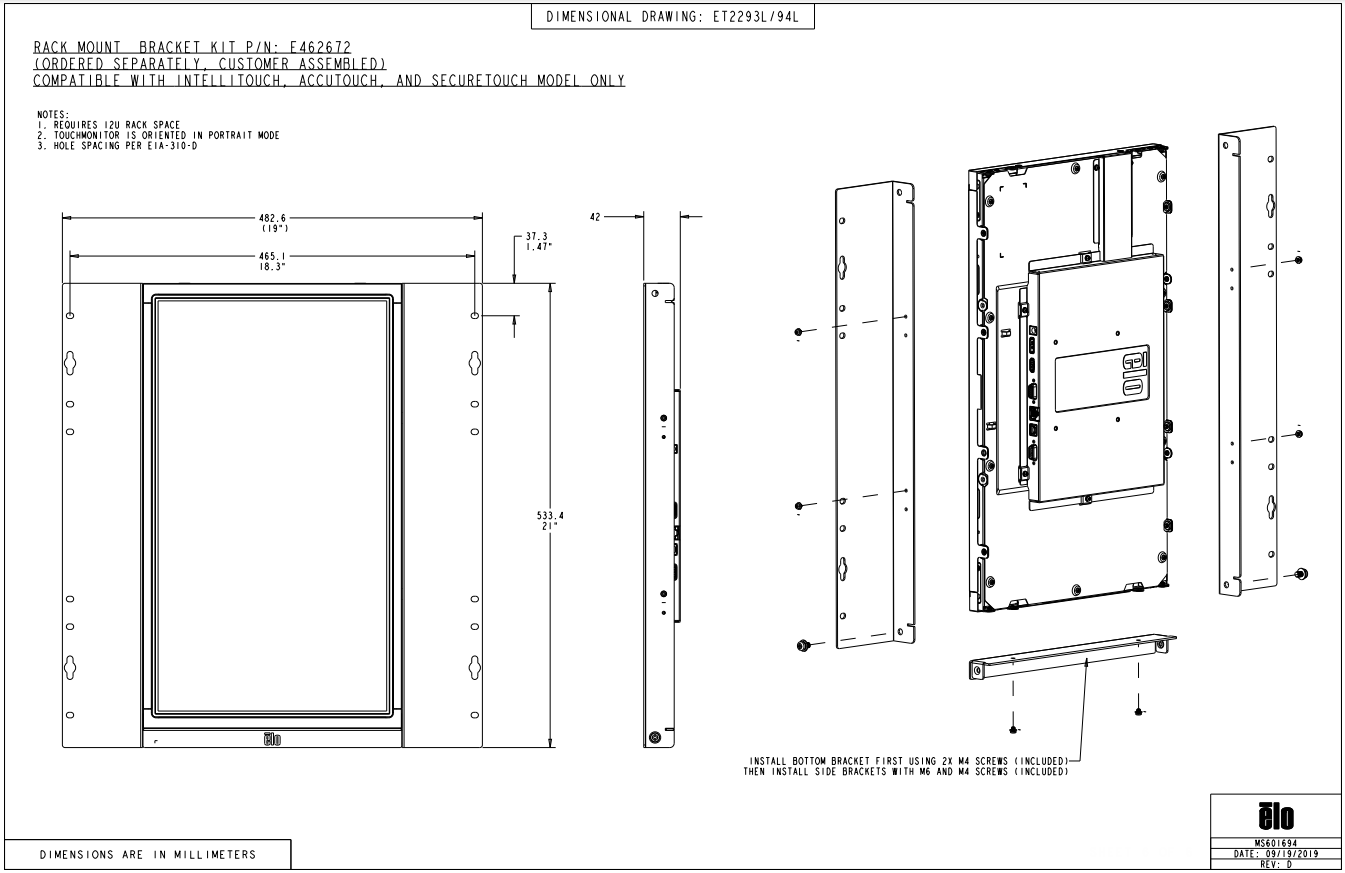

图纸和组装
