欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到有关70系列OSD菜单的信息？

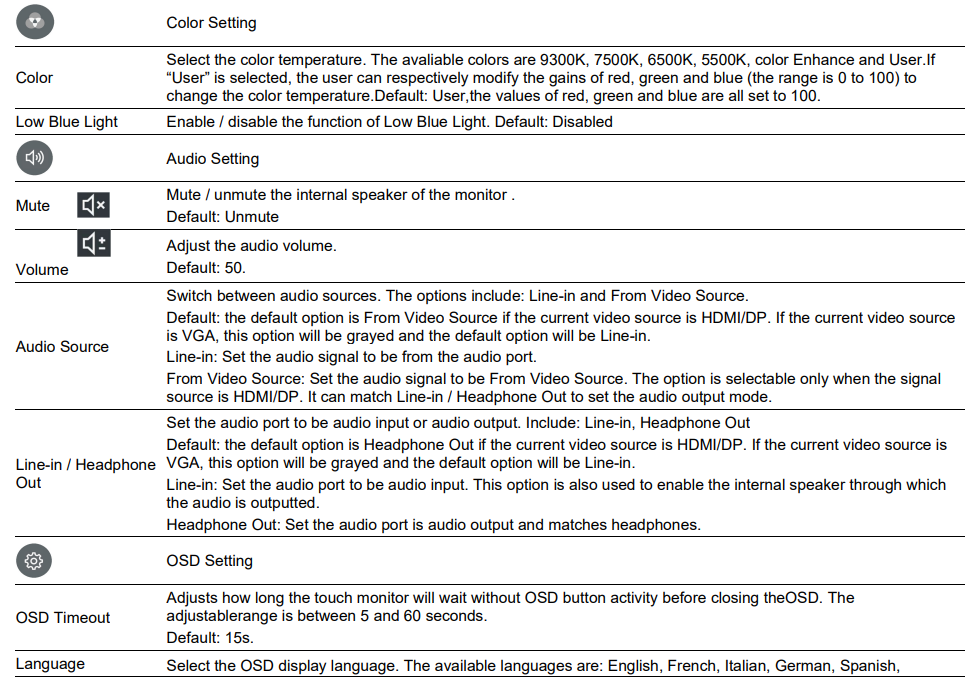

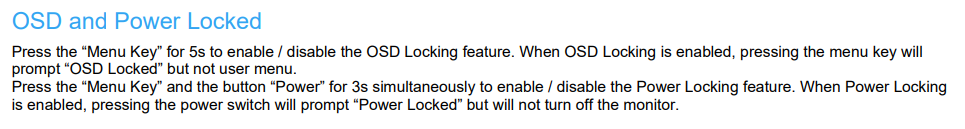

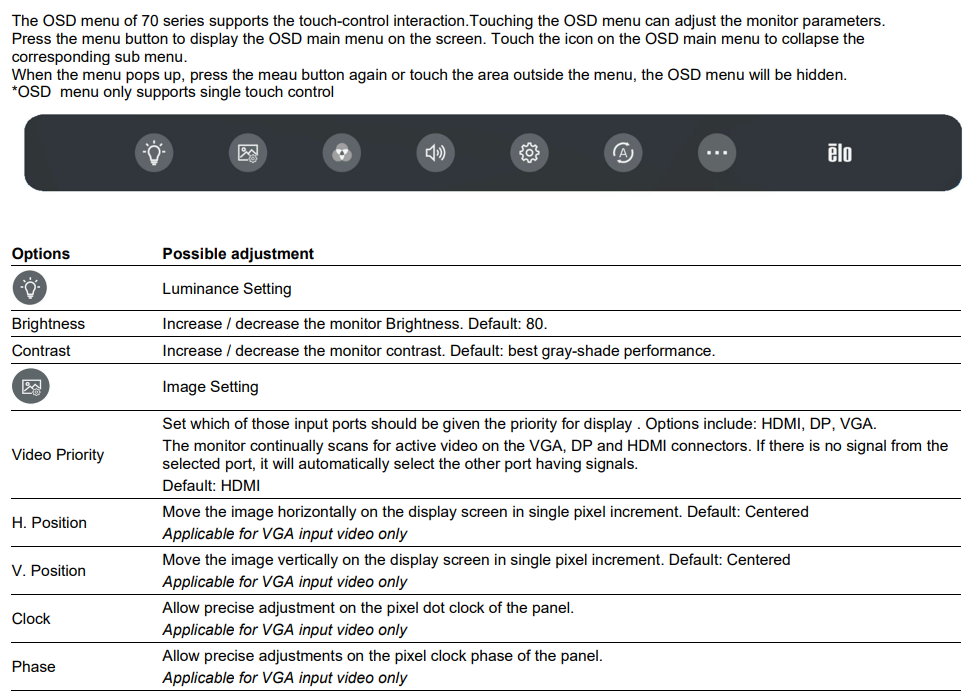

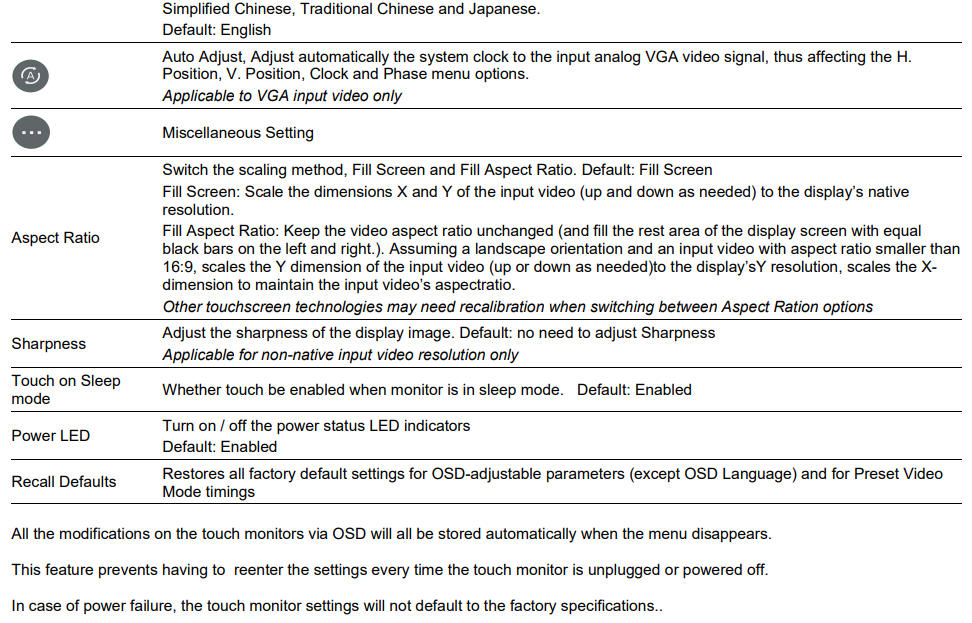

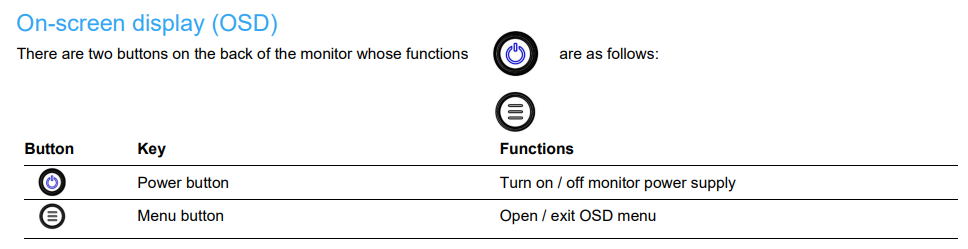

本文描述了内置于70系列触摸显示器（2270L, 2470L, 2770L）中的OSD菜单

该信息也可以在70系列用户手册中找到
