如何在3263L / 4363L显示器上安装嵌入式安装支架？

本文展示了如何在63系列开放式框架显示器上安装平板安装支架（3263L，4363L）

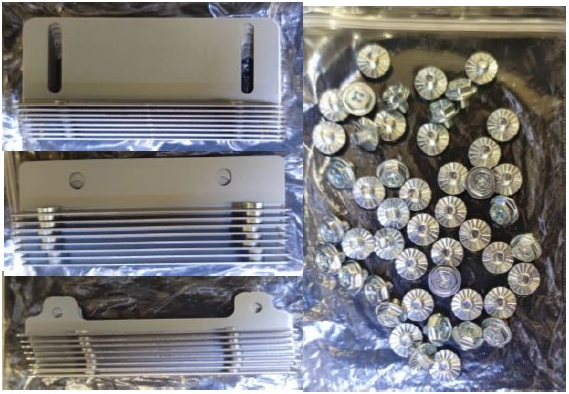

显示器包含8套平板安装支架和48颗螺丝

  • 更换支架套件可单独购买

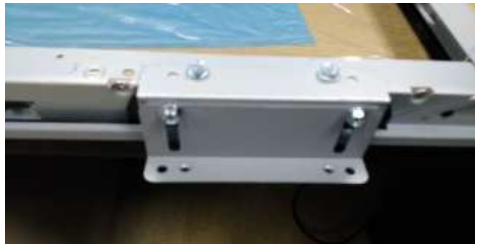

已组装支架在显示器上的示例：

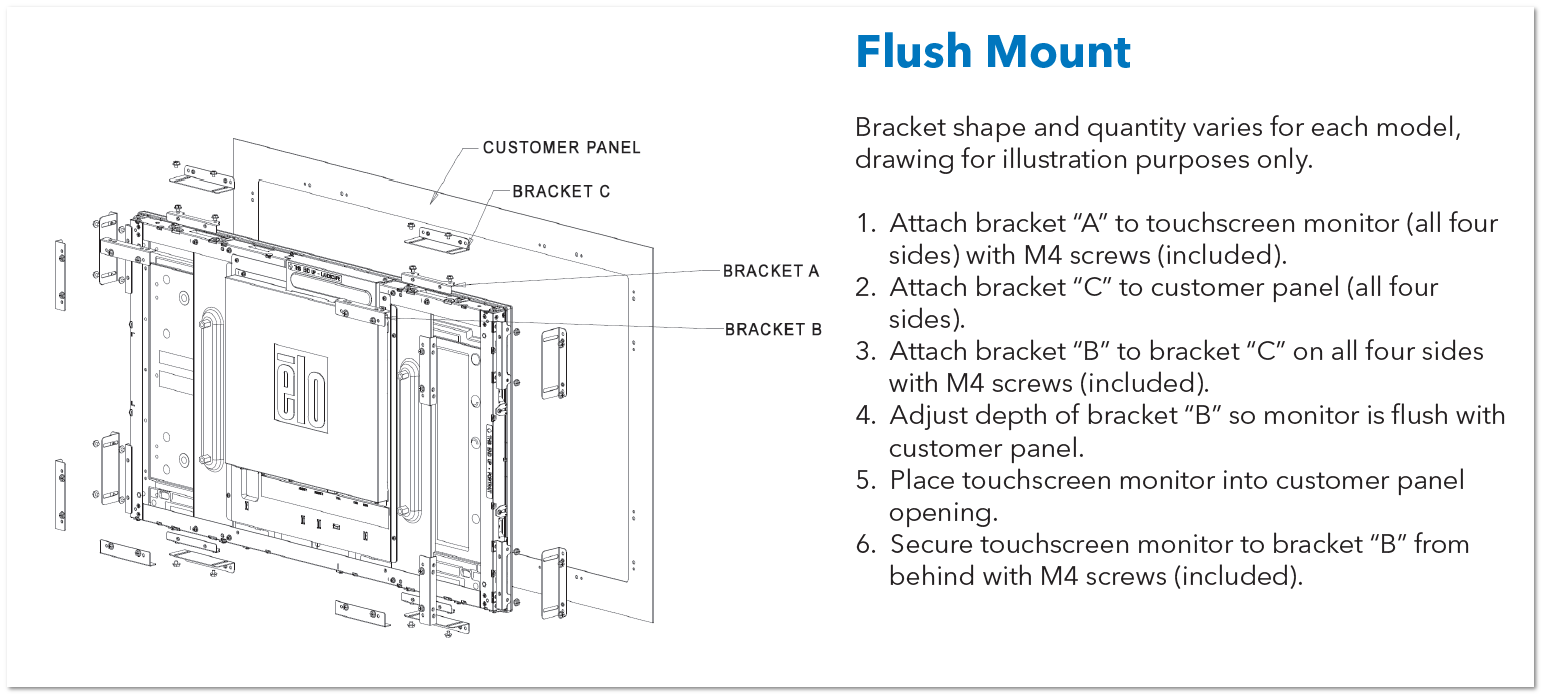

来自QIG

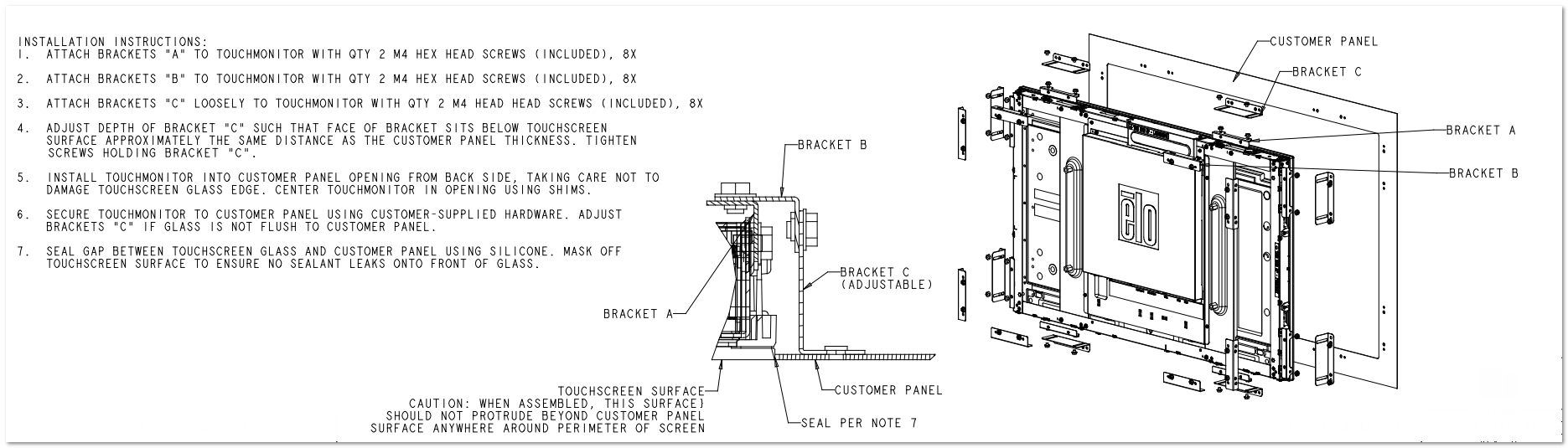

来自尺寸图 3263L：

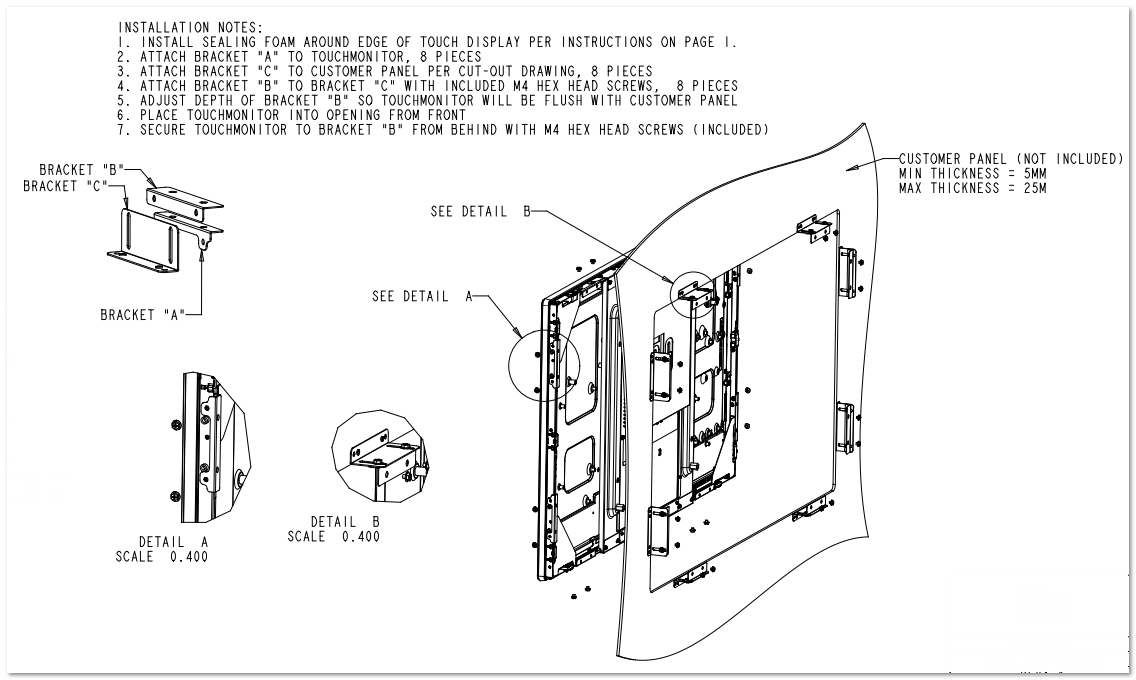

来自尺寸图 4363L：
