欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到1099L户外开放式框架显示器的尺寸图纸？

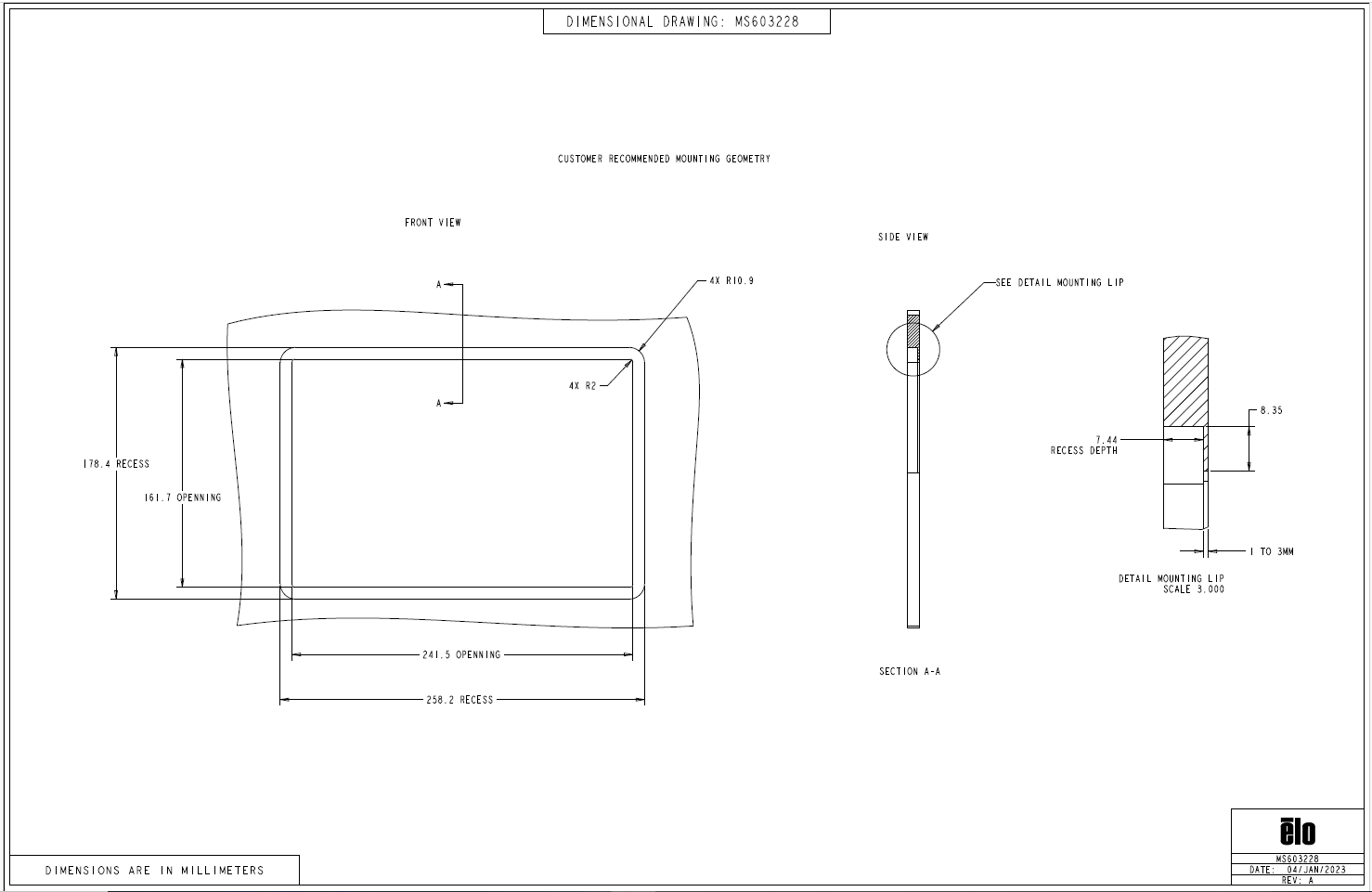

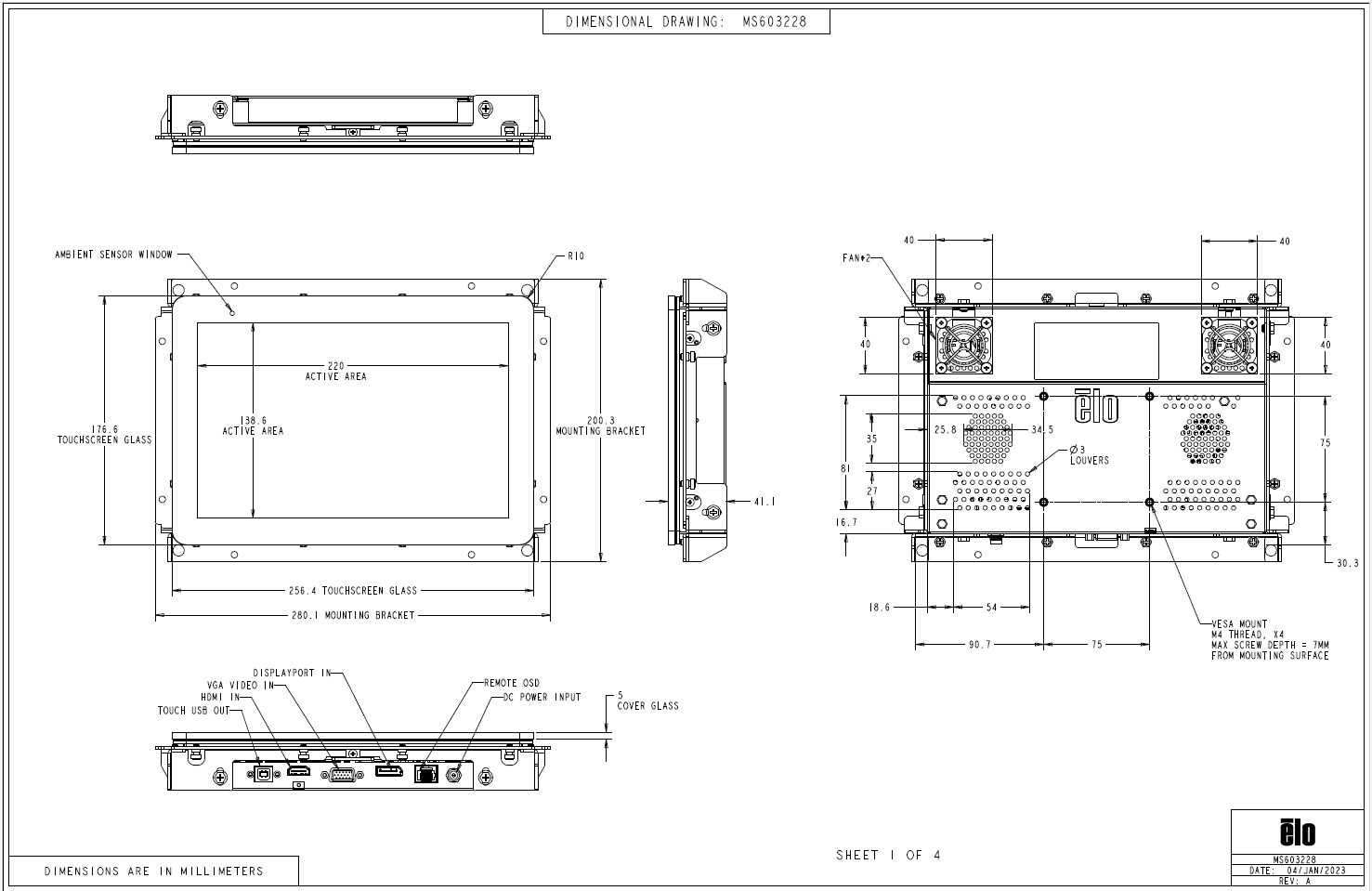

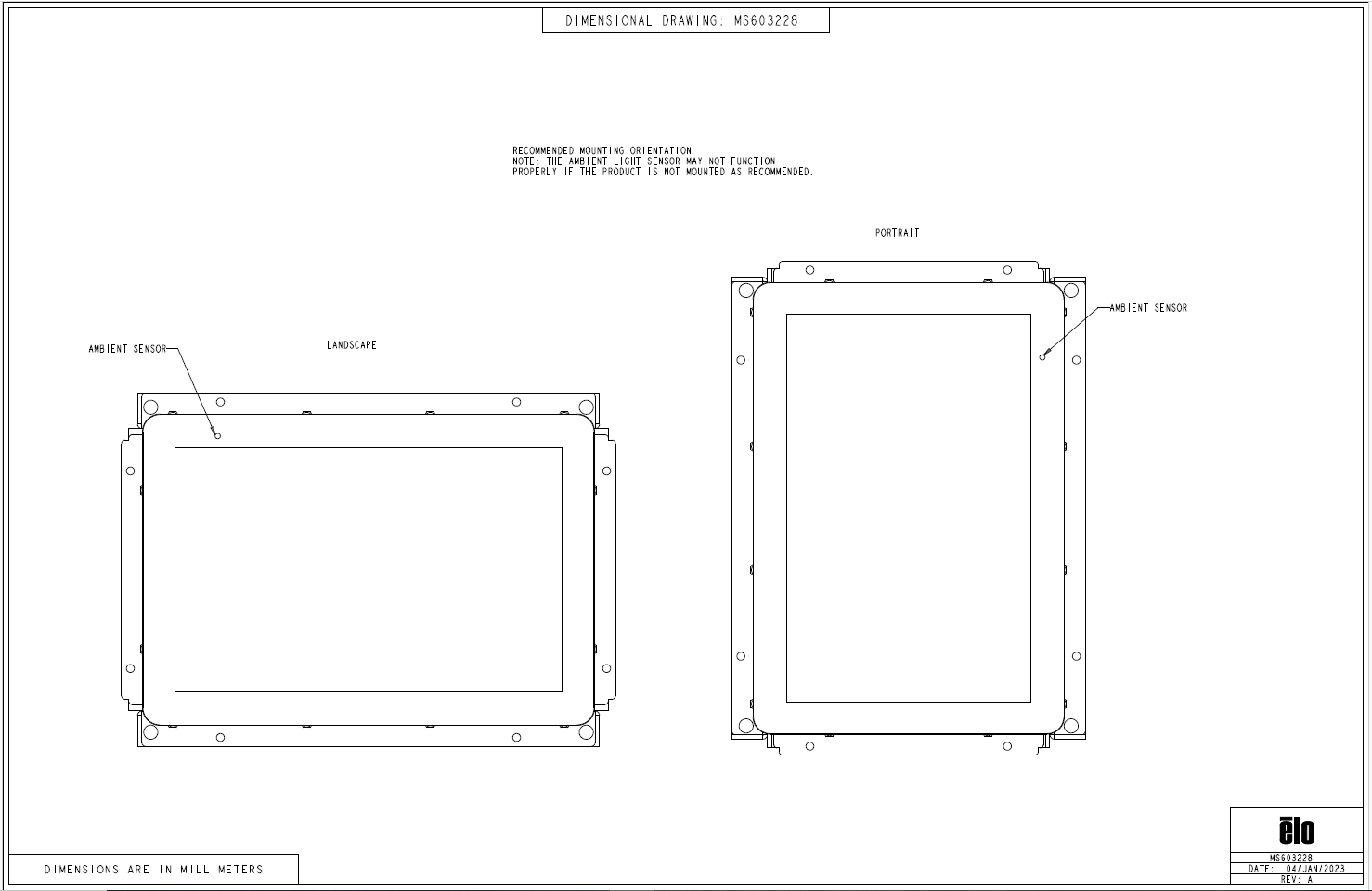

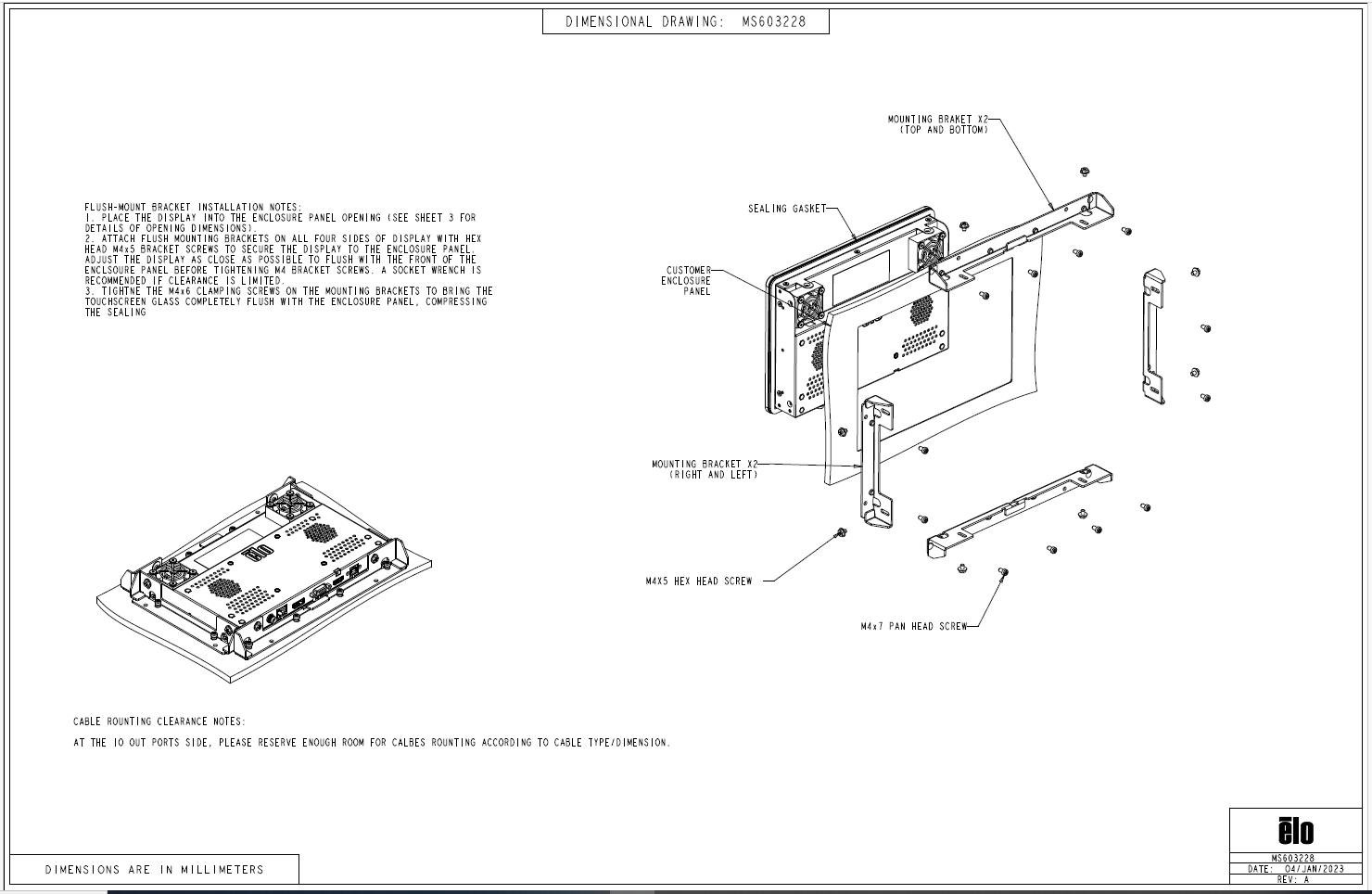

本文提供了 ET1099L 户外开放式框架触摸显示器的尺寸图纸

此外，请查看附加在本文中的图纸。
