欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到有关 E553352、Elo 20 英寸宽前装边框套件的信息？

本文提供有关 P/N: E553352, Elo 20 英寸宽前装边框套件的信息

该边框套件与配备 IntelliTouch、AccuTouch 和 SecureTouch 技术的 Elo ET2094 监视器兼容。不兼容 PCAP 设备监视器。

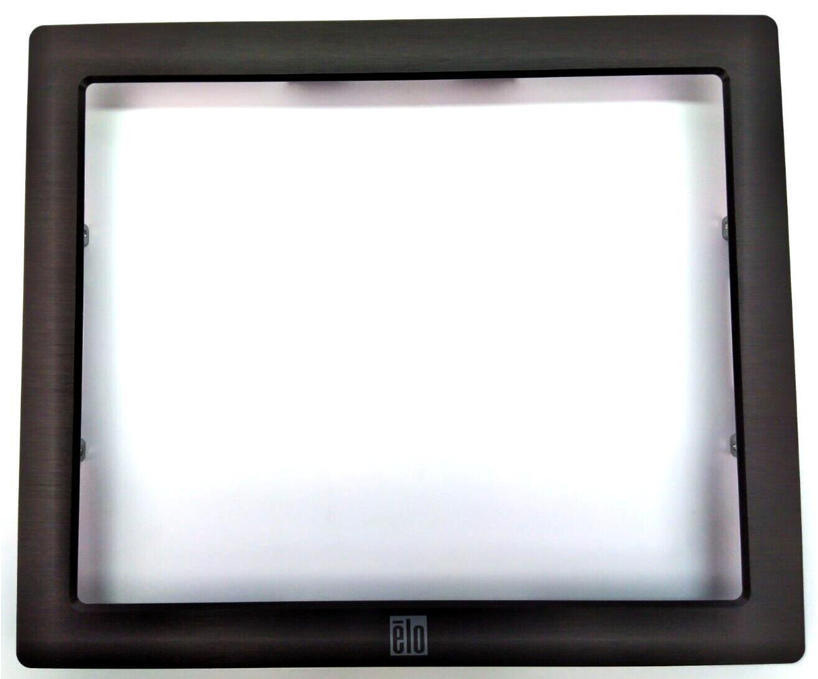

照片：
(显示的照片为 19 英寸标准宽高比监视器。2094L 的边框套件将更宽，但外观与下图非常相似)

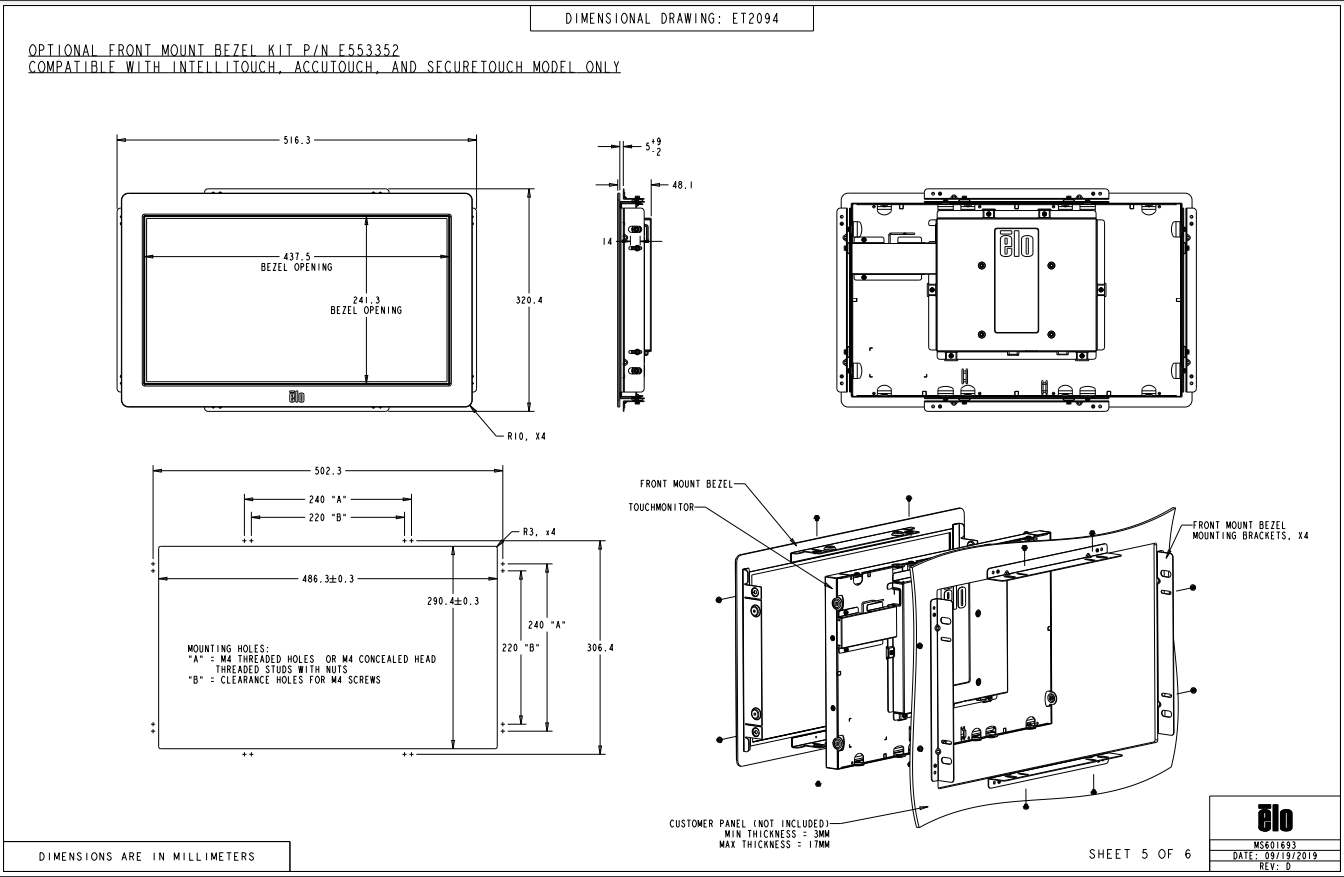

图纸

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
