我在哪里可以找到有关1099L户外开放框触摸显示器电源适配器的信息？

本文提供了1099L户外开放式框架触摸显示器电源适配器的规格

ET1099L户外开放式框架触摸显示器不配备电源适配器。Elo单独提供80W、12VDC电源适配器，带锁定连接器和区域电缆套件。有关此电源适配器套件的零件号码和详细信息，请参见我们的知识文章：用于户外开放框架的80W电源砖和电缆套件

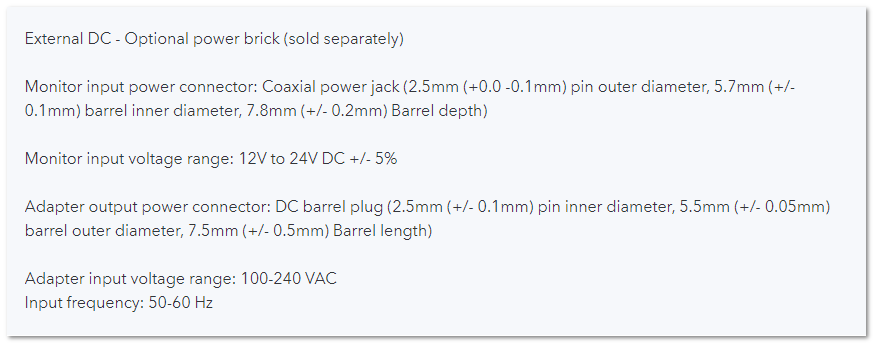

以下是电气规格和连接器尺寸：
