欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

如何访问Elo 1302L显示器的工厂OSD菜单？

本文提供了如何在 ET1302L 显示器上访问出厂 OSD 菜单的说明

当设备开机时，同时按住“选择”按钮，将可以在 OSD 中访问“出厂”菜单。

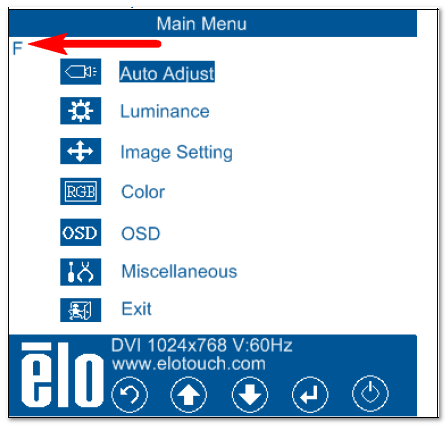

使用箭头键导航到“F”选项，然后按“选择”按钮进入出厂 OSD 菜单。

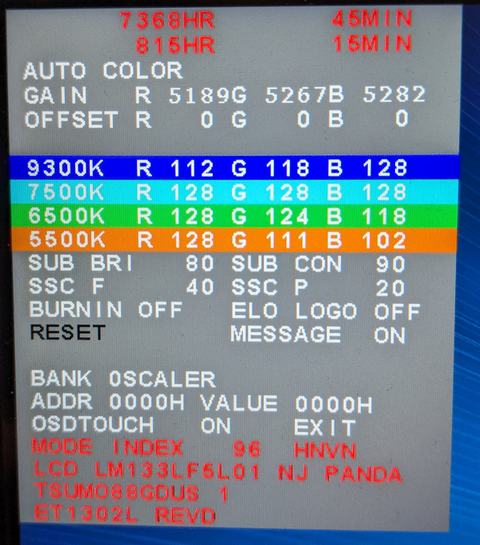

下面展示了 1302L 出厂 OSD（注意：固件版本显示在菜单底部。在此屏幕截图中，固件版本为 REVD）
