欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到有关 E641484: Kit, RJ45 to DB9 cable, EloPOS 的信息？

本文列出了与EloPOS系统一起提供的E641484：RJ45至DB9电缆套件的信息

描述

  • 长度：900mm
  • RJ45垂直公头至DB9垂直公头 （直通电缆类型）

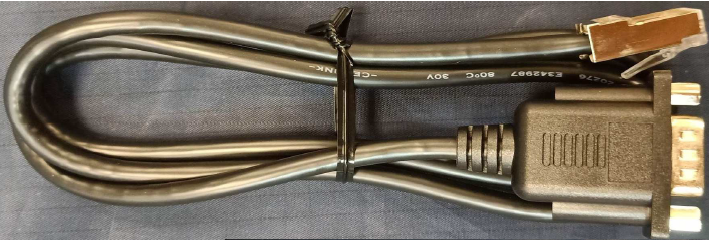

照片

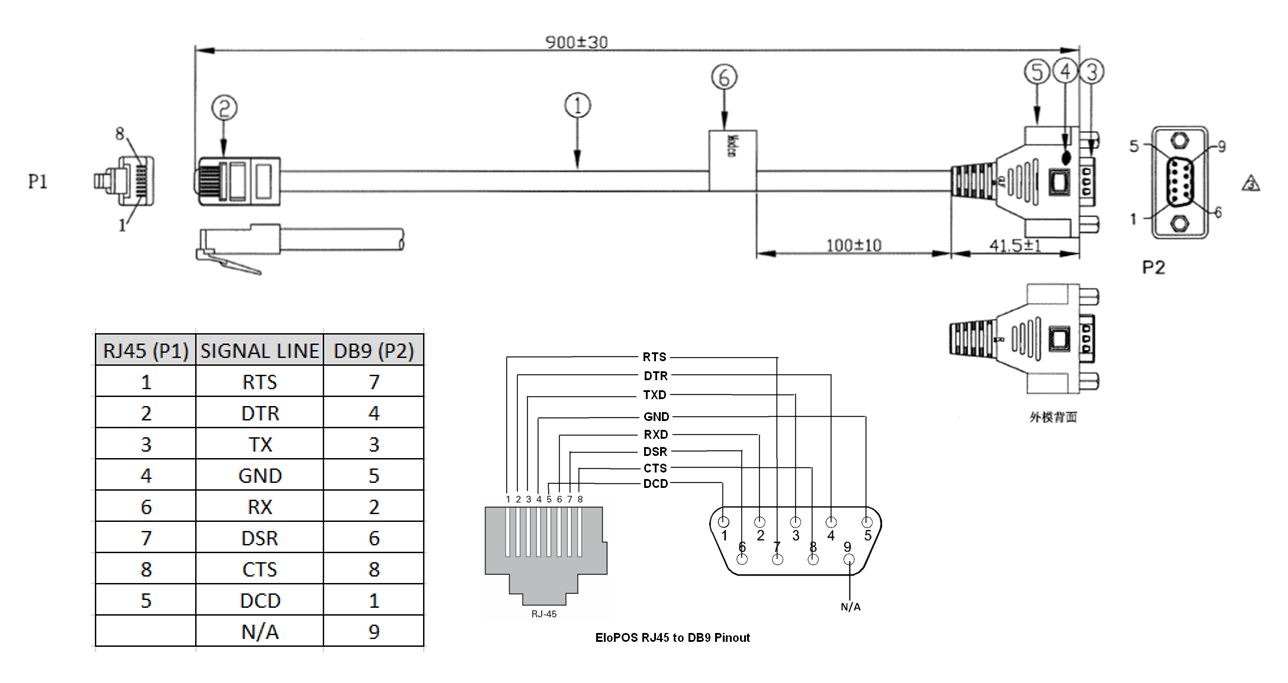

接线图和引脚图
