欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

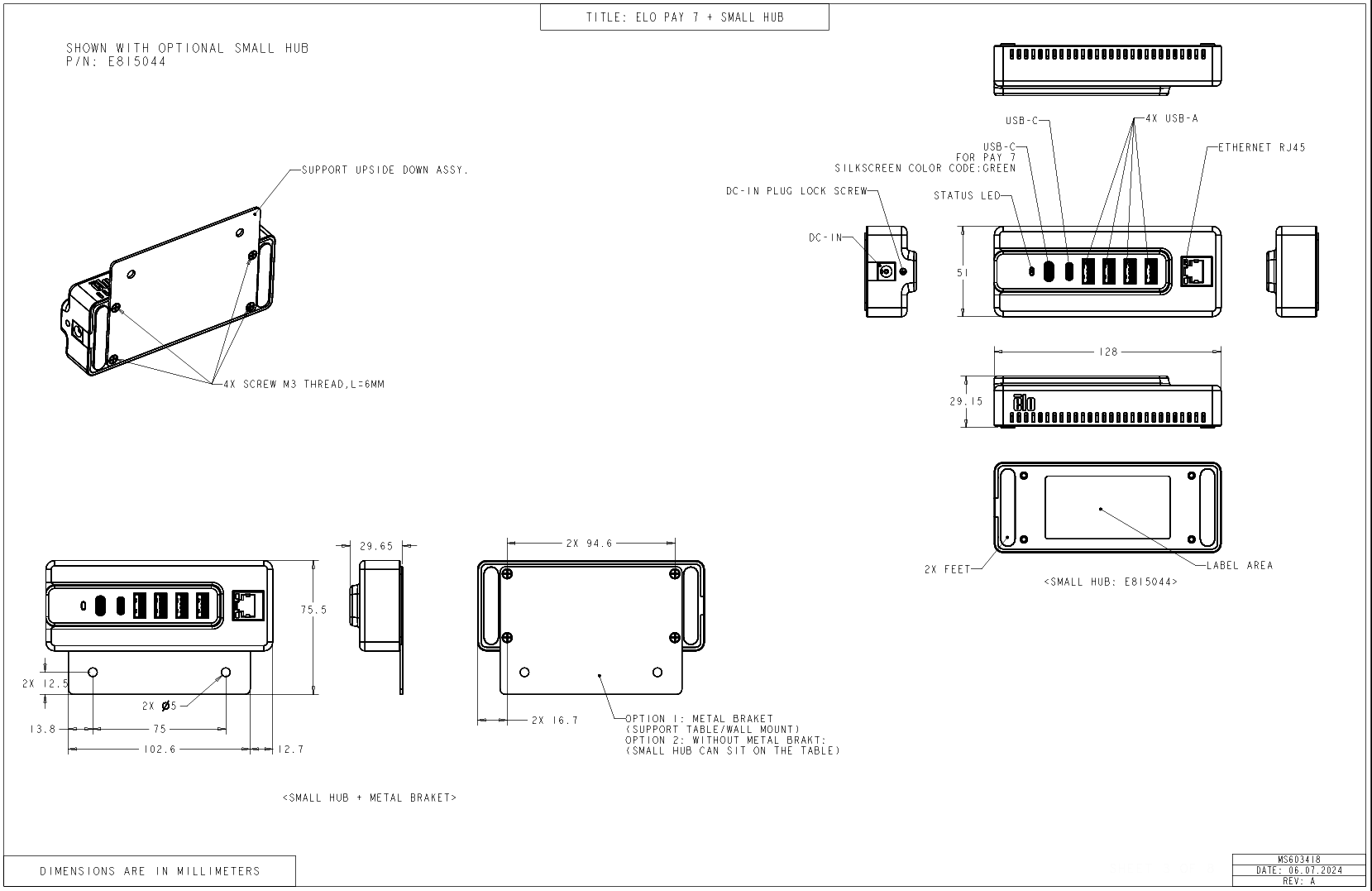

我在哪里可以找到 E815044 小型 I/O 集线器的尺寸图？

本文提供了 E815044 小型 I/O 集线器的尺寸图。

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
