Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen über die P/N: E038989 Rückwärtiger Montagepol für die X-Serie?

Dieser Artikel enthält Informationen über die P/N: E038989 rückwärtige Pfostenmontage für die X-Serie

Nachfolgend finden Sie Informationen zu Elo P/N: E038989 Rückwärtige Pfostenmontage für X-Serie AIO TouchComputer.

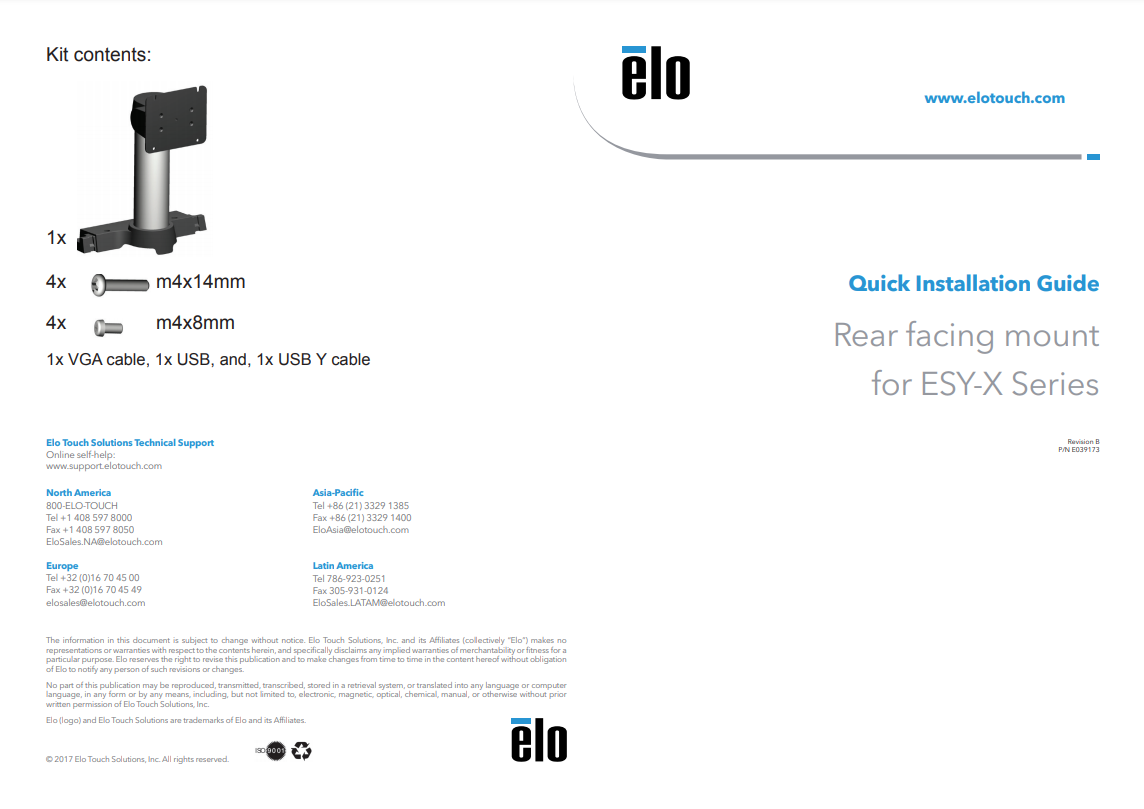

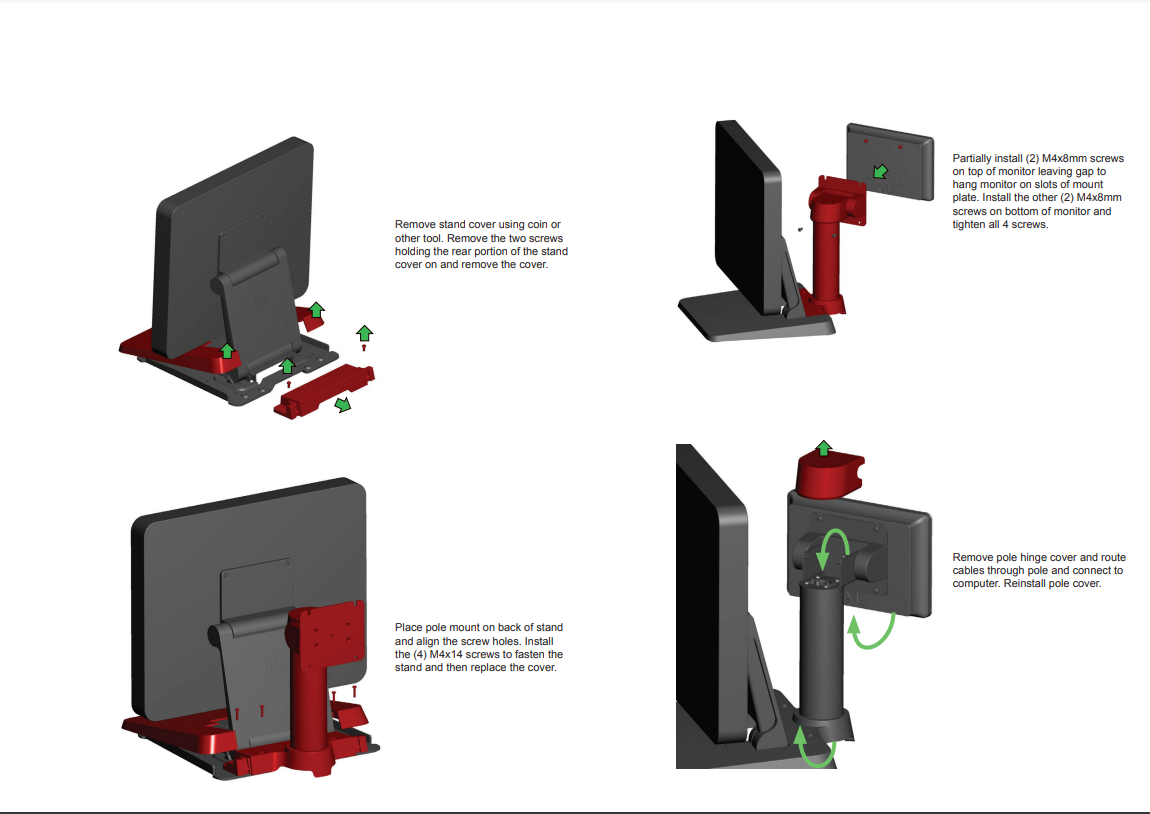

Schnellinstallationsanleitung:

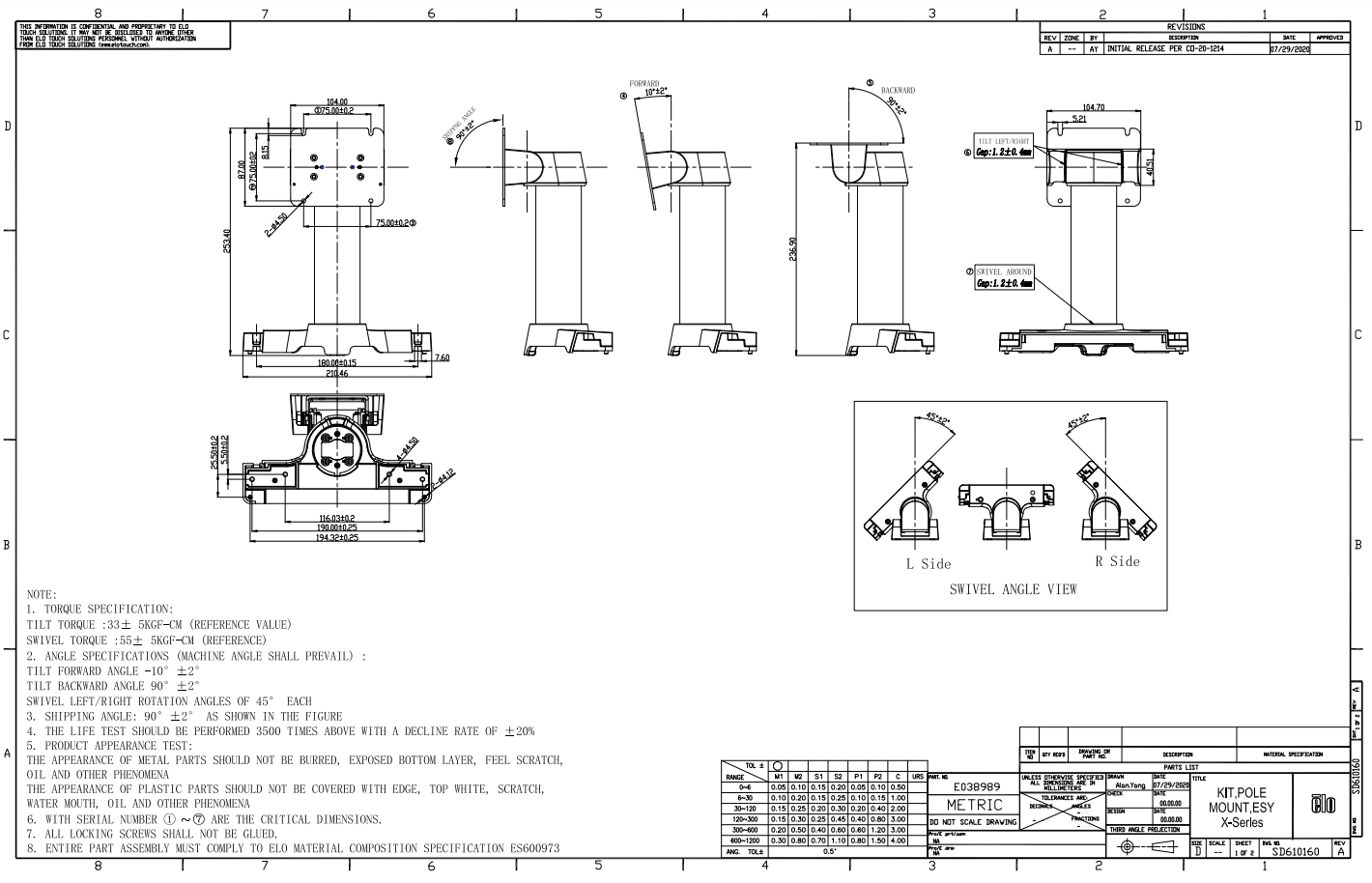

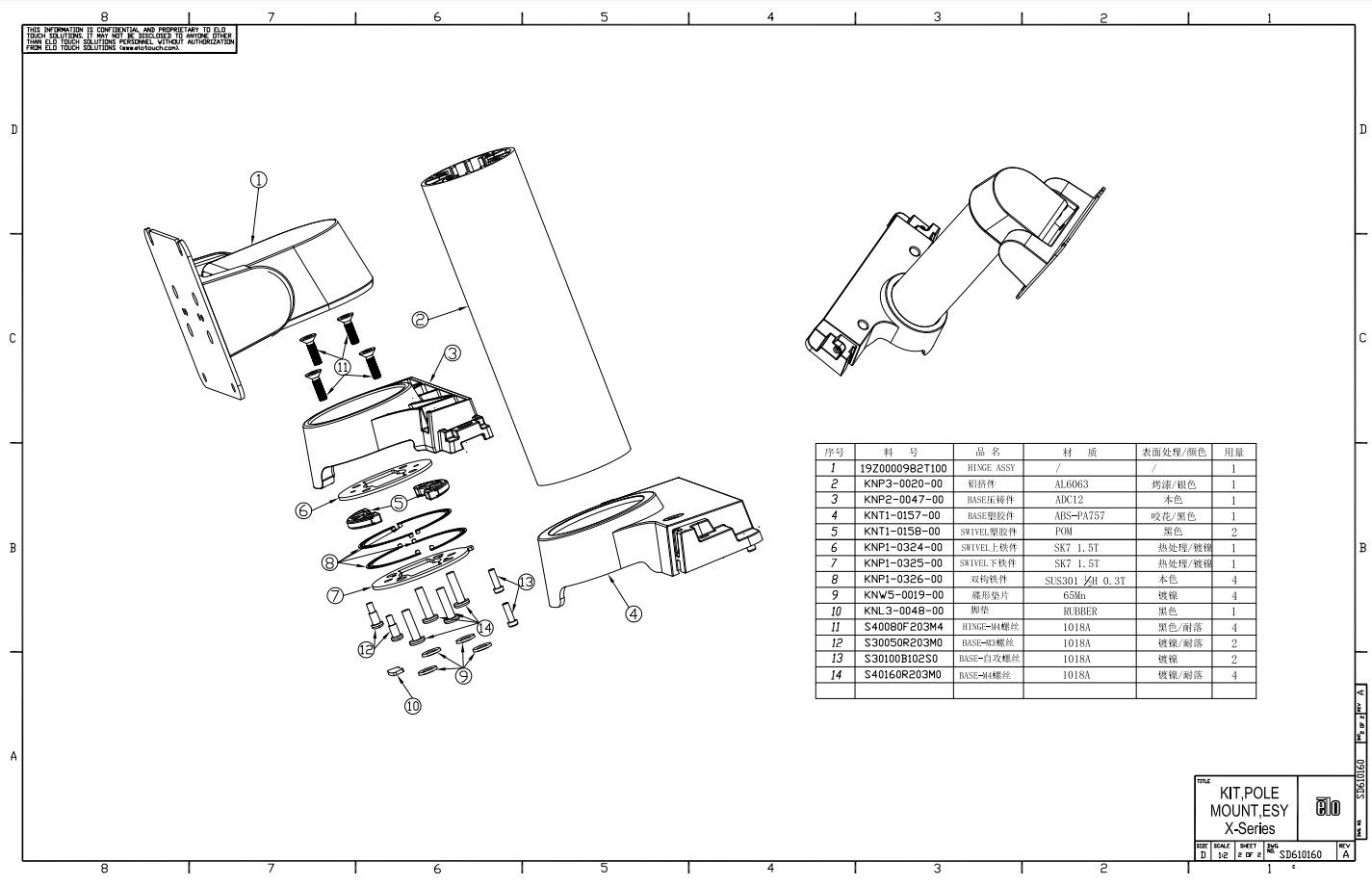

Maßzeichnungen:

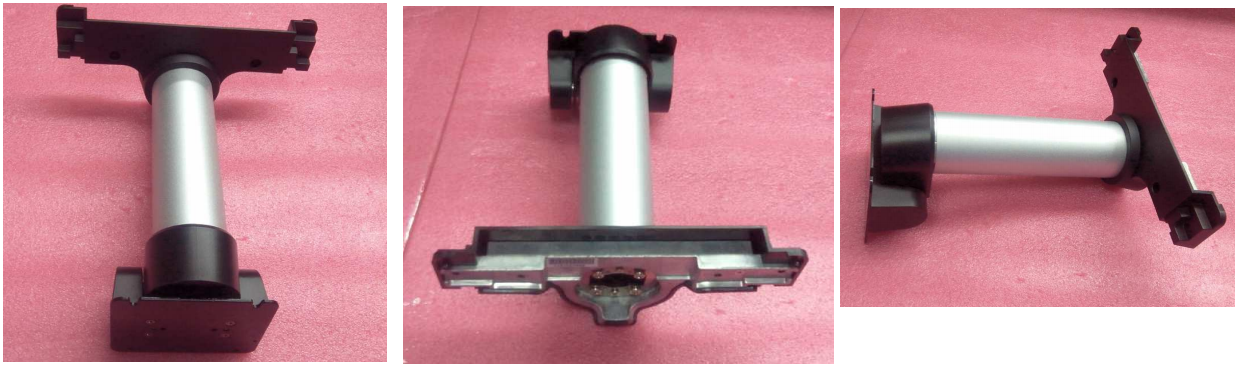

Fotos:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
