Wo finde ich die Maßzeichnungen für das E047458 6-Zoll Polmontageset?

Dieser Artikel stellt die E047458, 6-Zoll-Mastenmontagesatz-Dimensionierungszeichnungen als Bild zur Verfügung

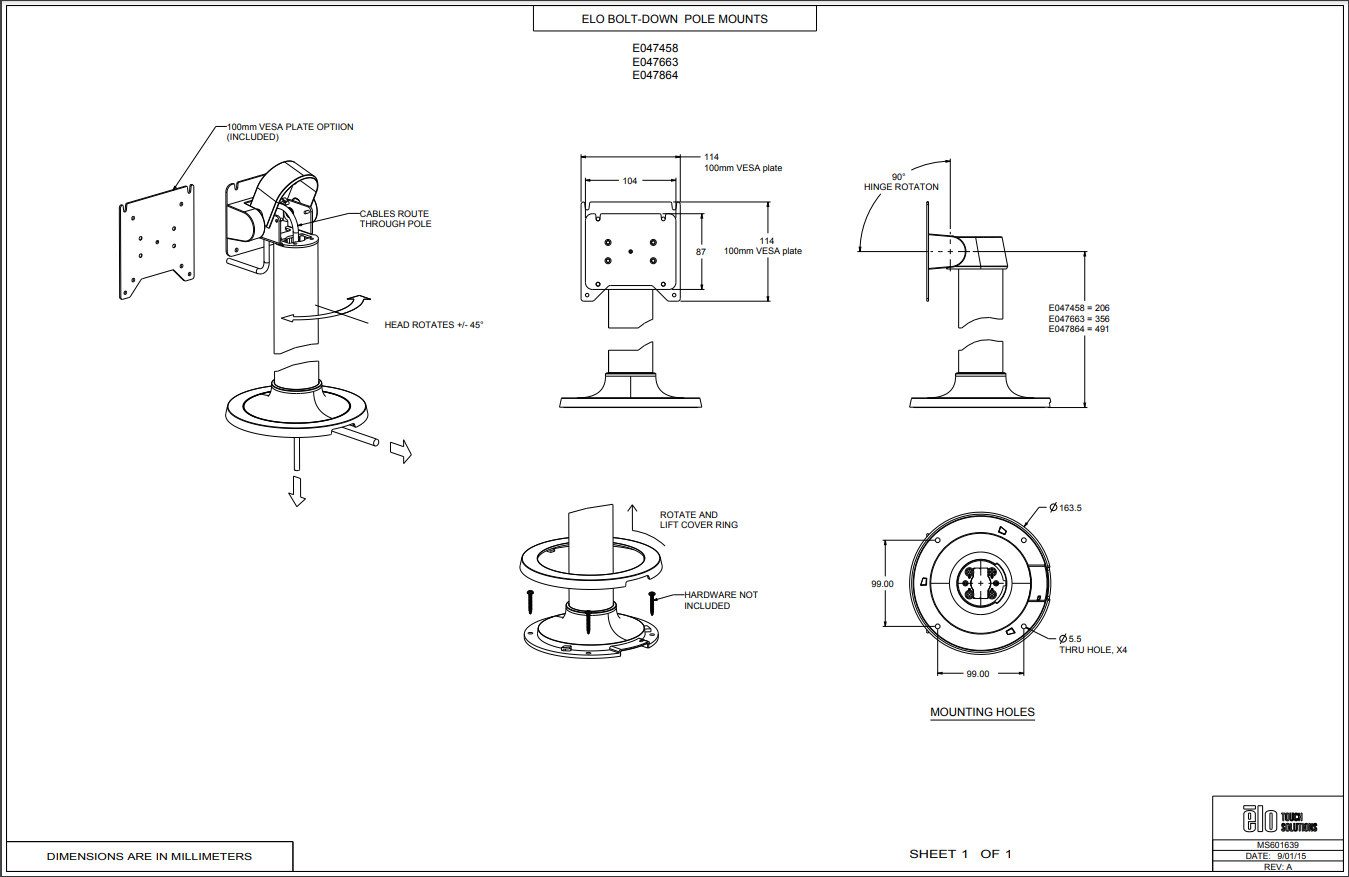

E047458, 6-Zoll-Mastenmontagesatz-Dimensionierungszeichnungen

Die nachstehende Zeichnung ist auch auf der Elo-Website HIER zu finden

Fordern Sie eine CAD-Zeichnung an HIER

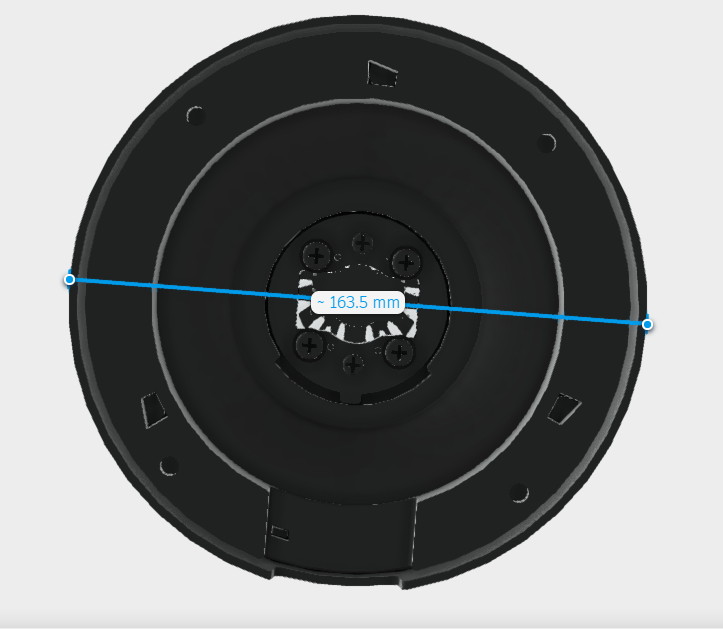

Unten ist der Basisdurchmesser des Stands = 163,5 mm dargestellt
