Wo kann ich eine Maßzeichnung für das E-Series 2-Gerät finden?

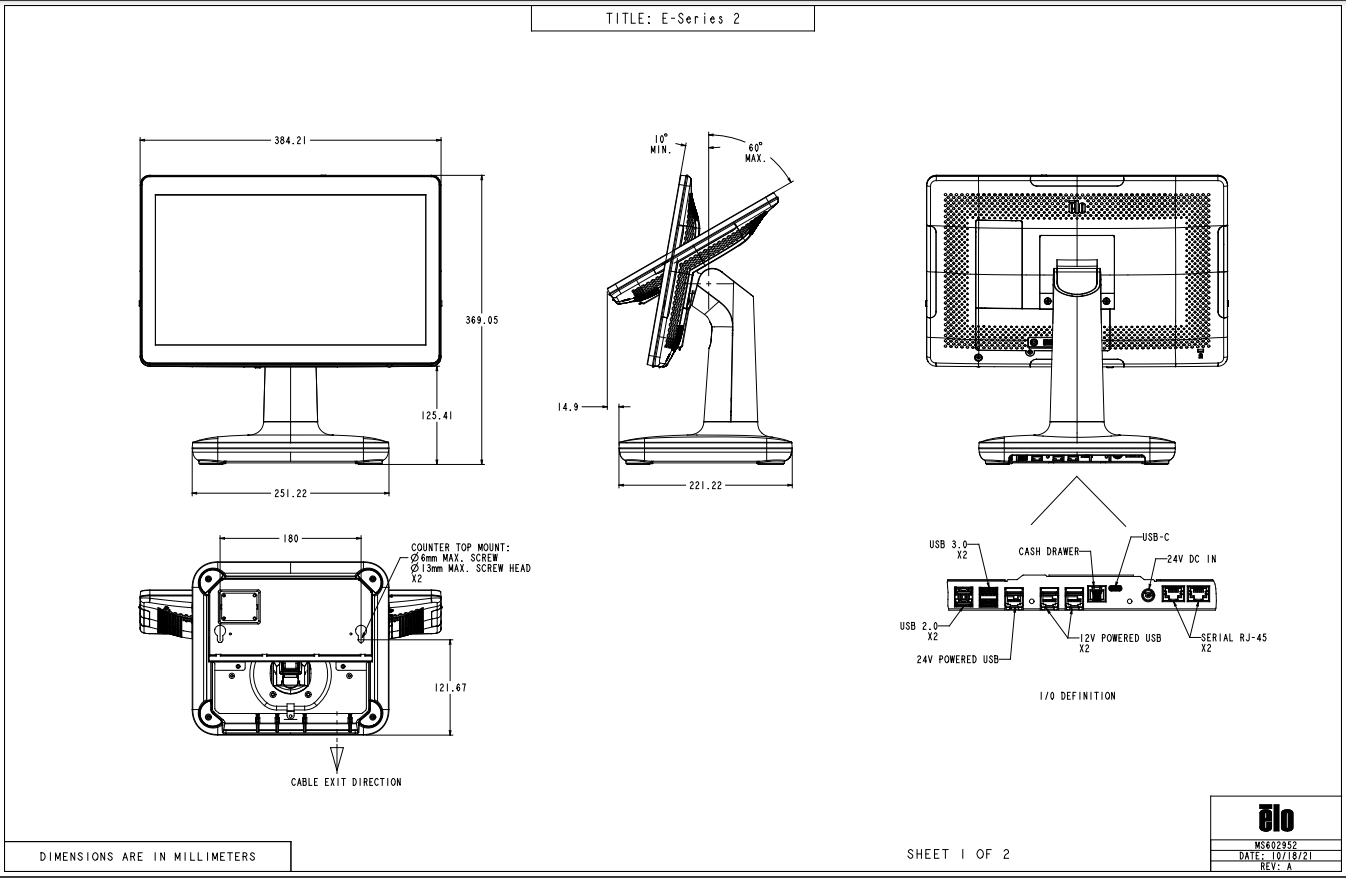

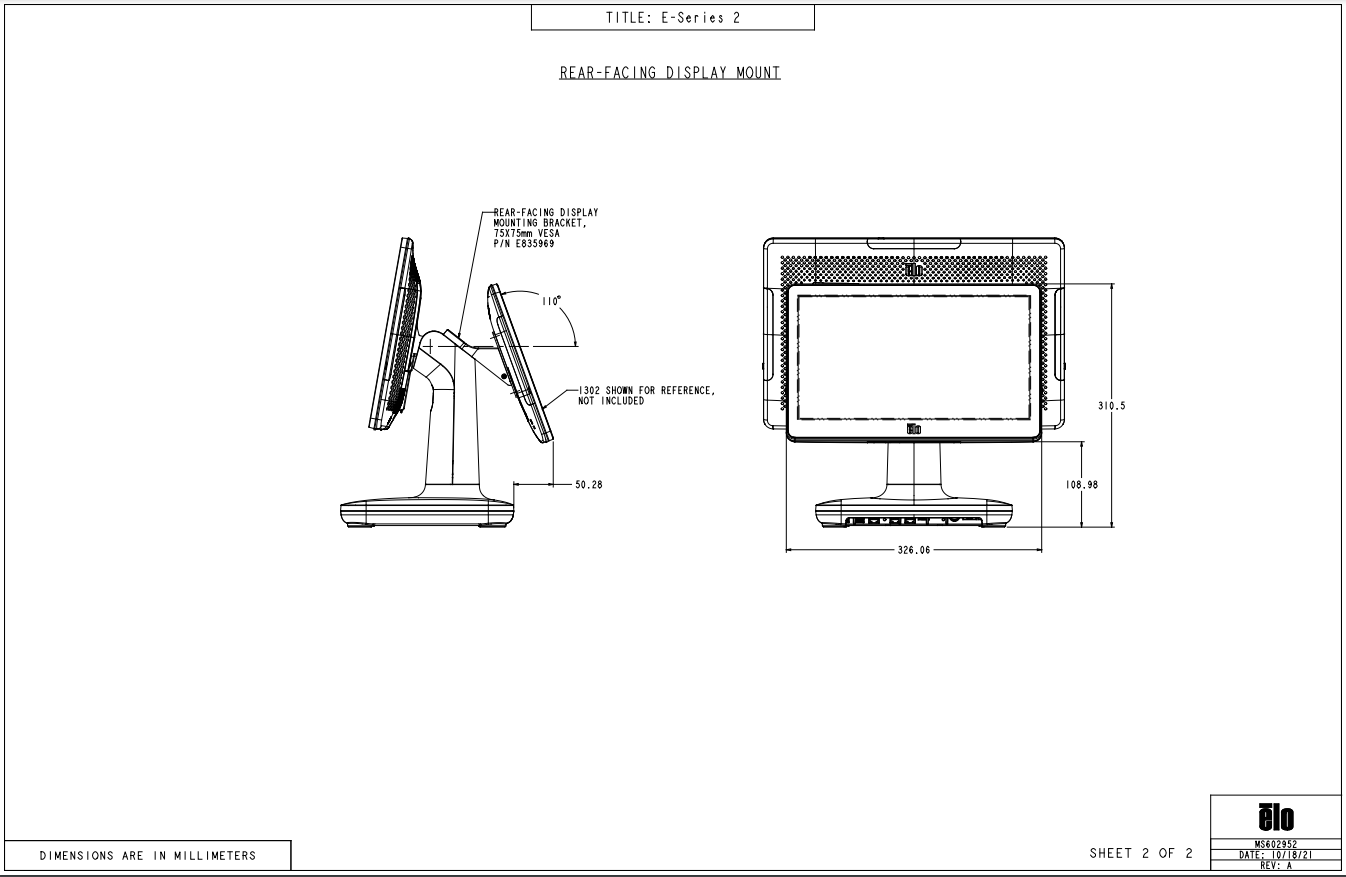

Dieser Artikel liefert die maßstabsgetreue Zeichnung für den E-Series 2 AIO Touchcomputer.

Die Zeichnung kann auch von der Elo-Website heruntergeladen werden.
