Wo finde ich die 3D-Zeichnungen der E-Serie?

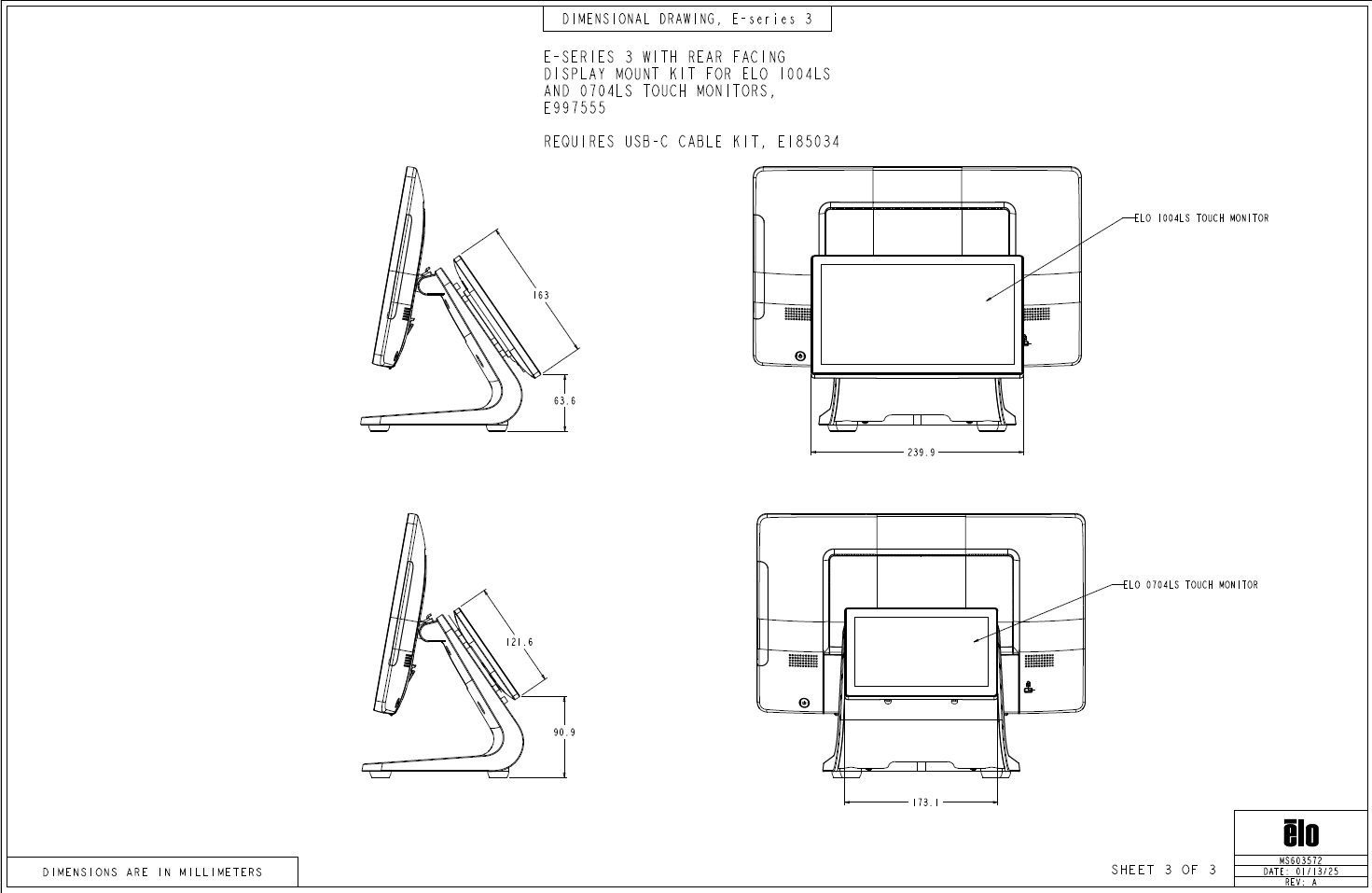

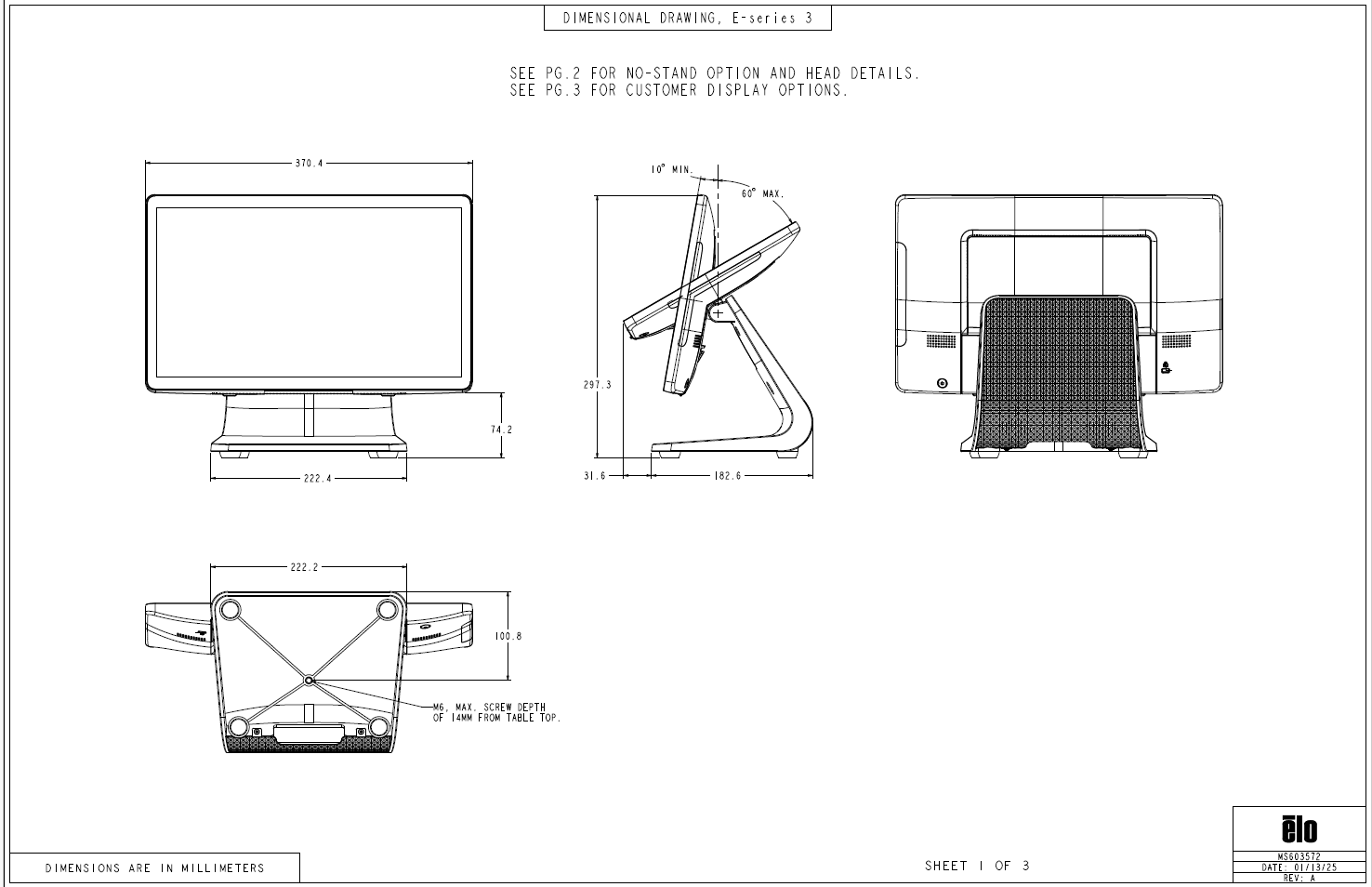

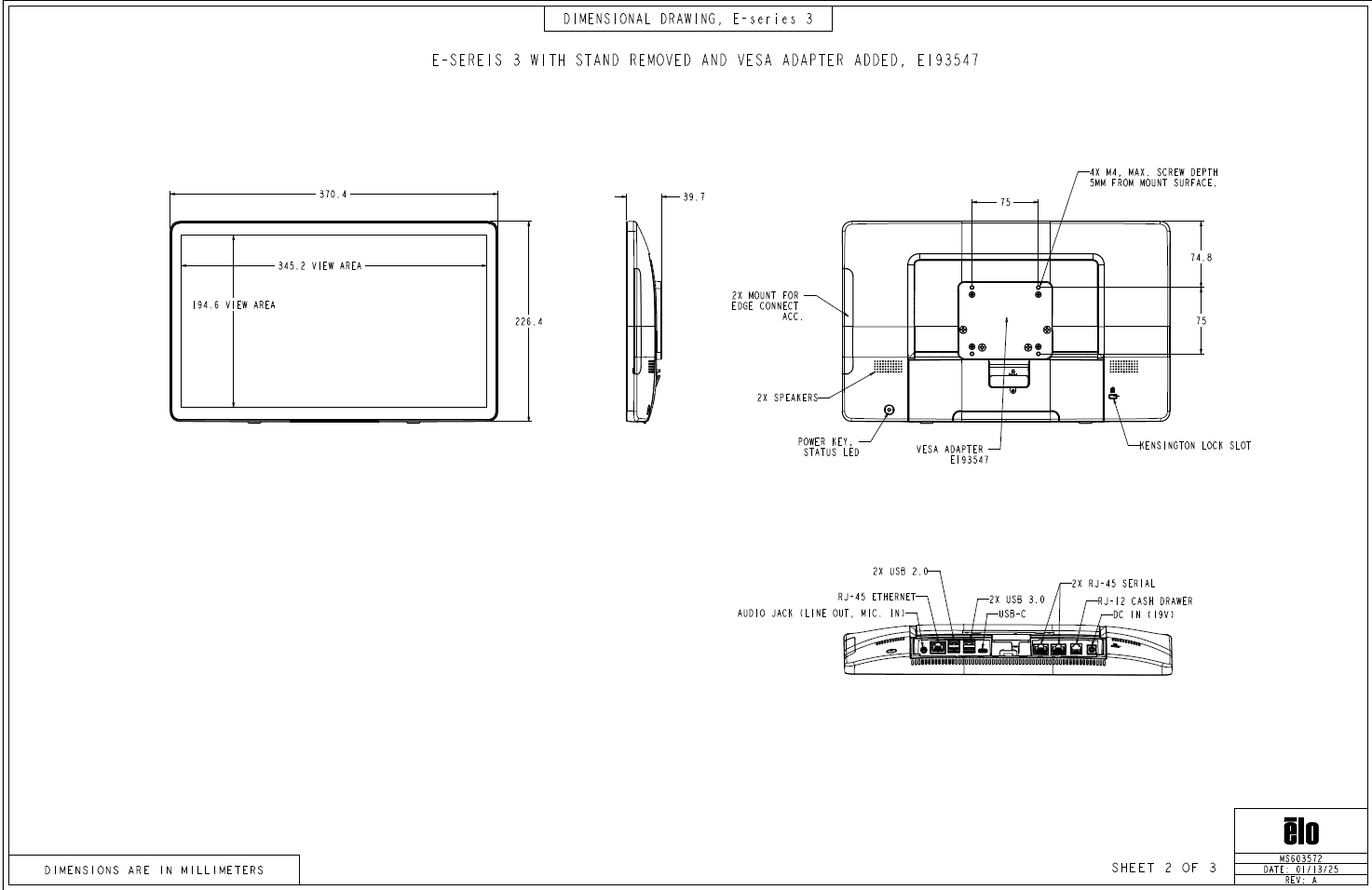

Dieser Artikel enthält die maßlichen Zeichnungen für die E-Serie 3 AIO

Anwendbare Teilenummern:

  • Kein OS, 8GB RAM, 128GB SSD, WiFi - E850098
  • Win 11, 8GB RAM, 128GB SSD, WiFi - E849902
  • Kein OS, 8GB RAM, 128GB SSD - E850312
  • Win 11, 8GB RAM, 128GB SSD - E849711
  • Kein OS, 16GB RAM, 256GB SSD, WiFi - E153661
  • Win 11, 16GB RAM, 256GB SSD, WiFi - E153259

Obige Zeichnung herunterladen
