Wo finde ich Dimensionale Zeichnungen für das E143088 Wandmontage-Kit?

Dieser Artikel enthält die Maßzeichnungen für das E143088 Wandmontageset

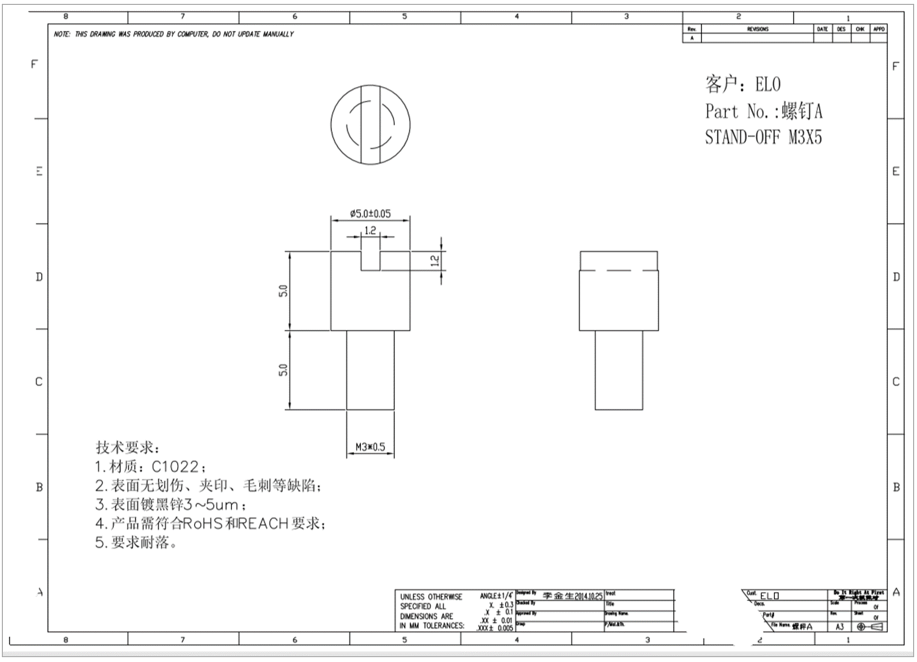

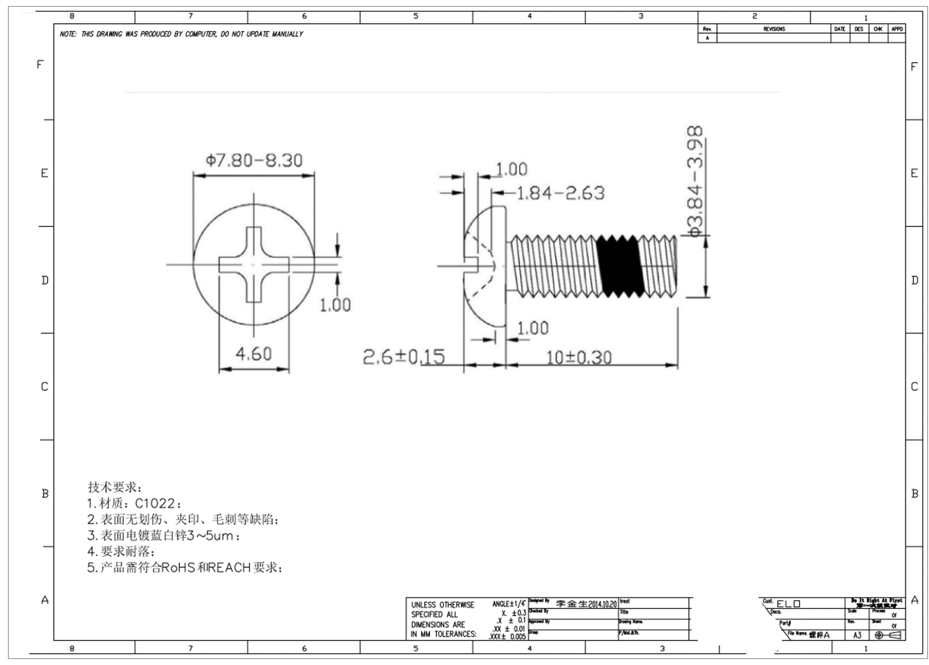

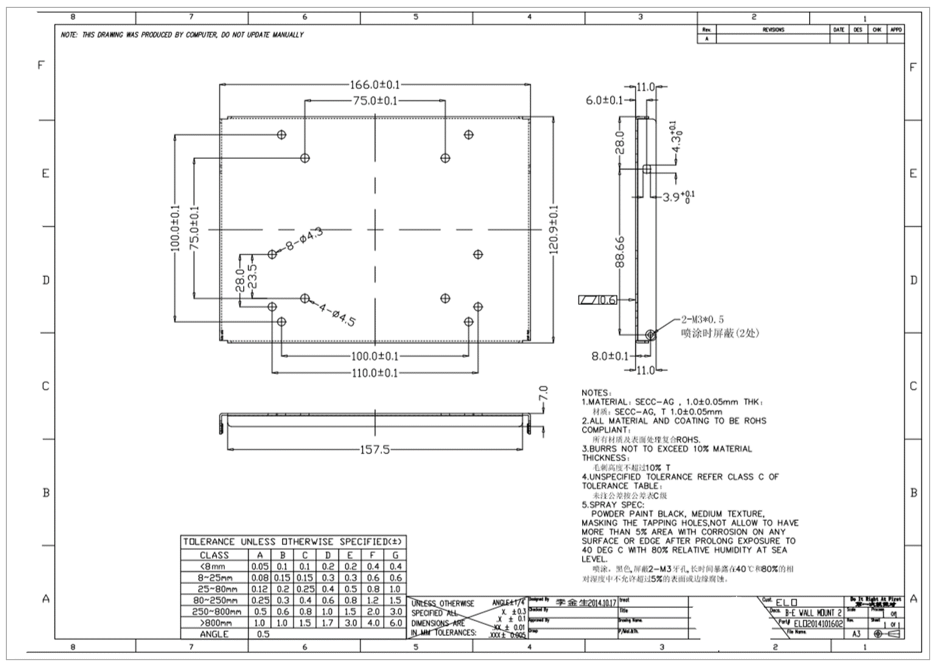

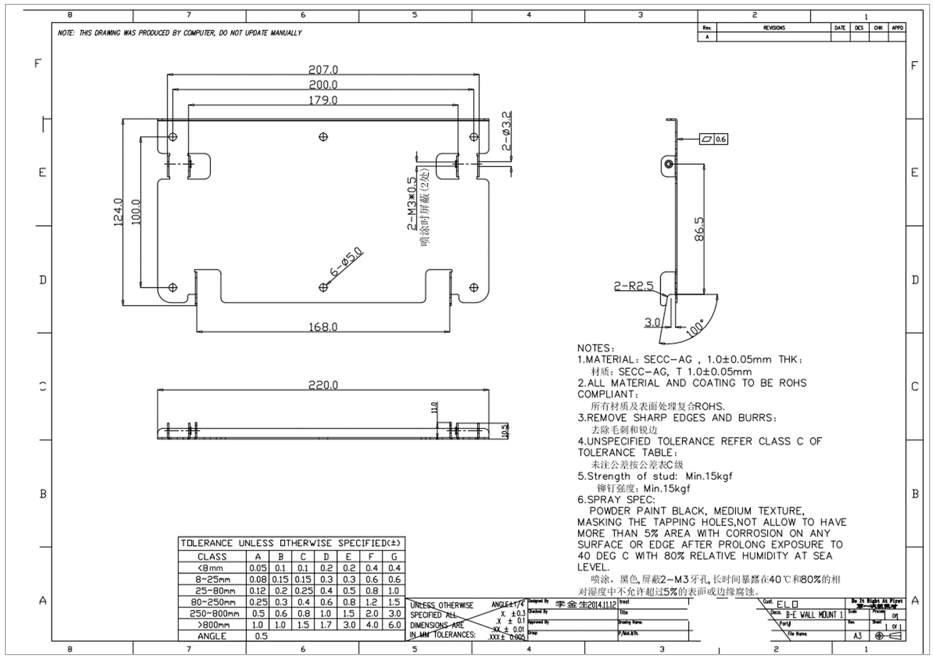

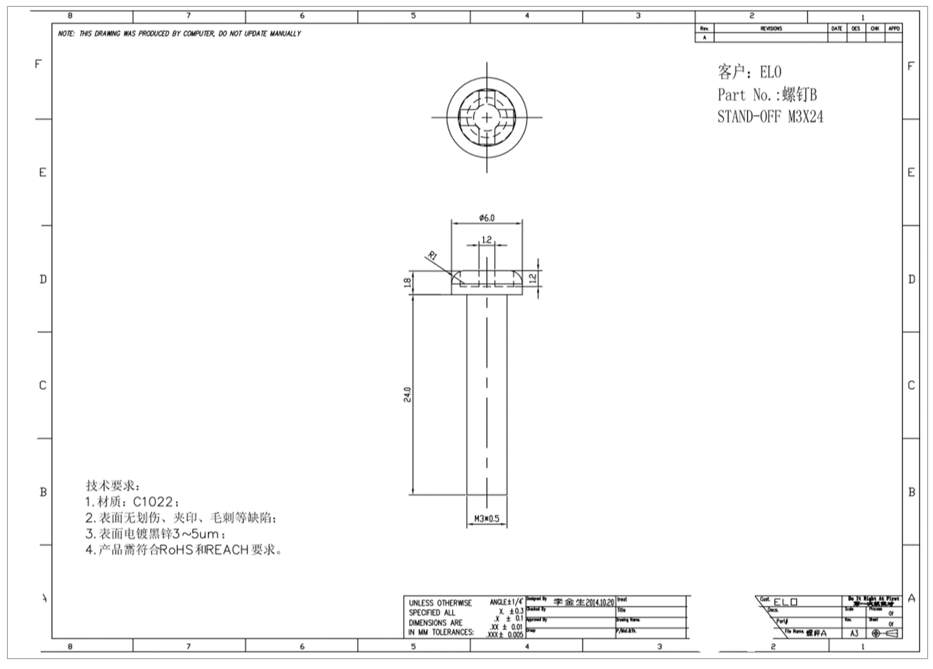

Unten finden Sie die Maßzeichnungen des E143088 Wandmontagesets für E-I-X-Serie Intel-Windows basierte All-in-One-Touch-Computer.




Downloaden Sie das .pdf-Paket der obigen Zeichnungen hier .



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
