This article provides the specifications for the legacy P/N: 055165-000, 2210 AccuTouch Serial Controller

See information below for specification on the legacy 2210 touch controller.

Part Number 055165-000


The 2210 serial controller uses the popular EIA RS-232C serial interface for connection to a wide range of host computers. Hardware and software handshaking are supported along with packet checksums for reliable communication. The 2210 board is typically mounted inside the display enclosure. Power is sourced inside the display.

Specifications for 2210 Serial Controller
• RS-232 bidirectional communication
• Baud rates to 19,200 baud
• Multiple output formats: Binary or ASCII
• E261-280, E271-140, E281A-4002 compatibility modes
• Optional software/hardware handshaking: XON/XOFF, DSR/DTR, RTS/CTS
• Response time: 21 ms at 9600 baud, 7 ms at 19,200 baud
• Power requirements: 5 Vdc (± 10%):

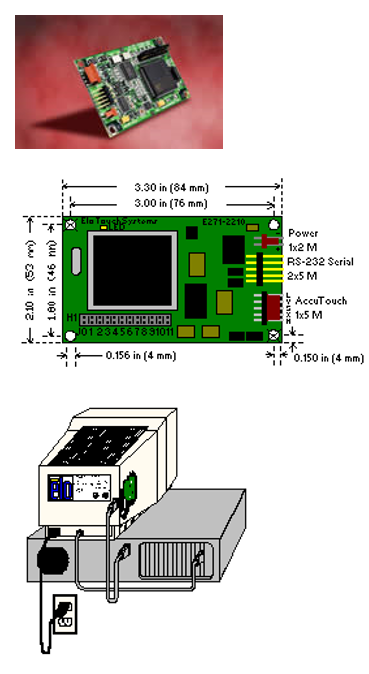

• Outside dimensions: 3.30 in x 2.10 in (84 mm x 53 mm), maximum height 0.55 in (14 mm)
• Mounting hole located 0.150 (3.81 mm) horizontally and vertically inside each corner
• MTBF greater than 107,000 hours (MTBF calculations per MIL-HDBK-217E, Notice 1 Update)
• Operating temperature: 0°C to 70°C
• Storage temperature: -25°C to 85°C
• Humidity: 95% RH, noncondensing
• No CFCs used in manufacture

Agency Approvals
• Elo controllers are "CNR/USR" UL Recognized Components for USA and Canada, Category NWGQ2, Information Technology Equipment Including Business Equipment.
• Elo controllers are TUV Bauart certified as components.
• Elo controllers have been tested for compliance with FCC Part 15 Class B limits.
• Depending on the application, it may be necessary to pay special attention to system grounding and shielding, and it may be necessary to apply ferrite suppressor beads.

Options
• Internal mounting kit for serial controller (Part Number 734849-000)
