This article provides the IntelliTouch 2701 Series Controller (single touch) Specifications

See below for IntelliTouch 2701 Series Controller (single-touch) Specifications.



Overview
The Elo Touch Solutions IntelliTouch controllers are designed to work specifically with IntelliTouch SAW touchscreens. Building technology with coordinating components enables a much smoother design and user experience.



Works two ways

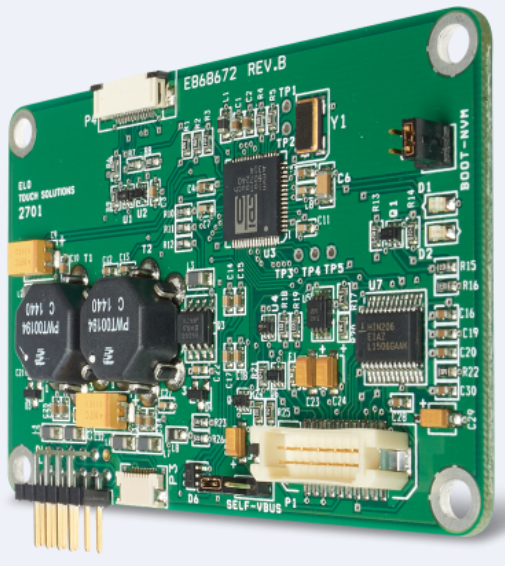

The 2701 series controller is a single touch unit that works through serial interface or via USB. It is a full-speed, self-powered, USB device. By default, the controller communicates over a RS-232 serial link. If, however, a USB cable is connected, the controller switches to an exclusively USB communicating mode.



Fully Optimized
Elo’s IntelliTouch controllers are designed and manufactured to work specifically with IntelliTouch SAW touchscreens for optimal performance. The controller maintains a no-touch reference signal. This reference signal is continuously updated to adapt to electronic drift and effects of contamination such as dirt and scratches. The live signal is compared to the reference signal to detect touches.

Specifications

·        Part Number(s)

o   D68054-000

·        Technology

o   SAW (IntelliTouch® Surface Acoustic Wave)

·        Number of Touches

o   Single Touch

·        Input Methods

o   Finger
Gloved hand
Passive stylus

·        Dimensions

o   83.8mm x 45.7mm x 8.1mm

·        Surface Treatment

o   Clear

·        Resolution

o   4096 x 4096

·        Touch Activation Force

o   2 to 3 ounces (55 to 85 grams) typical

·        Input Voltage

o   +5 VDC, nominal (+4.75 to +5.25 VDC)

·        Report Rate

o   90pps

·        Baud Rate

o   for RS232 Interface: 9600 (default) and 19200

·        Current - Operating Mode

o   75mA, maximum at +5 VDC. Typical power dissipation is 300mW at 5V.

·        Operating Temperature

o   0°C to 60°C

·        Storage Temperature

o   -25°C to 85°C

·        Humidity

o   10% to 90% RH (Non Condensing)

·        Controller Cables

o   Serial cable: P/N D16890-000
USB cable: P/N D38640-000
Dual serial/USB cable: P/N D40022-000
