What are the dimensions of the 2521 Controller Board?

This article lists the dimensional drawings for the 2521 Controller Board

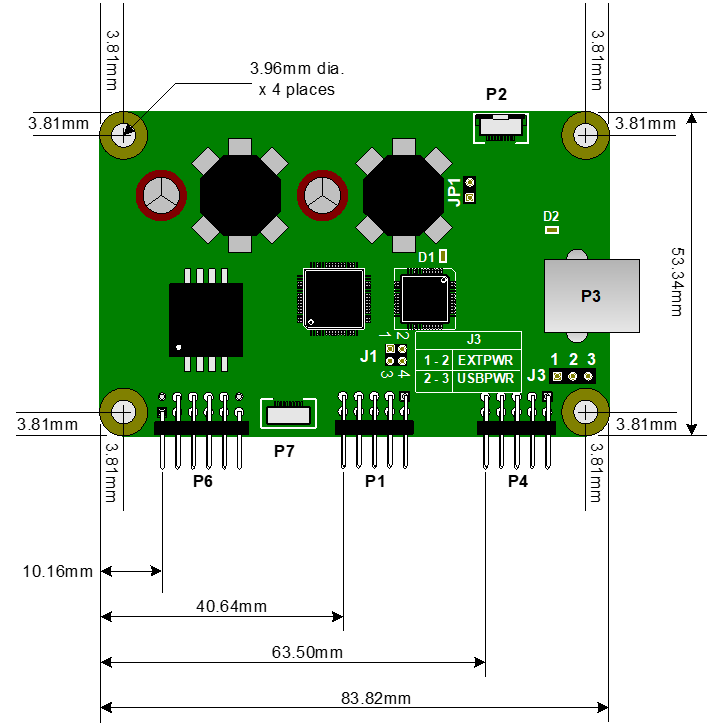

Y-Dimensions:


Z dimensions:

  • Max height above top of PCB: 9.5mm
  • Max height of component above bottom of PCB: 2.54mm
  • Max height of entire board: 13.8mm (13.1 typical)
See additional information and documentation for the 2521 controller board in this Knowledge Article .

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
