Where can I find IntelliTouch 2500S SmartSet Serial Controller Jumpers and Pinouts?

This article provides the IntelliTouch 2500S SmartSet Serial Controller Jumpers and Pinouts

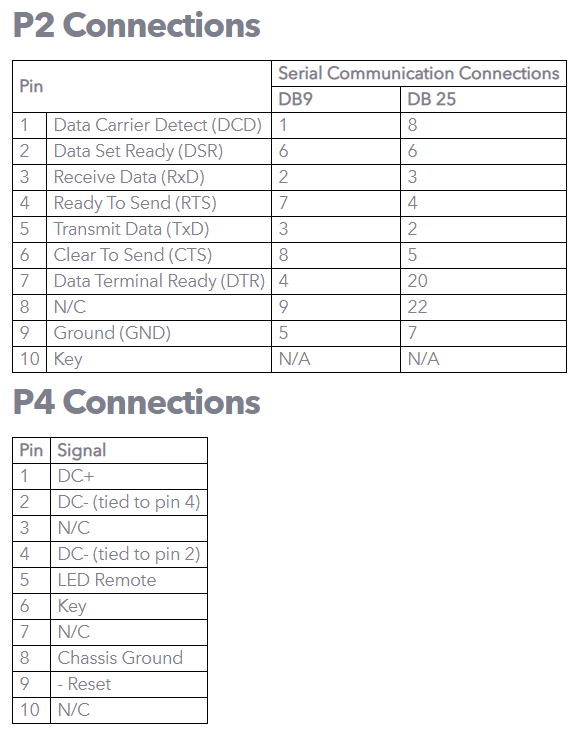

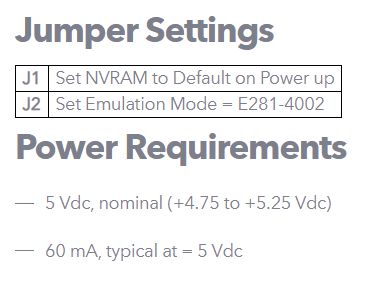

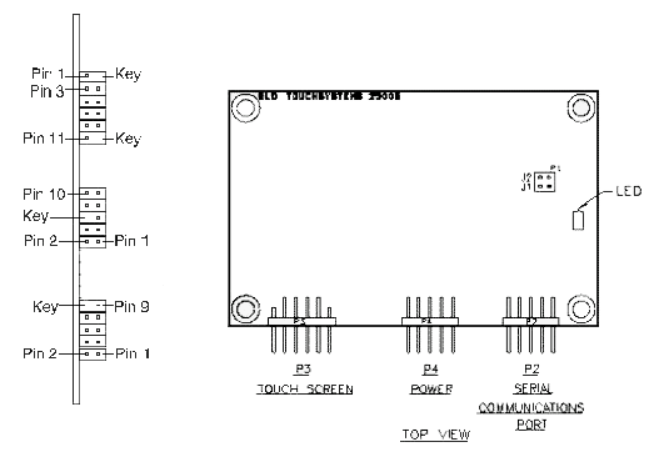

See below for IntelliTouch 2500S SmartSet Serial Controller Jumpers and Pinouts.








Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
