This article explains how to align Elo Touchmonitors using the command line with the Multi Touch Driver

Follow the below steps to align your Elo touchscreen using the command line with the Multi-Touch Driver:

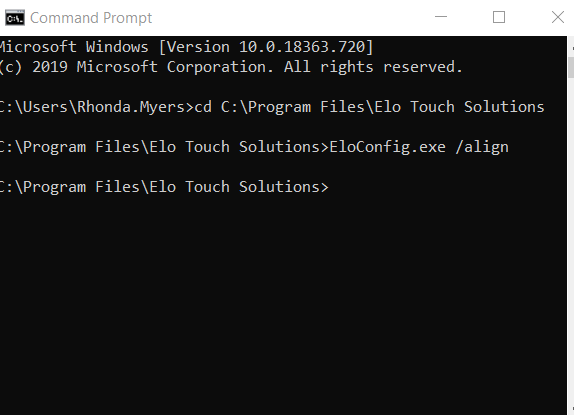

1. To align all touchmonitors connected using the Command Line Option:

• Open a command prompt.
• Change directory to: C:\Program Files\Elo Touch Solutions.
• Type: EloConfig.exe /align.

The alignment for all touchmonitors connected would be the same as starting the calibration session from EloConfig User Interface.

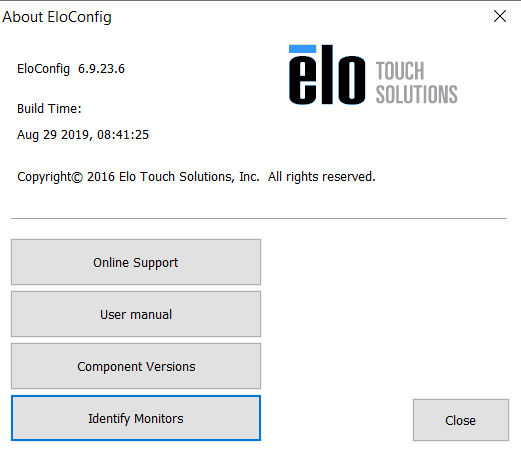

2. To align a specific monitor, determine the monitor number from the EloConfig User Interface About tab, Identify Monitors:

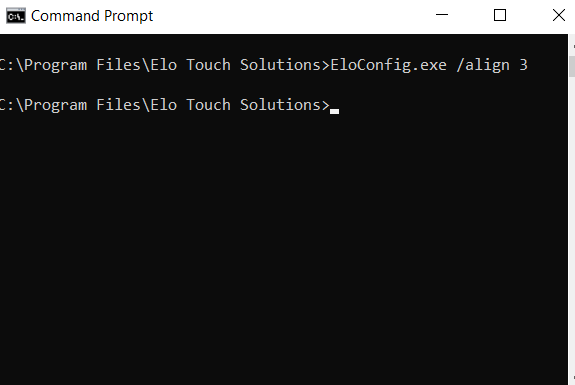

To align a specific monitor connected using the Command Line Option:

• Open a command prompt.
• Change directory to: C:\Program Files\Elo Touch Solutions
• Type: EloConfig.exe /align 3 (Monitor 3 Identified in Elo Config User Interface)

The alignment for that specific touchmonitor connected would be the same as starting the calibration session from EloConfig User Interface.
