This article provides information about Elo P/N: E413396, POE Adapter 4.0 Kit

Below is information for Elo P/N: E413396, POE Adapter 4.0 Kit

The PoE (Power Over Ethernet) module supports DC output with a range of 20V and Ethernet functionality. The power is 25.5W typical. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition to allowing data communication via terminals over standard cabling infrastructure.

Kit Contents

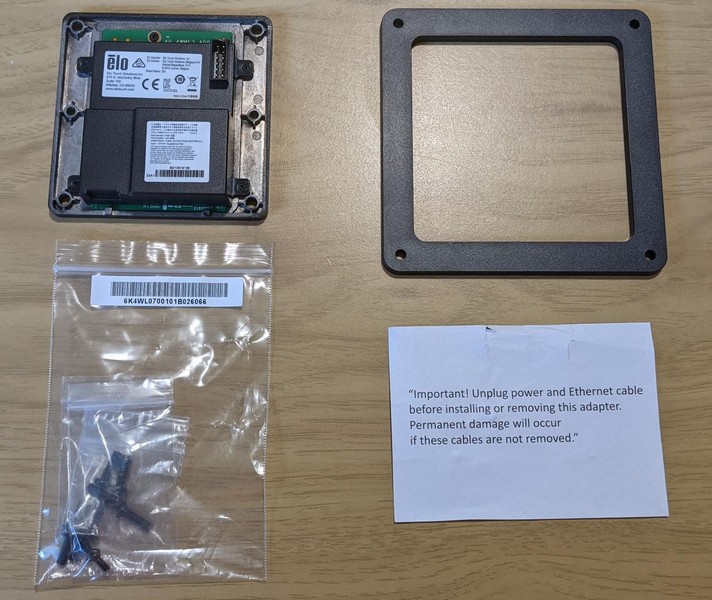

This kit includes all parts that are listed below:

1. 1x Quick Install Guide (E988344 QIG, i-series 4.0 POE)
2. 2x M3x8mm screws (flat head, in a ziplock bag, labeled)
3. 4x M4x12mm screws (flat head, in a ziplock bag, labeled)
4. 4x M4x12mm screws (pan head, in a ziplock bag, labeled)
5. 1x POE Spacer
6. Hot plug warning label “Important! Unplug power and Ethernet cable before installing or removing this adapter. Permanent damage will occur if these cables are not removed.”

Specifications

• Standards
  • IEEE802.3, 10BASE T/1000BASE-T IEEE802.3u,100BASE-TX
  • IEEE802.3at, Power over Ethernet
  • Transmission Media,
  • RJ-45 (10/100BASE-T): Cat.3, 4, 5 UTP/STP RJ-45 (1000BASE-T): Cat.5, 5e, 6,7 UTP/STP
• Efficiency
  • Isolated power supply efficiency 85%
• Temperature
  • Operating Temperature (Independent of altitude): 0°C to 40°C
  • Non-Operating Temperature (Independent of altitude): -20°C to 70°C
  • Protection +/-15KV of Ethernet isolation for ESD/Surge protection OTP, SCP, OCP protection Isolation, 1500Vrms

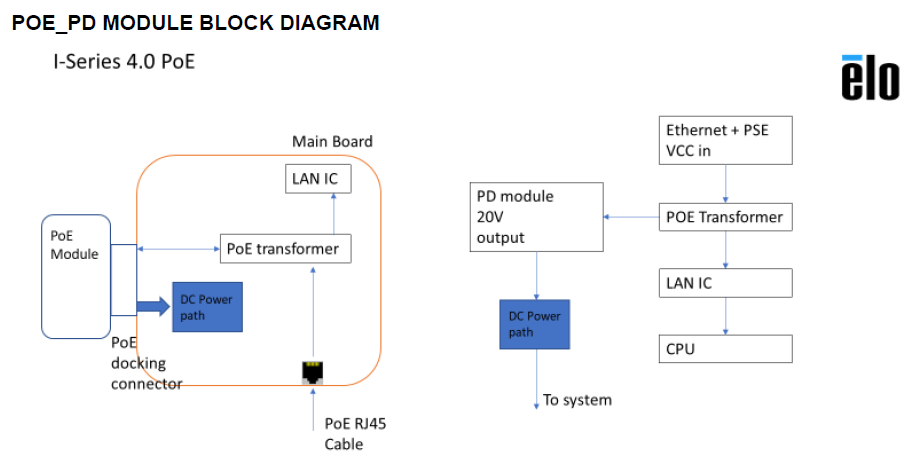

PoE Block Diagram

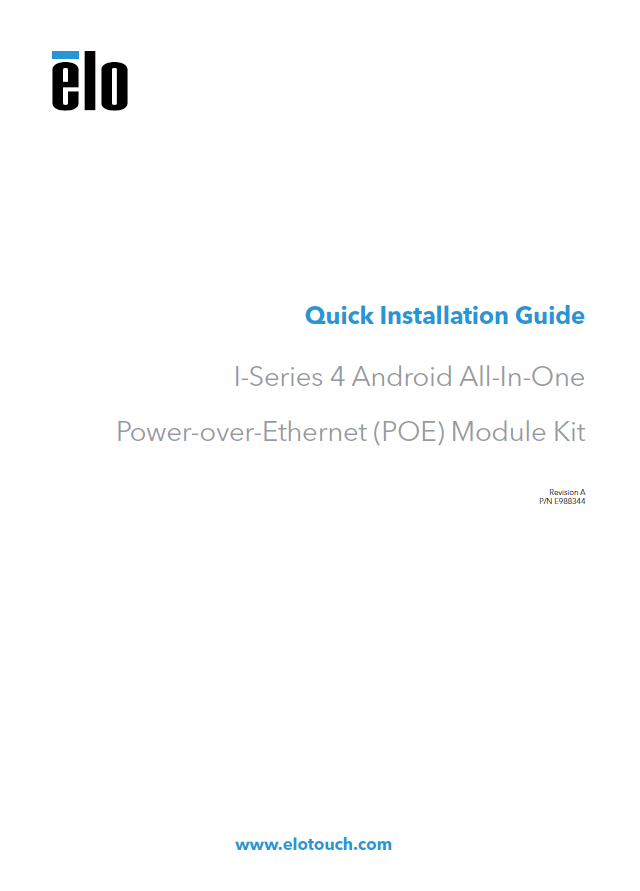

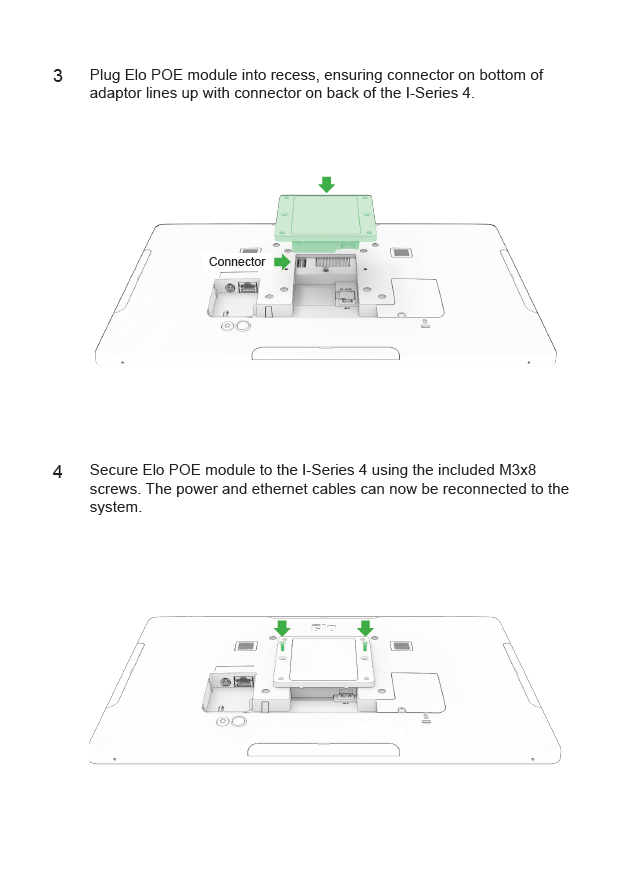

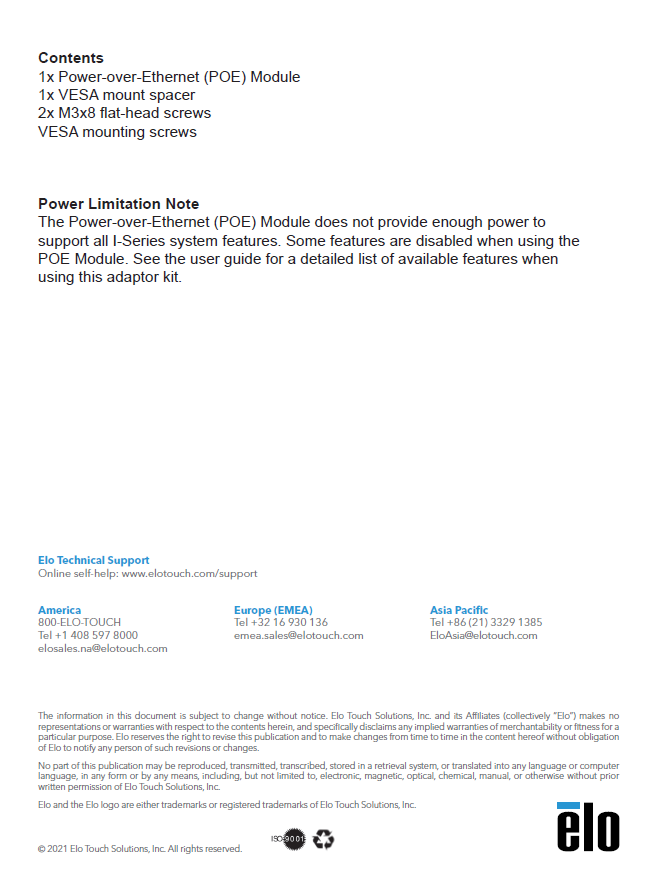

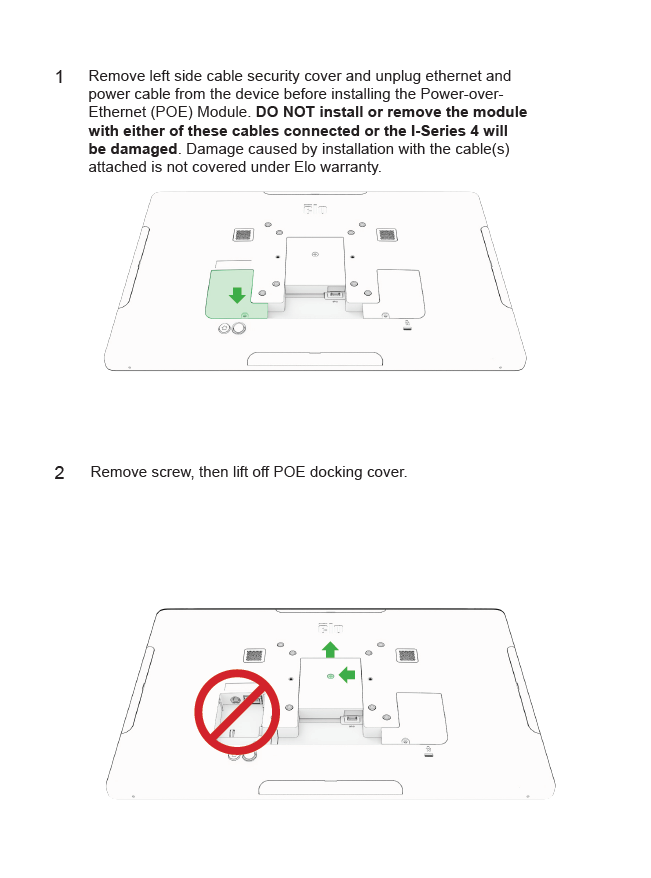

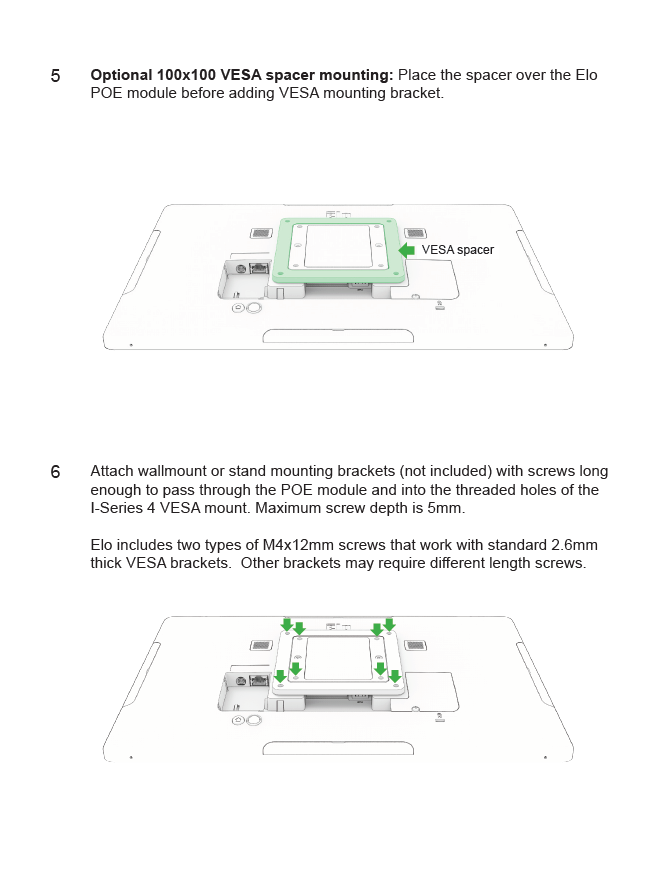

Quick Install Guide

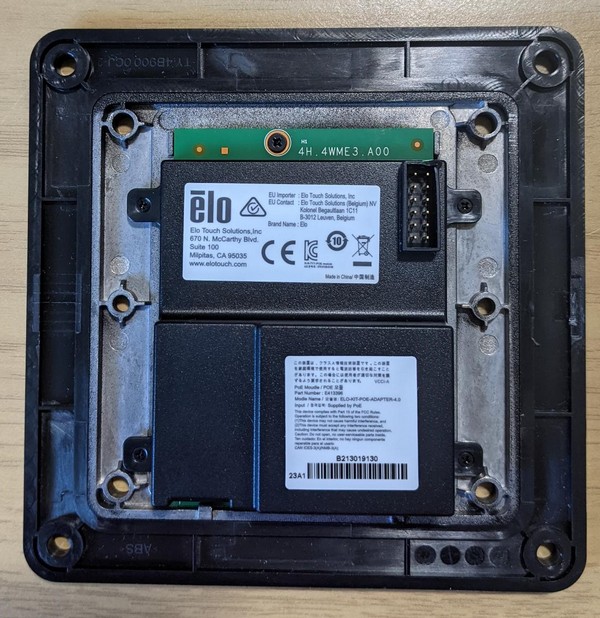

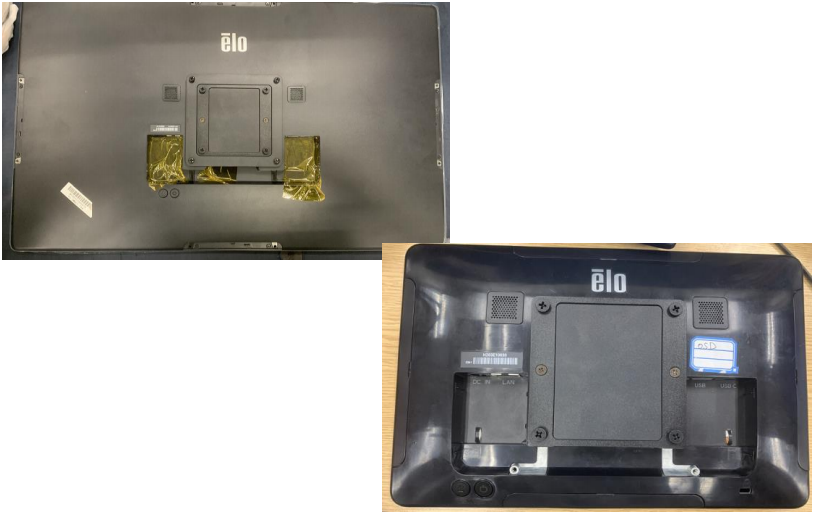

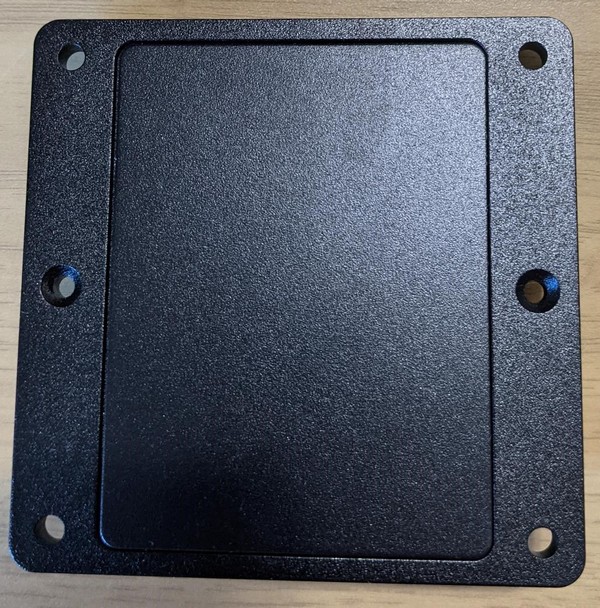

Photos
