This article provides more information about Elo P/N: E710549, VGA-DB15 to Micro Cable Kit

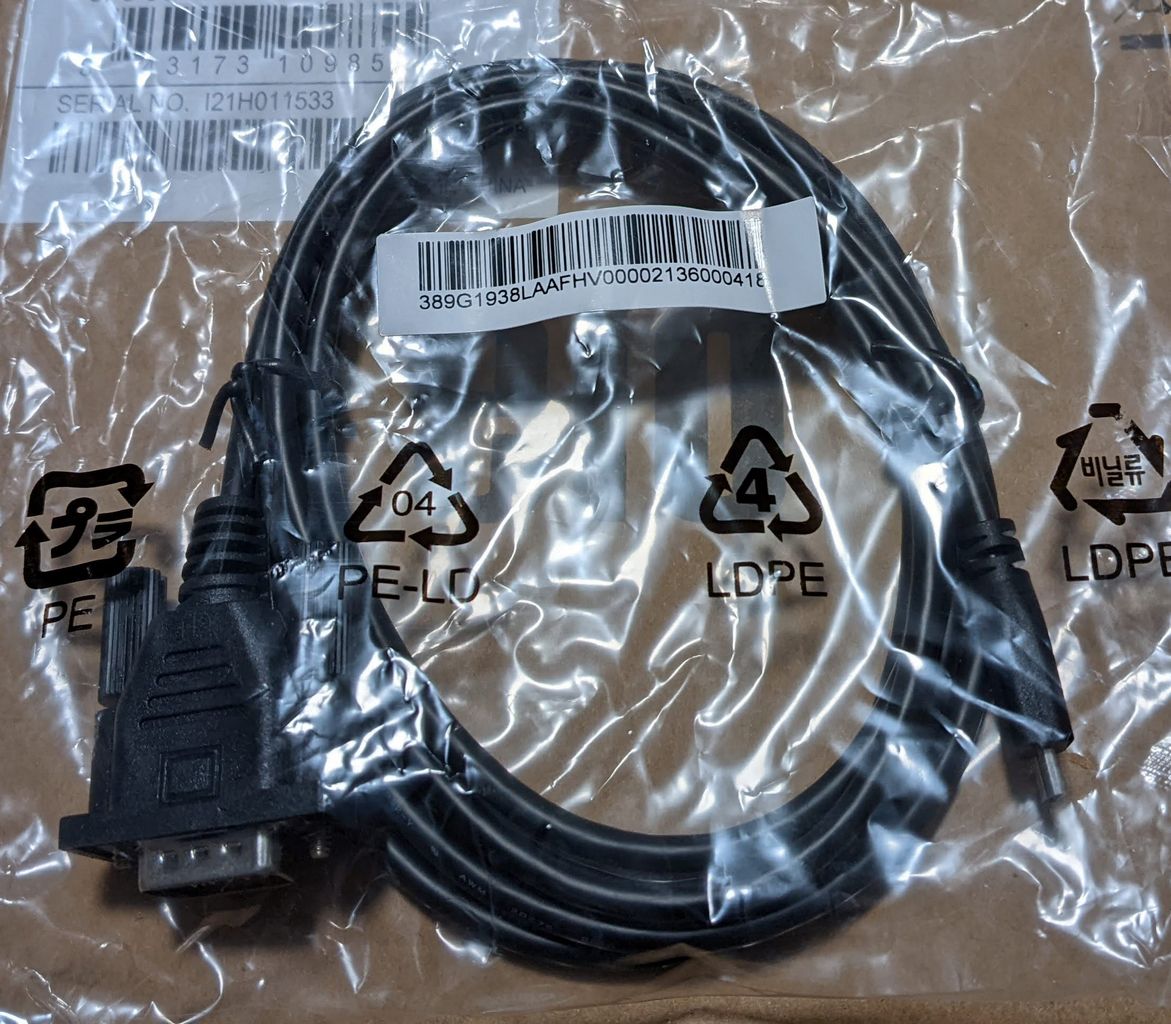

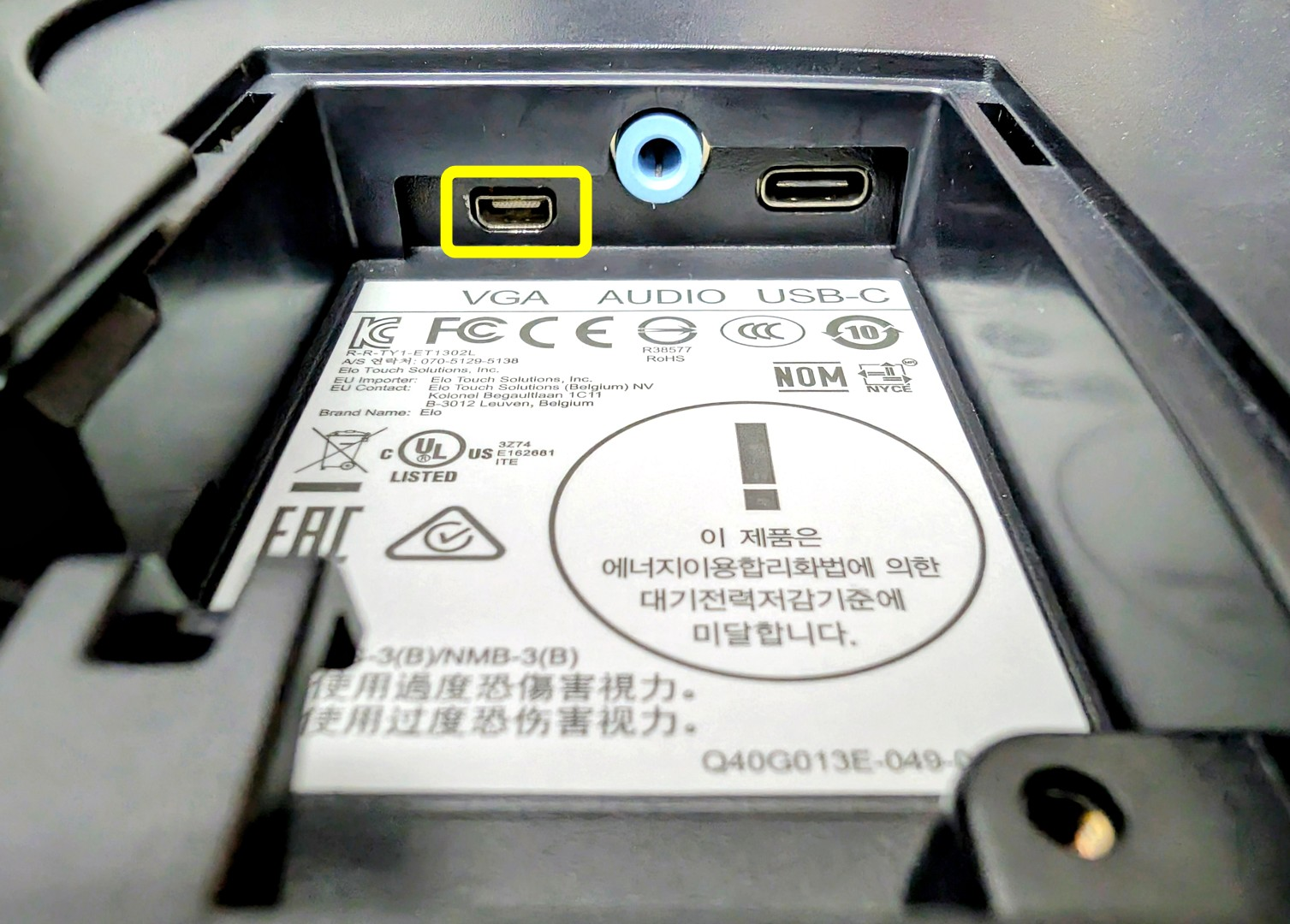

Elo P/N: E710549, VGA-DB15 to Micro Cable Kit is intended to be used on Elo 1002L, 1302L, and 1502L monitors which are equipped with Micro-HDMI form factor VGA inputs. This cable is for connecting a computer which has a standard 15-pin VGA output to an Elo monitor equipped with a Micro-HDMI form factor with VGA input.

This cable is proprietary to Elo Touch Solutions and manufactured only for our monitors equipped with the special micro-HDMI form factor VGA input. There are no 3rd party substitutes available. The cable passes an analog signal through only, it does not pass through any HDMI signals. You cannot connect a standard micro-HDMI cable with HDMI signals into the VGA port on the Elo monitor, as it will not function. You cannot use a simple HDMI to VGA converter, as these are designed to pass an HDMI source signal to an analog VGA input. Those types of adapters are not backwards compatible.

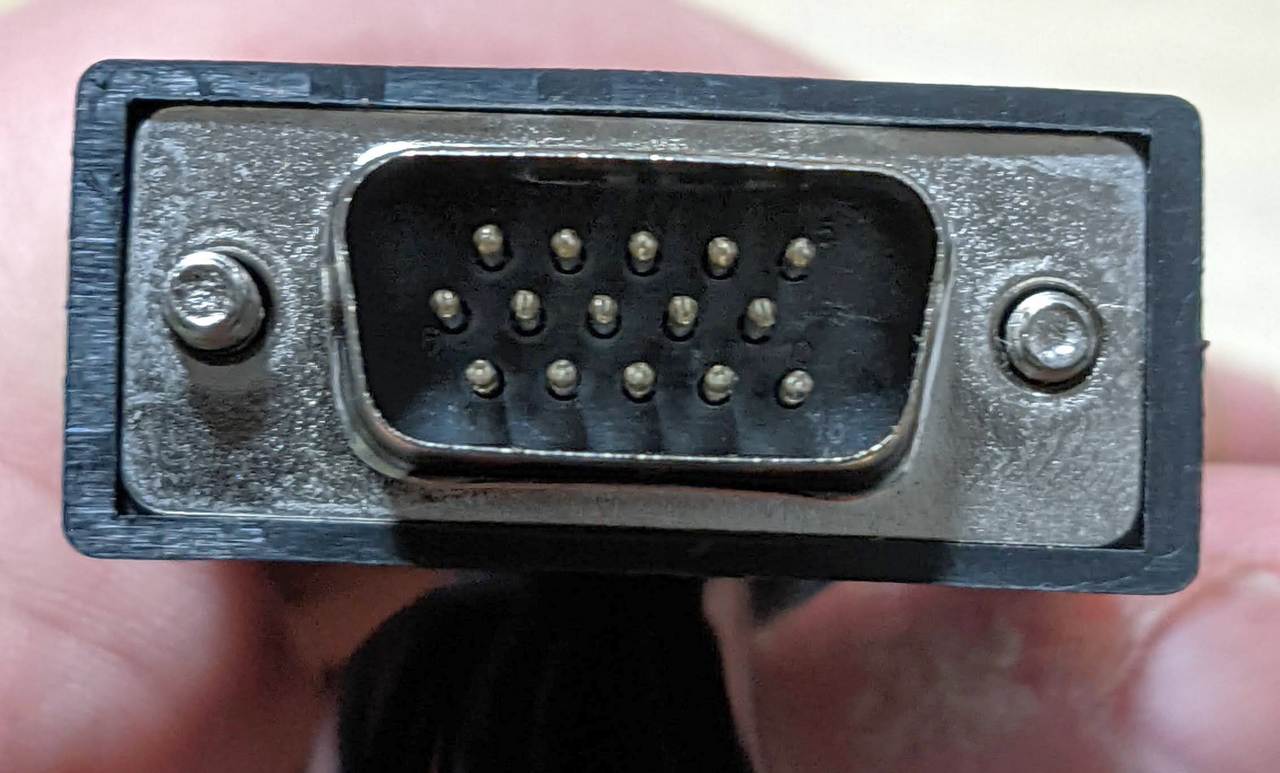

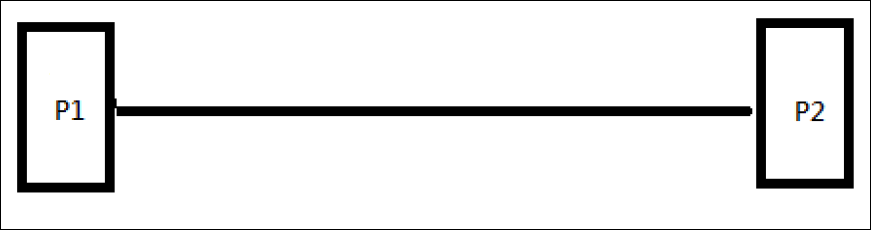

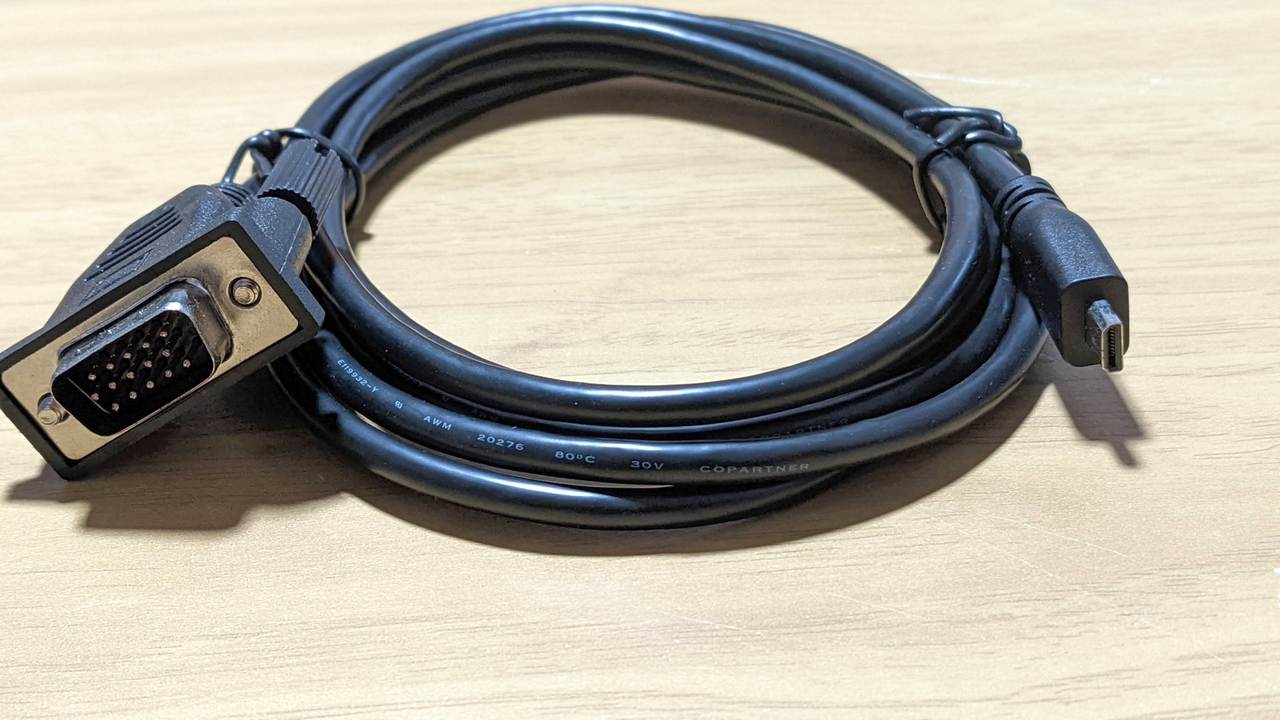

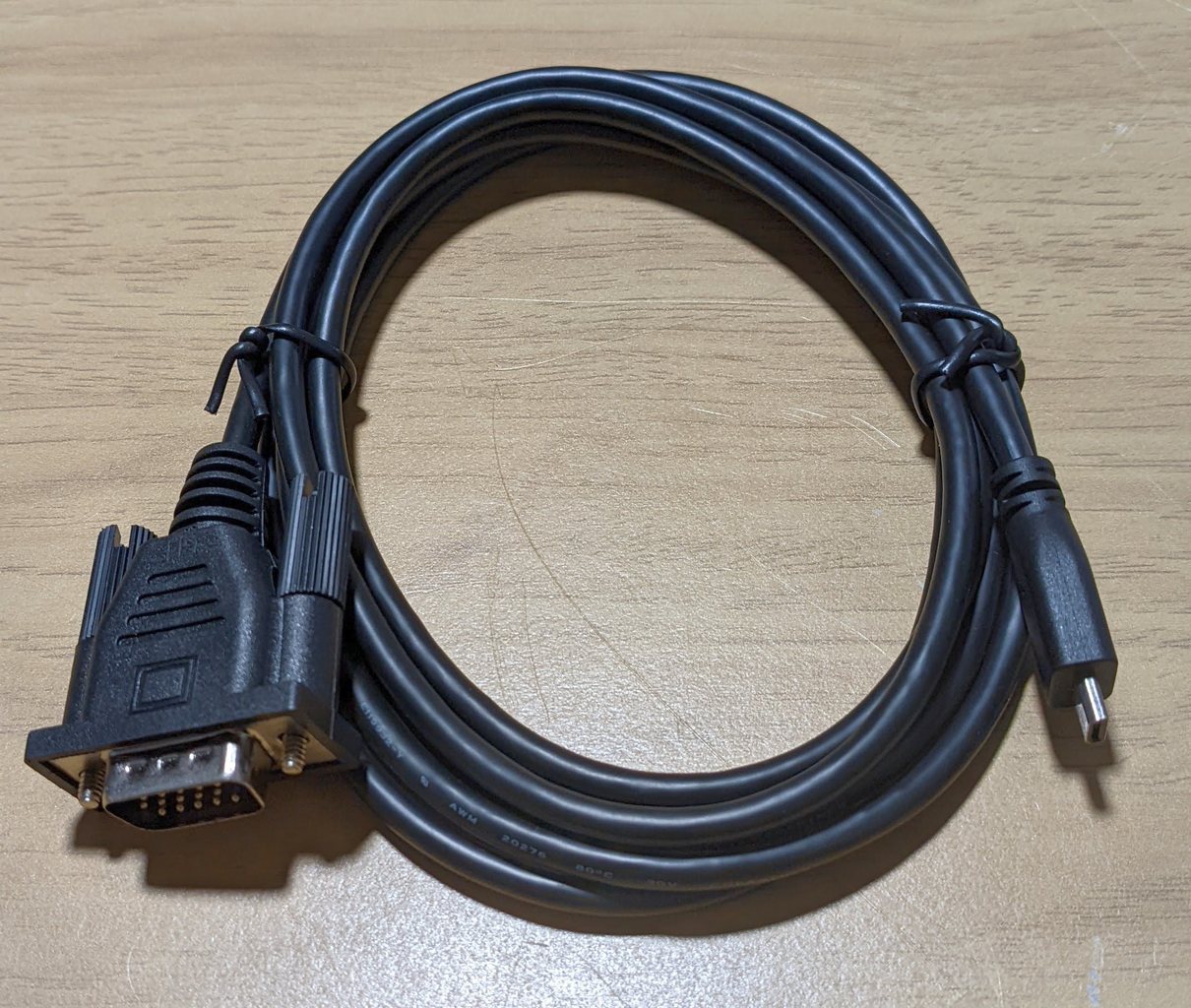

The Standard VGA to Micro-HDMI cable shall include one type of plug on the cable. One (P1) sides shall be a standard VGA male plug, another (P2) side shall be Micro-HDMI. The cable must be 1.8 m long, black





• Standard VGA male connector wiring diagram shall be as follows:

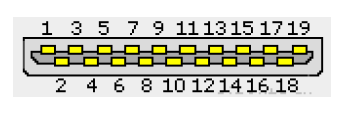

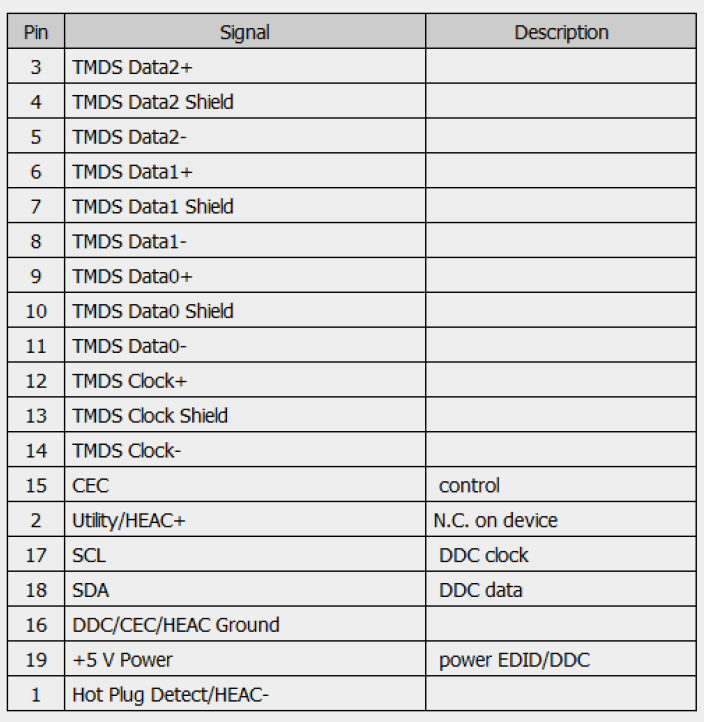

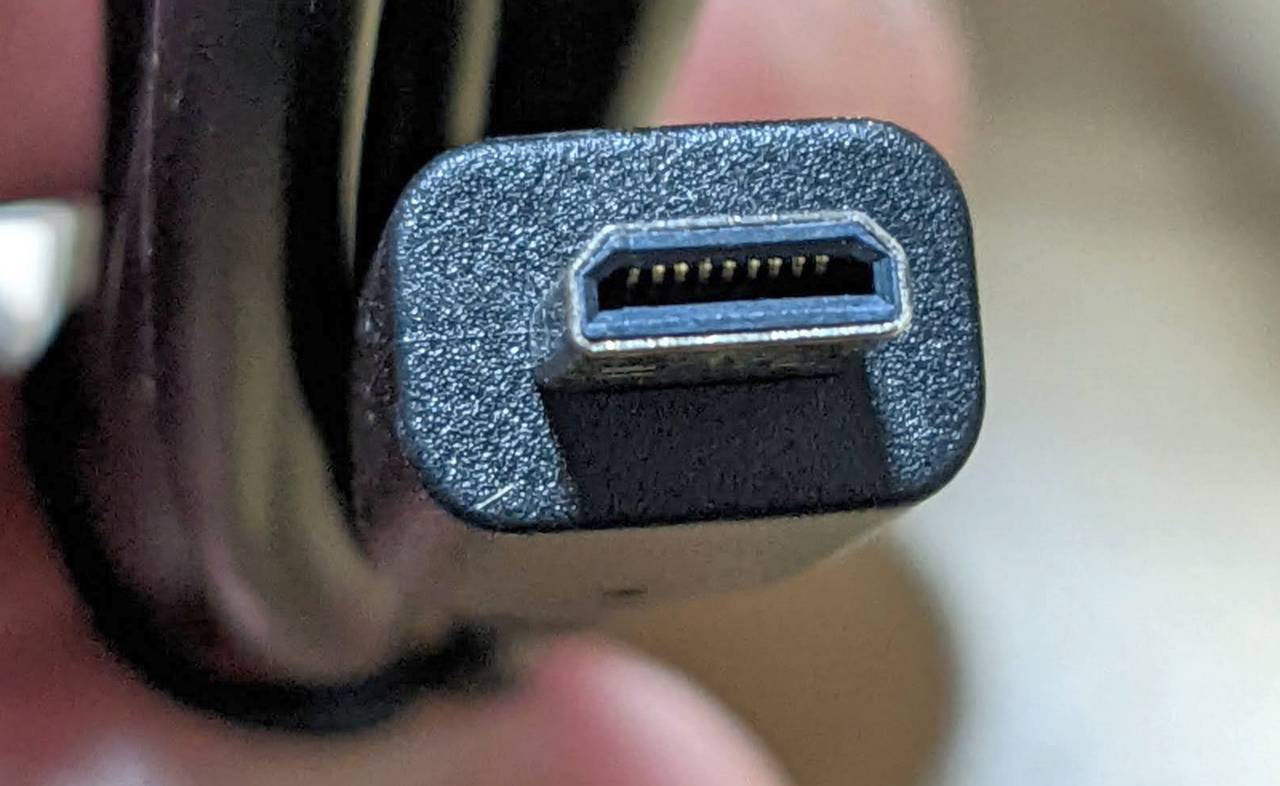

• Standard Micro-HDMI wiring diagram shall be as follows:
