Micro-HDMI Form Factor Port on Elo 1002L, 1302L, and 1502L Monitors

A common question is: “Can I use a Micro-HDMI to VGA cable for video on the Elo 1002L, 1302L, and 1502L?”

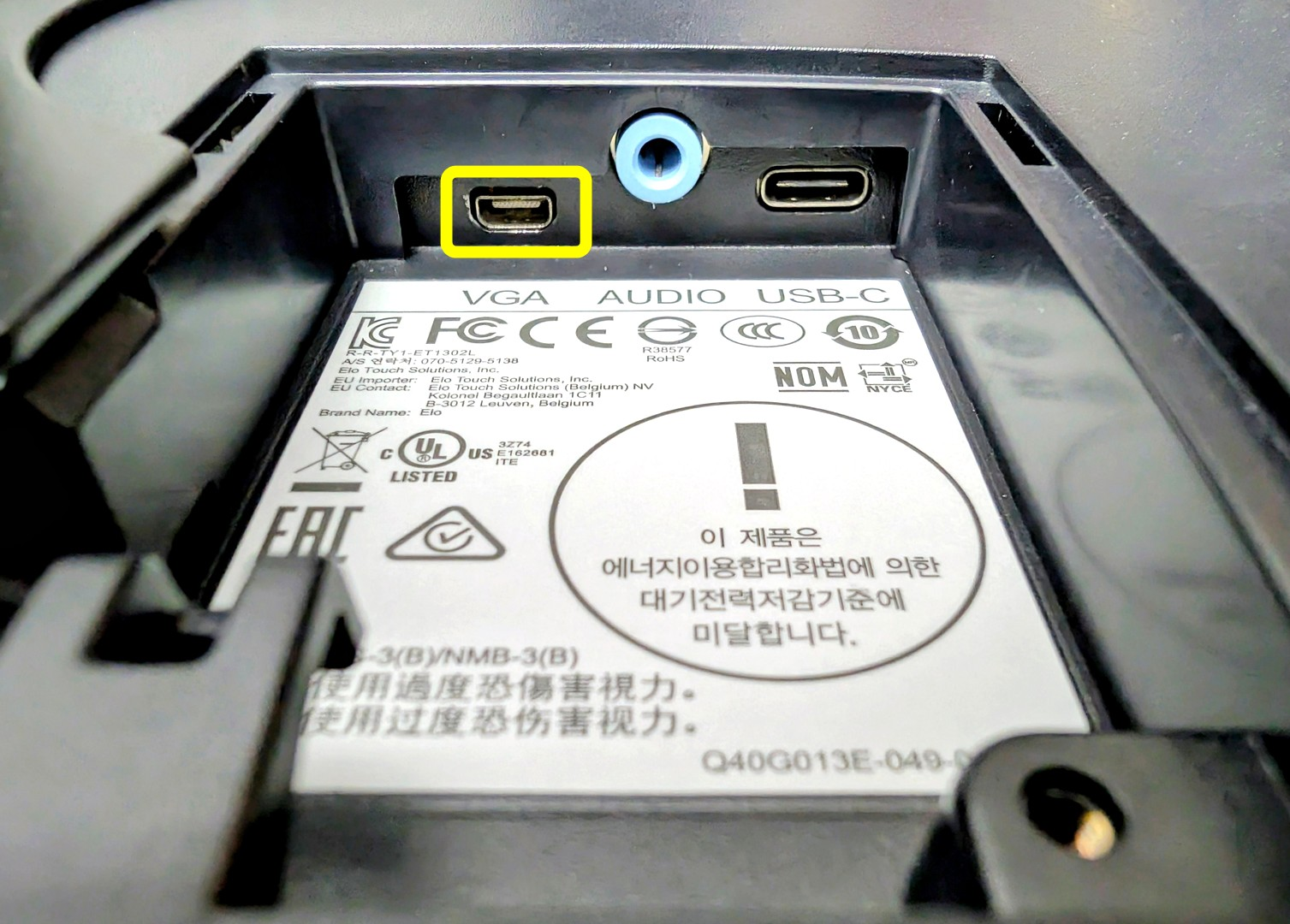

The answer is no. The Micro-HDMI form factor port on these monitors is not a true HDMI interface. It is a VGA-only port that uses a Micro-HDMI style connector. There are no HDMI signal lines present on this port.

This connector type is proprietary to Elo Touch Solutions and is not supported by standard third-party Micro-HDMI cables or adapters. Video connectivity requires the Elo-provided VGA cable kit: P/N E710549.

For full details, refer to the following knowledge base article:
Where can I find more information about E710549, VGA-DB15 to Micro Cable Kit?
