This article describes how to enter the Factory OSD Menu on an Elo ET1509L Touchmonitor

1. Connect video source to monitor and connect AC power cord.

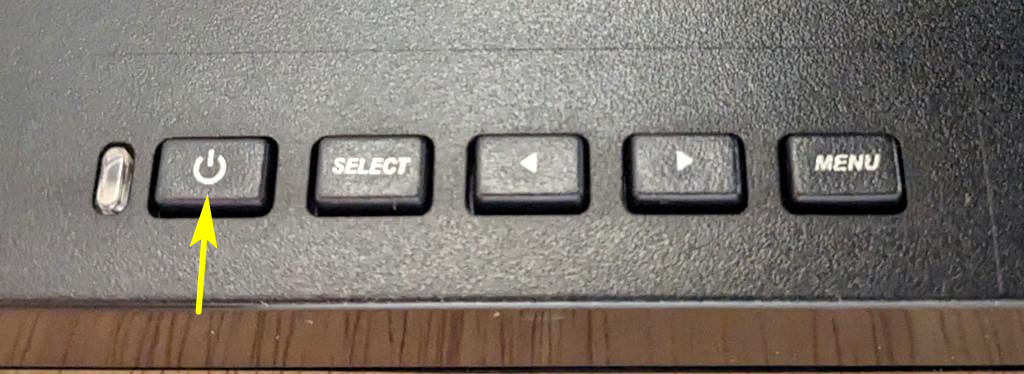

2. Turn off DC power by pressing the Power button on the OSD keys on back of monitor.

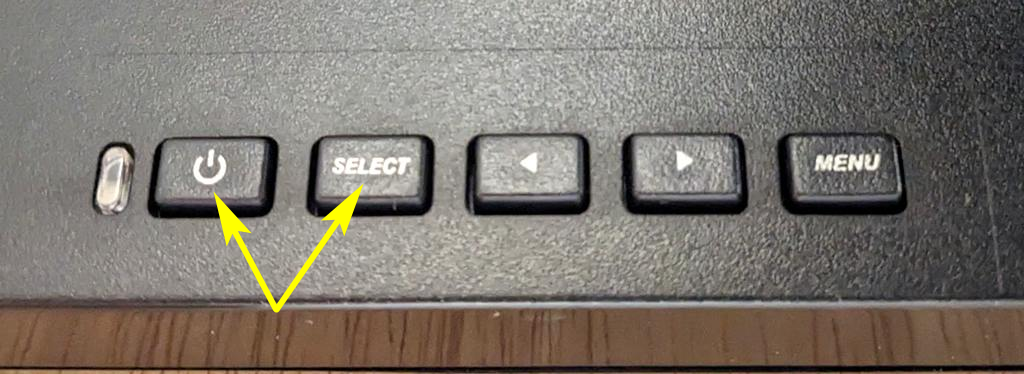

3. Press and hold the Select and Power buttons in at the same time.

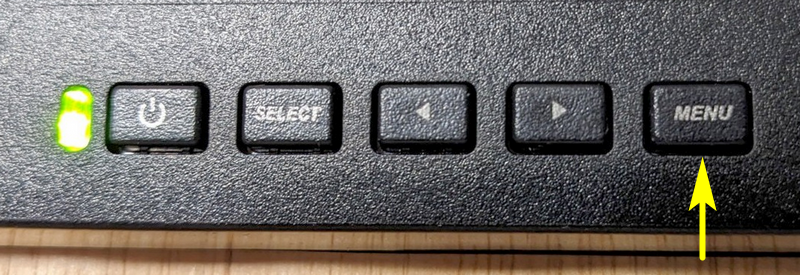

4. When video appears on the screen, release all buttons, then press the Menu button.

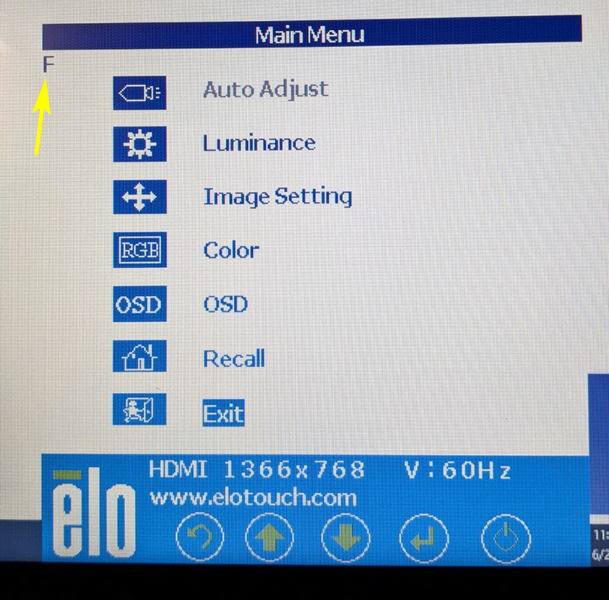

5. Use the Left/Right arrow keys to navigate to the "F" in the upper left corner of the Main Menu, then press the Select button to enter the Factory OSD Menu.

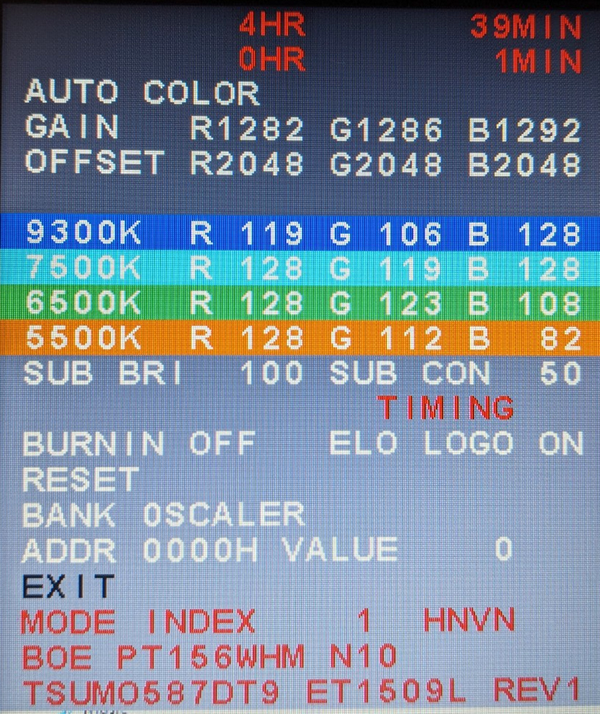

6. You are now in the Elo Factory OSE Menu. Use the Left/Right arrow buttons on back of monitor to navigate the menu. Use the Select button to make a selection. Select the Exit option in the menu to exit the menu, or turn monitor power off and back on.
