This article describes portrait mounting orientation on the Elo 1509L Desktop Touch Monitor.

While portrait orientation is not officially supported when using the original stand included with the 1509L, it is physically possible with the following limitations:

• Limited tilt range: The monitor does not offer the same tilt adjustment in portrait mode as it does in landscape.

• Desk contact: When fully upright, the bottom edge of the monitor will rest directly on the desktop surface.

• Restricted cable access: The cable cover becomes difficult to access in this orientation.

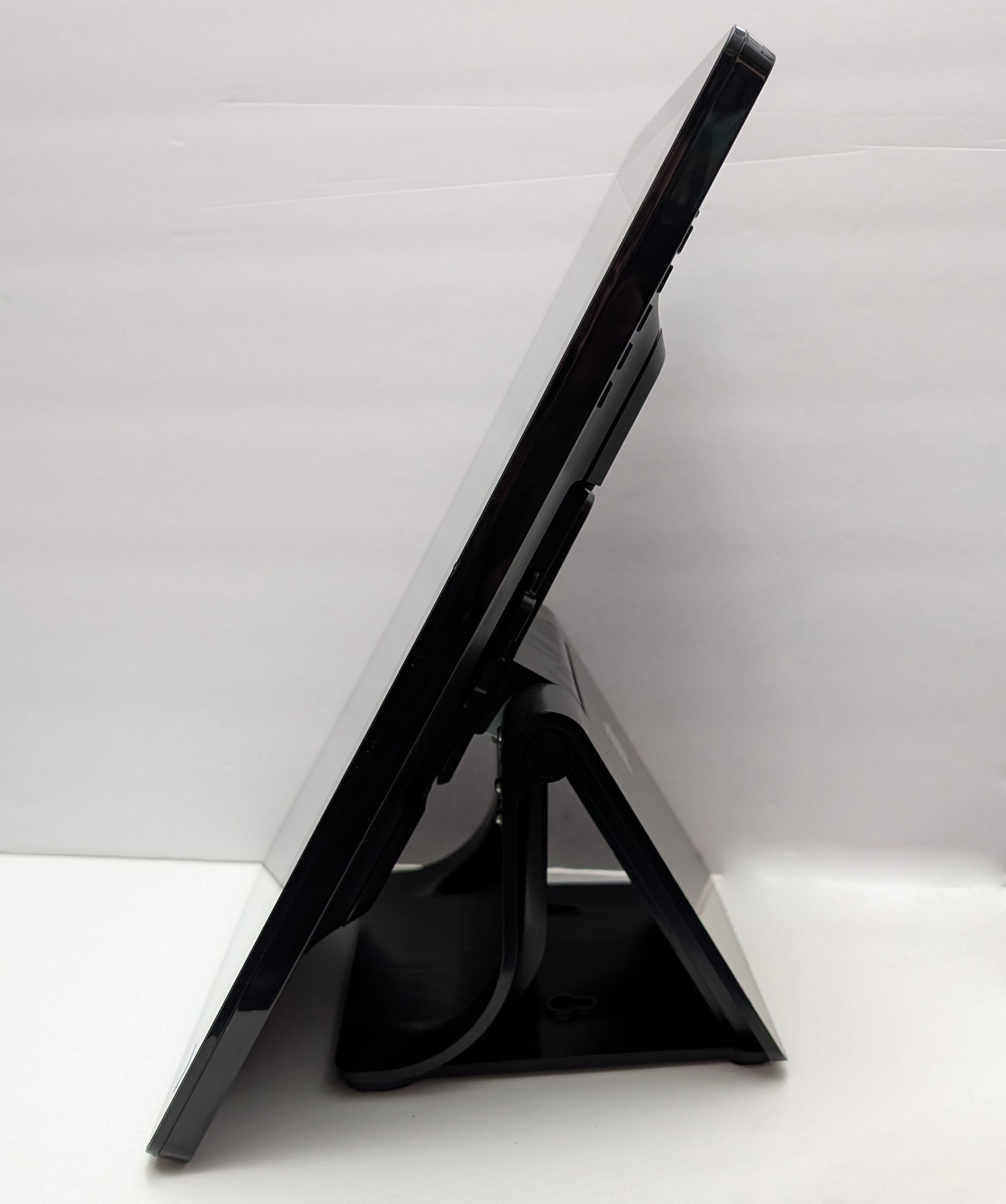

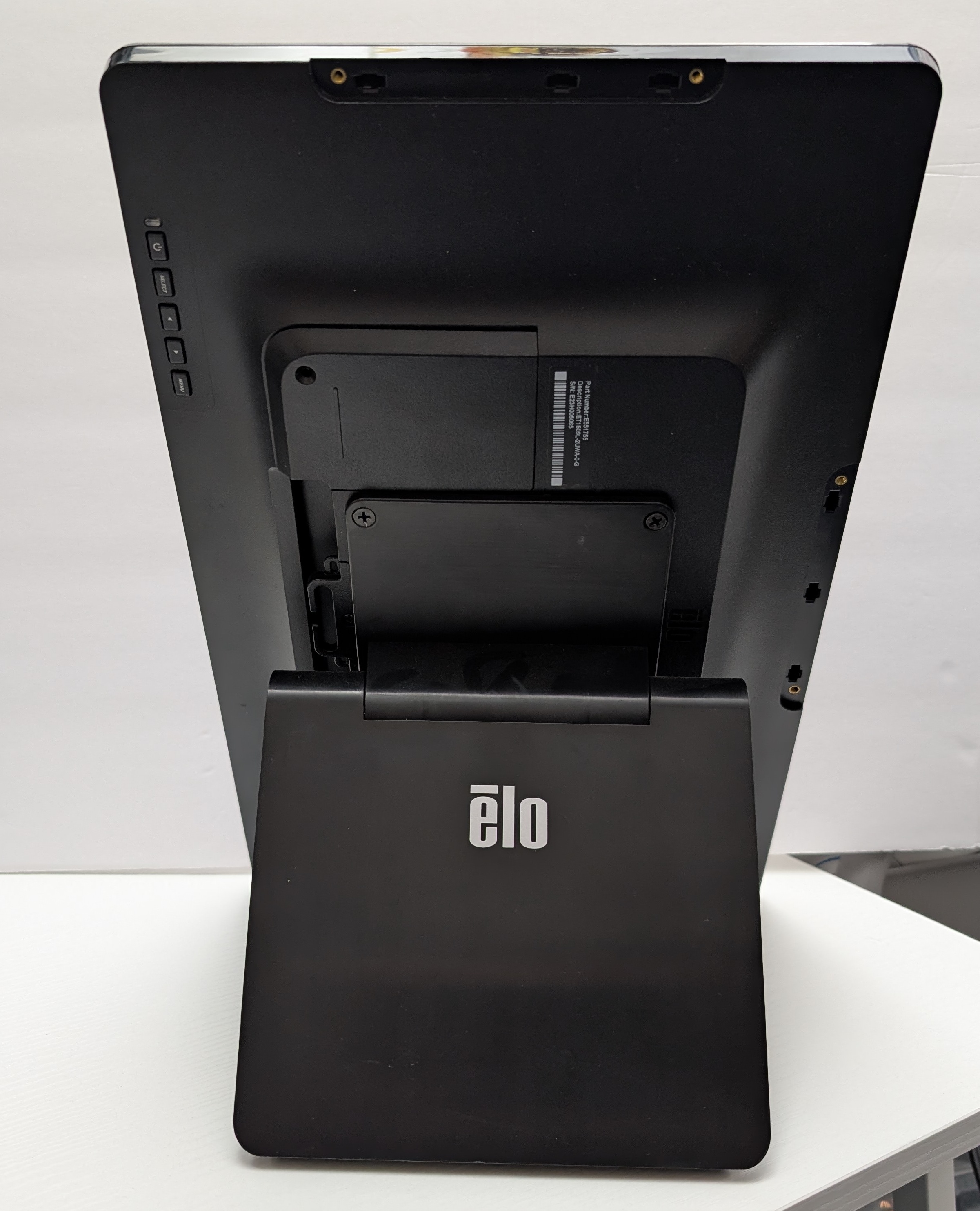

See the photos below for an example of the 1509L mounted in portrait mode on the original stand.
